Variable-Speed Pumps, DV/DVS Models
|
Installation & Operation Manual
Section 7. Product Specications and Technical Data
Exploded view for general reference only. Specic models may dier. Please refer to the contact information below to
obtain spare parts information for specic pump models. For a complete list of replacement parts, please visit www.
Jandy.com or contact Zodiac Technical Support at 1.800.822.7933 or email productsupport@uidra.com. In Canada,
please call 1.888.647.4004 or email customer.service@uidra.com.
7.1 Exploded Views
18
19
20
13
14
14
12
16
15
11
10
9
8
8
6
7
5
1
2
4
3
17
*Optional
Motor/Drive Exploded View
(Pump Models Ending in DVS)
20
1 - Motor, Drive
2 - Motor Hardware
3 - Fan Shroud
4 - Motor Mounting Foot
5 - Backplate Hardware
6 - Backplate
7 - Backplate O-Ring
8 - Impeller and Hardware
9 - Diffuser and Hardware
10 - Diffuser O-Ring
11 - Pump Body
12 - Locking Ring and O-Ring
13 - Pump Debris Filter Basket
14 - Tail Piece (2), O-Ring (2) and Union Nut (2)
15 - Mechanical Seal
16 - Drain Plug with O-Ring (2)
17 - Small adjustable base w/spacers (VSFHP Models Only)
18 - User Interface Bracket
19 - User Interface
20 - Liquid-Tight Cord Grip
* - Large Adjustable Base (Optional part # R0546400 for use with VSFHP
Models Only)

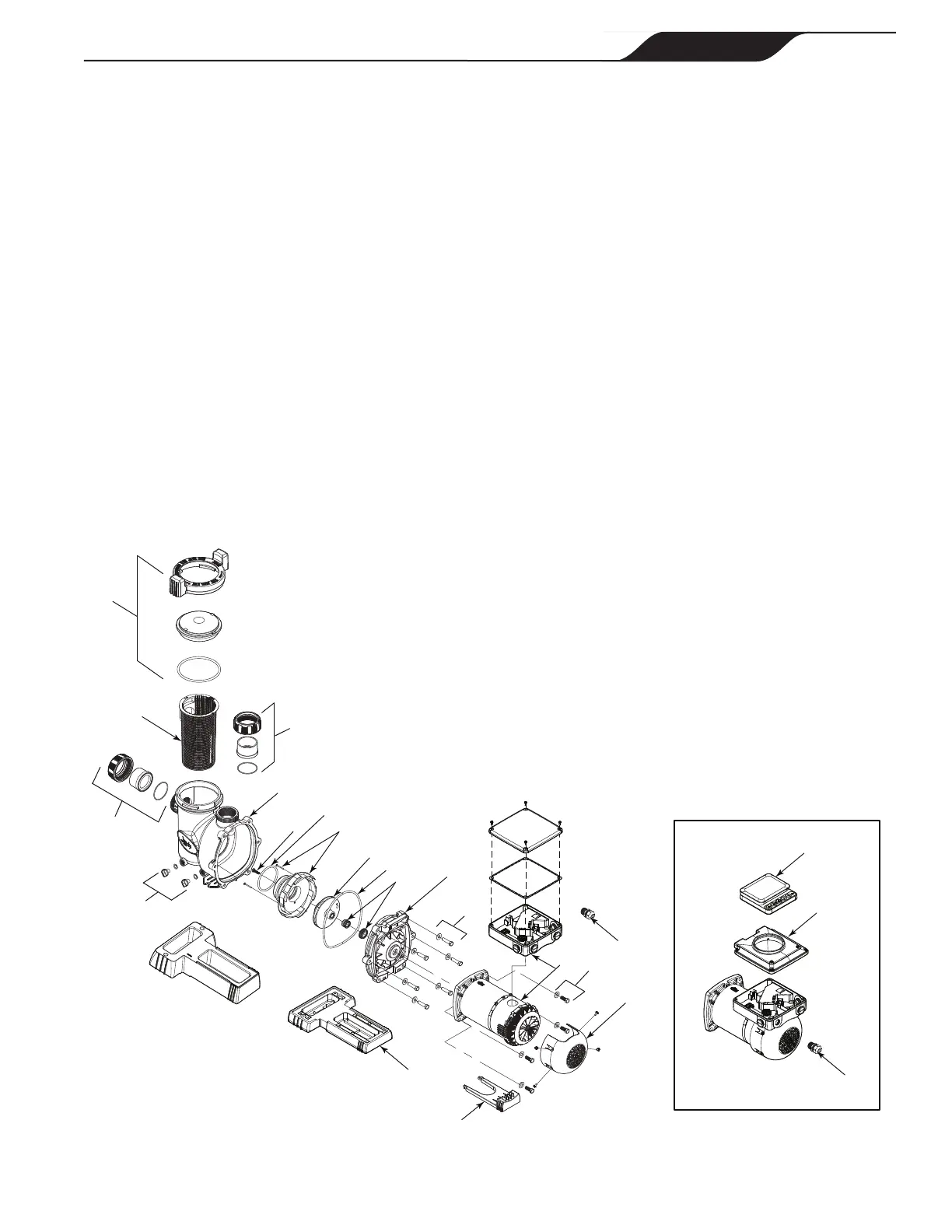

Figure 16. Jandy Variable Speed Pump Exploded View (Specic models may di󰀨er slightly
from illustration)
