7.2 Performance Curves
0
10
20
30
40
50
60
70
0 10 20 30 40 50 60 70 80 90 100 110 120
Total Dynamic Head (Feet of Water)
Flow Rate - Gallons per Minute (GPM)

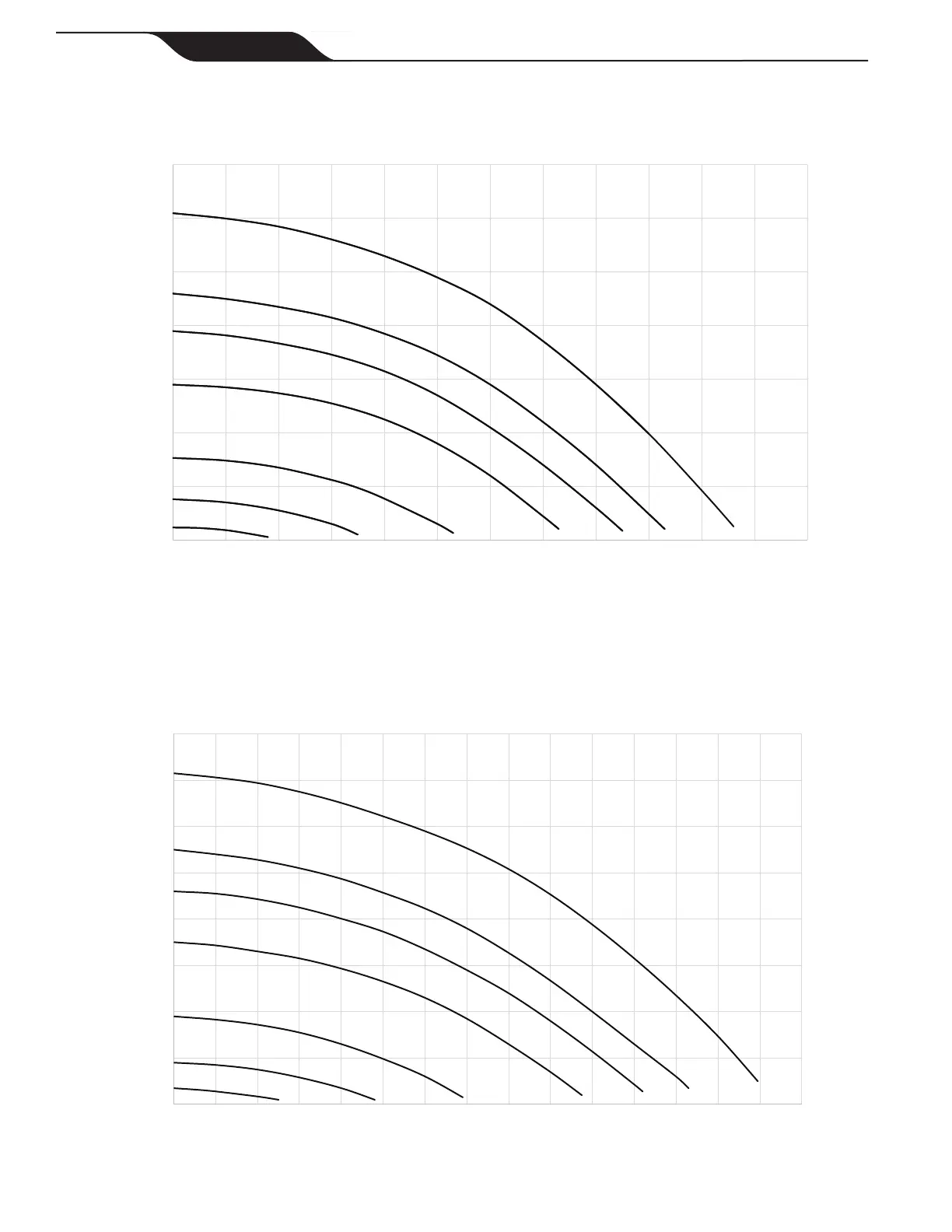

VSFHP130DV(S) Pump Curves - 115V/230V
3450 RPM
3000 RPM
2750 RPM
2400 RPM
1730 RPM
1200 RPM
600 RPM
0
10
20
30
40
50
60
70
80
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
Total Dynamic Head (Feet of Water)
Flow Rate - Gallons per Minute (GPM)
VSFHP165DV(S) Pump Curves - 115V/230V
3450 RPM
3000 RPM
2750 RPM
2400 RPM
1730 RPM
1200 RPM
600 RPM
