ENGLISH
Jandy
®
Variable-Speed Pumps
|
Installation & Operation Manual
Base
Configuration
Suction
Side
Height
Basket
Lid
Height
SpeedSet
Controller
Height
1. Pump without
Base
7 3/4” 12 3/4” 14 1/8"
2. Pump with
Base
8 7/8" 13 7/8” 15 1/4"
3. Pump with
Base and Spacers
9 1/8” 14 1/8” 15 1/2"
4. Pump with
Small + Large
Base
10 3/4” 15 3/4” 17 1/8"
Table 2. Adjustable Base Dimensions
(VS FloPro
TM
Models Only)

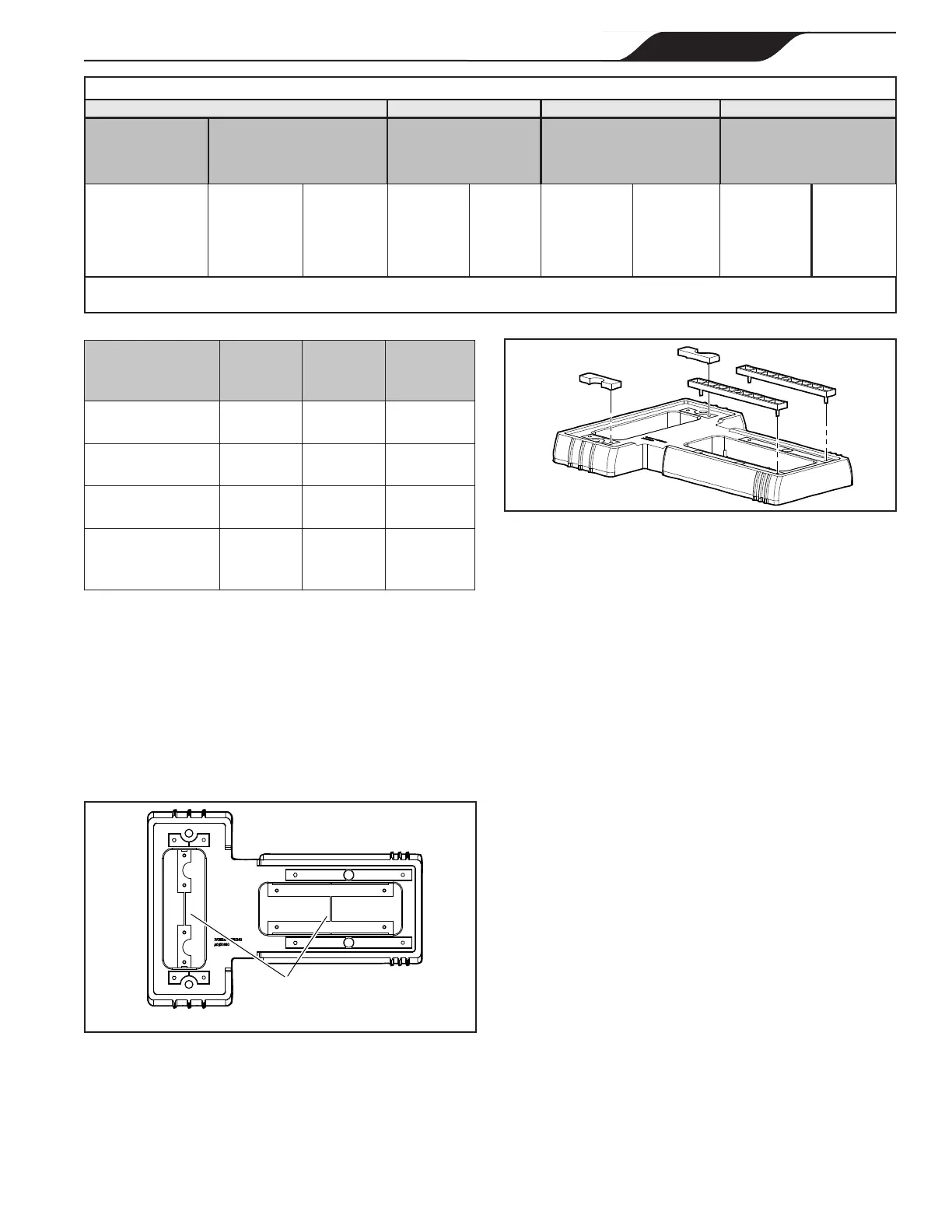

1. Using a hand cutter tool, cut the plastic bars
connecting the top and bottom sets of spacers, as
shown in Figure 6.
2. Push the two top spacers and two bottom spacers
out of the base.
3. Align the pins in the four spacers with the holes in
the base. Snap the spacers into place (Fig. 7).
X
X
Cut
spacers
at X.
Figure 6. Cut Sets of Spacers Out of Base
MINIMUM WIRE SIZE AND MINIMUM OVERCURRENT PROTECTION*
Distance from Sub-Panel 0-50 feet (15 meters) 50-100 feet (15-30 meters) 100-200 feet (30-60 meters)
Pump Model
Inverse - Time Circuit Breaker
or Branch Fuse AMPs
Class: CC, G, H, J, K, RK, or T
Voltage Voltage Voltage
230 VAC 115 VAC 230 VAC 115 VAC 230 VAC 115 VAC 230 VAC 115 VAC
VSFHP185DV2A(S)
VSFHP270DV2A(S)
VSPHP270DV2A(S)
VSSHP220DV2A(S)
VSSHP270DV2A(S)
15A 20A
14 AWG
(2.1mm
2
)
12 AWG
(3.3mm
2
)
12 AWG
(3.3mm
2
)
10 AWG
(5.3mm
2
)
10 AWG
(5.3mm
2
)
10 AWG
(5.3mm
2
)
*Assumes three (3) copper conductors in a buried conduit and 3% maximum voltage loss in branch circuit. All National Electrical Code
®
(NEC
®
) and
local codes must be followed. Table shows minimum wire size and branch fuse recommendations for a typical installation per NEC.
Figure 7. Snap Spacers into Place
3.3 Electrical Installation
3.3.1 Voltage Checks
The correct voltage, as specied on the pump data plate,
is necessary for proper performance and long motor
life. Incorrect voltage will decrease the pump’s ability to
perform and could cause overheating, reduce the motor life,
and result in higher electric bills.
It is the responsibility of the electrical installer to provide
data plate operating voltage to the pump by ensuring
proper circuit sizes and wire sizes for this specic
application.
The National Electrical Code
®
(NEC
®
, NFPA-70
®
)
requires all pool pump circuits be protected with a
Ground Fault Interrupter (GFCI). Therefore, it is also
the responsibility of the electrical installer to ensure that
the pump circuit is in compliance with this and all other
applicable requirements of the National Electrical Code
(NEC) and any other applicable installation codes.
All variable-speed pumps, regardless of brand, make
or model, are prone to create nuisance trips on GFCI
breakers. Siemens
®
QFP or QF series GFCI breakers
are highly recommended to minimize or eliminate these
occurrences and oer 5 milliamp personal protection
while meeting 2008 to current NEC standards for pool
pumps.
