Prophi
®
12R / 12 RS
29
LAN-cable (CAT5/CAT6)
LAN-cable (CAT5/CAT6)
LAN-cable (CAT5/CAT6)
LAN-cable (CAT5/CAT6)
Adapter
CV-1xRJ45-BR6000
Adapter
CV-1xRJ45-BR6000

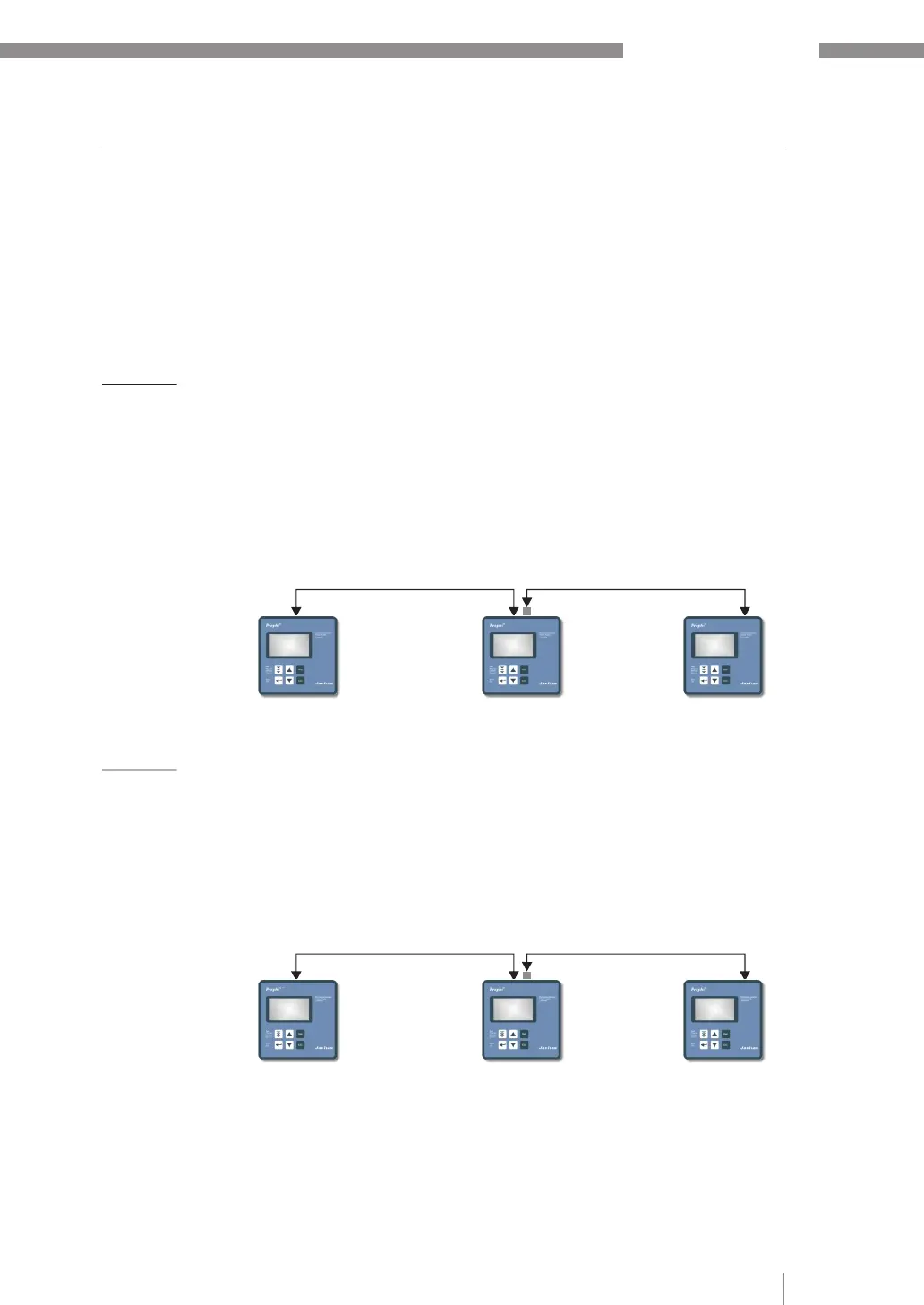

Application: Mixed dynamical compensation system and cascading controllers
Variant 1:
Hybrid-system with one dynamical and 1...2 standard PF-controllers up to 36 outputs
Prophi 15T III Prophi 12RS Prophi 12RS
Variant 2:
Extended systems with up to 48 outputs by cascading of 2...4 pcs. Prophi 12RS
(all controllers will switch symmetrically)
Programming in menu “INTERFACE”
10 PROTOCOL com1:[Master Mode] [Slave Mode] [Slave Mode]
11 BAUDRATE com1:[38400/NONE] [38400/NONE] [38400/NONE]
12 ADRESS com1: [1] [2]
15 NUMBER: [2] (1...3)
Prophi 12RS Prophi 12RS Prophi 12RS
A mixed dynamical compensation system implements economically the advantages of a dynamic fast
network. (Fast changing loads are compensated dynamically and basic loads / slowly changing loads
are compensated conventionally)
For designing a mixed-dynamical compensation system a special controller is available:
The Prophi 12TRS supports up to 12 transistor-outputs (for triggering thyristor modules) and
additional 12 relay-outputs for standard capacitor contactors. It supports also triggering of up to 32
thyristor-switches TSM-LC-S in a network for bigger dynamical systems.
Please compare the separate manual.
In case more than 12 dynamical and 12 conventional stages or more than 12 standard-stages are
required, the following applications are supported.
Prophi 15T III (3-phase) up to 2 Prophi 12RS
(for dynamical steps) (for conventional steps)
Menu: PROGRAMMING Menu: INTERFACE
2 CONTROL-MODE: 7...14 Protocol: [Slave Hybrid]
Baudrate: [38400/NONE]
Adress:[1] Adress:[2]
