2.1 Current measurement
When installing the current converter, care should be taken to ensure that the load
current and capacitor-current flows through it. The outputs of the compensation network
must be installed behind the current converter (in the direction of current flow). If the
device is connected up via sum-current converters, the overall conversion ratio is
entered.

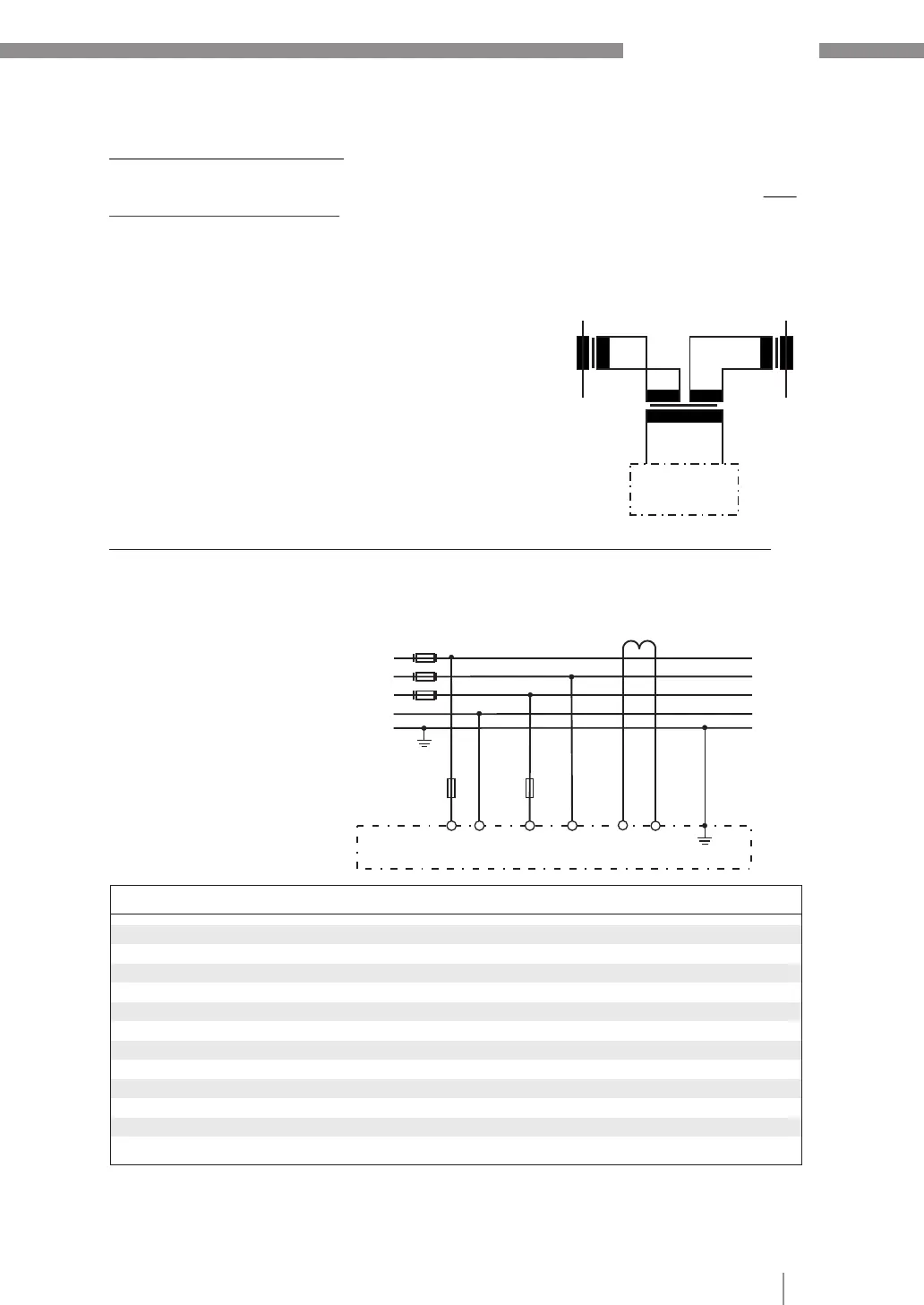

2.2 Programming of phase-correction - e.g. connection directly L-L (400V)
Adjustment of phase-correction between voltage and current in the meas. system is done
in expert mode 1
Example :
Meas.current: L1
Meas. voltage: L3-L2
Phase U/I [ 90°]
- 6 -
L1 ( R)
L2 ( S)
L3 ( T)
N
Me as.cu rrent
su pply-
vo ltage
Vb
me as. -
vo ltage
L2 -L3
k l
T 2A T 2A
PE
Ub Um Im
(L) (N) L3 L2 k l
using meas. current meas. voltage phase-angle
Preset: L1 L1 - N 0°
L1 L1 - L2 30°
L1 (k<->l) L2 - N 60°
L1 L3 - L2 90°
L1 L3 - N 120°
L1 L3 - L1 150°
L1 (k<->l) L1 - N 180°
L1 (k<->l) L1 - L2 210°
L1 L2 - N 240°
L1 L2 - L3 270°
L1 (k<->l) L3 - N 300°
L1 (k<->l) L3 - L1 330°
kK k K
lL l L
Feed 1 Feed 2
K L K L
Measurement via sum current converter
Current
measurement
k l
k l
Example:
C.converter 1: 1000/5A
C.converter 2: 1000/5A
Sum-current converter: 5A+5A/5A
C.converter ratio is: 2000/5A
