Prophi
®
12R / 12 RS
31
AUTO MODE
------------------
cos 0.987 IND
1 2 3 4 5 6 7 8 9 10 11 12
j
A
A
A
2
2
F
F
U
U
H
H
OC
OC
IND
IND
CAP
CAP
MASTER
MASTER
SLAVE
SLAVE
UC
UC
ME
ME
M

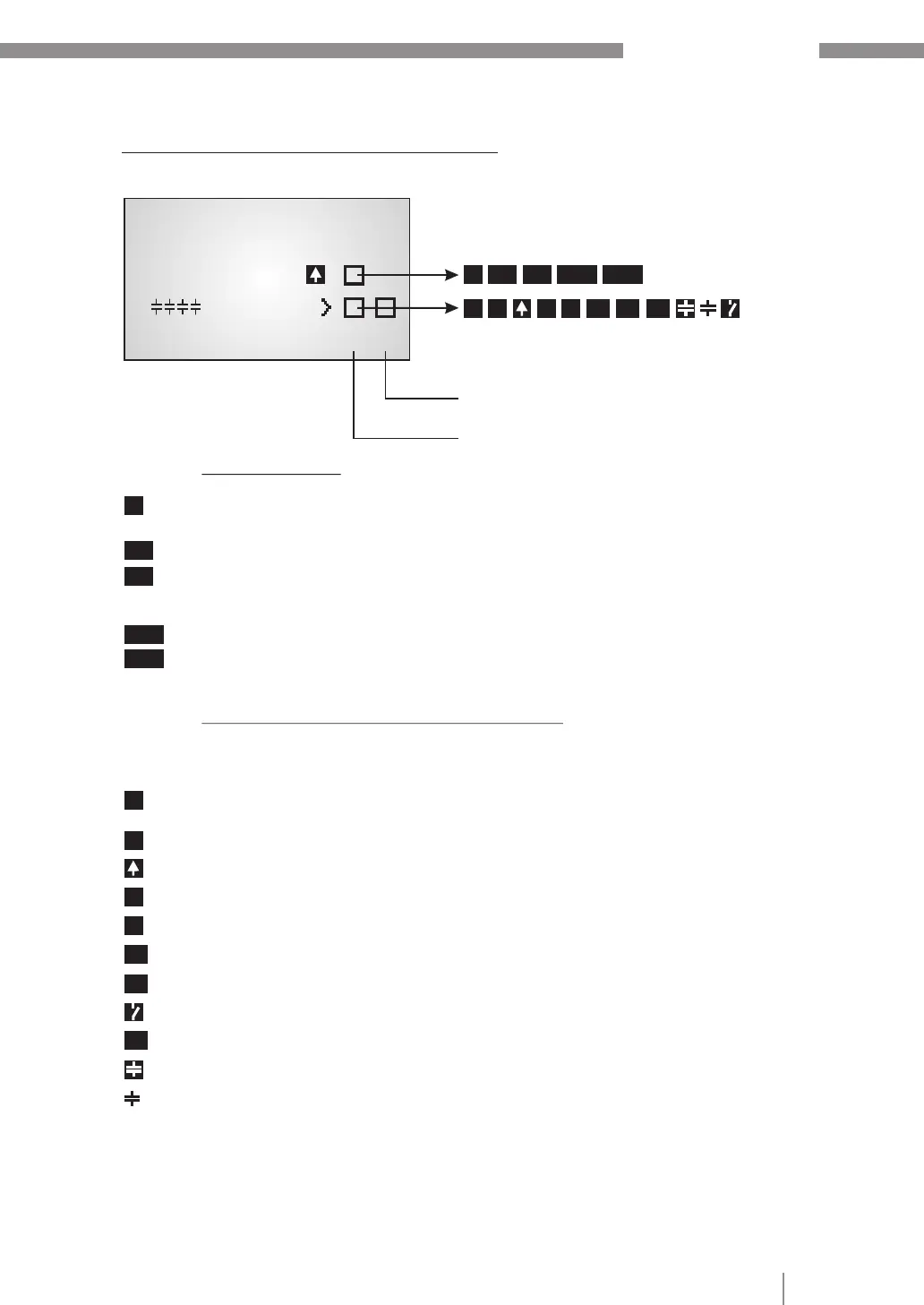

Alarm- and status messages in the display
Message relay was parameterized with a function
(only version /RS)
Message occurs in case of error resp.
relay is active (s.table)
Status indication (s.table)
Alarm relay has been parameterized with a function
Display of status:
2. parameter set active
Display of present controller status in case a mixed compensation CAP/IND
(Switching of capacitive or inductive steps)
See ExpertMode 1: 19 CONTROL
In case of controller coupling or extension of systems (several controllers)
according to the applications shown in applications page 27/28 the respective
message is displayed (Master/Slave) as soon as the connection has
successfully been established and the communication works without fault.
Display of alarm and message relay functions
Programming of alarm relay in: PROGRAMMING: 14 ALARM RELAY
Programming of message relay in: INTERFACE: 1 MESSAGE RELAY
Display of error summary report
(relay programmed as ERROR resp. ERROR inverse)
Display FAN-ON (relay programmed : „FAN“)
Display SUPPLY real power (relay programmed: „SUPPLY“)
Display UNDERCURRENT
HARMONICS
OVERCOMPENSATED
UNDERCOMPENSATED
SWITCHING OPERATIONS (number of programmed switch. oper. exceeded)
MODBUS-ERROR or MMI-ERROR
C-DEFECT
13. step (programming only possible for the alarm-relay)
