Basic functions quick guide
Adjusting the current transformer
Switch to the programming mode:
• Press button 1 and 2 simultaneously for around 1 se-
cond to switch to the programming mode. The sym-
bols for the programming mode PRG and the current
transformer mode CT appear on the display.
• Press button 1 to confirm the selection.
• The first digit of the input field for the primary current
is flashing.
Adjusting the primary current
• Press button 2 to change the flashing digit.
• Press button 1 to select the next digit to be chan-
ged. The selected digit to be changed is flashing.
If the entire number is flashing, press button 2 to move
the decimal point.
Adjusting the secondary current
• Only 1A or 5A can be set as secondary current.
• Press button 1 to select the secondary current.
• Press button 2 to change the flashing digit.
Exit programming mode
• Press button 1 and 2 simultaneously for around 1 se-
cond to switch to the display mode.
View measured values
Switch to the display mode:
• If you are still in the programming mode (PRG and
CT icons displayed on the screen), press button 1
and 2 simultaneously for around 1 second to switch
to the display mode.
• A measured value display (e.g. voltage) appears

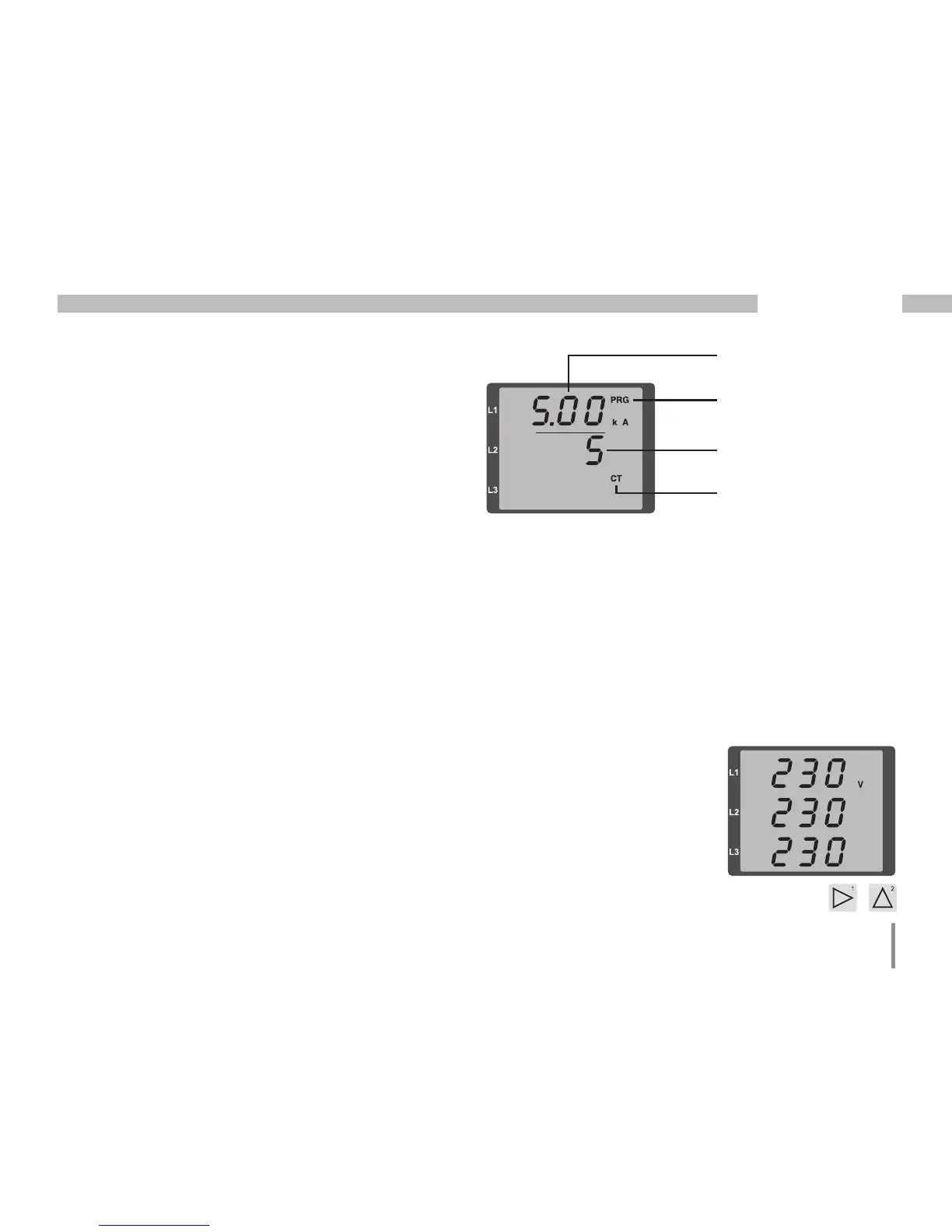

Current transformer symbol
(in the programming mode
only)
Adjusting current transformer,
primary current
Display
Programming mode
Adjusting current transfor-
mer, secondary current
Button controls
• Press button 2 to change
the measured value dis-
play for current, voltage,
power, etc.
• Press button 1 to change
the mean values, max. va-
lues etc. associated with
the measured value.
