Page 32 = Peak value = Minimum value = Supply
Brief instructions
Pressing the keys 1 and 2 for about 1 second, you reach programming
m
ode.
If you are in programming mode, you return to indicating mode by
pressing keys 1 and 2 for about 1 second.

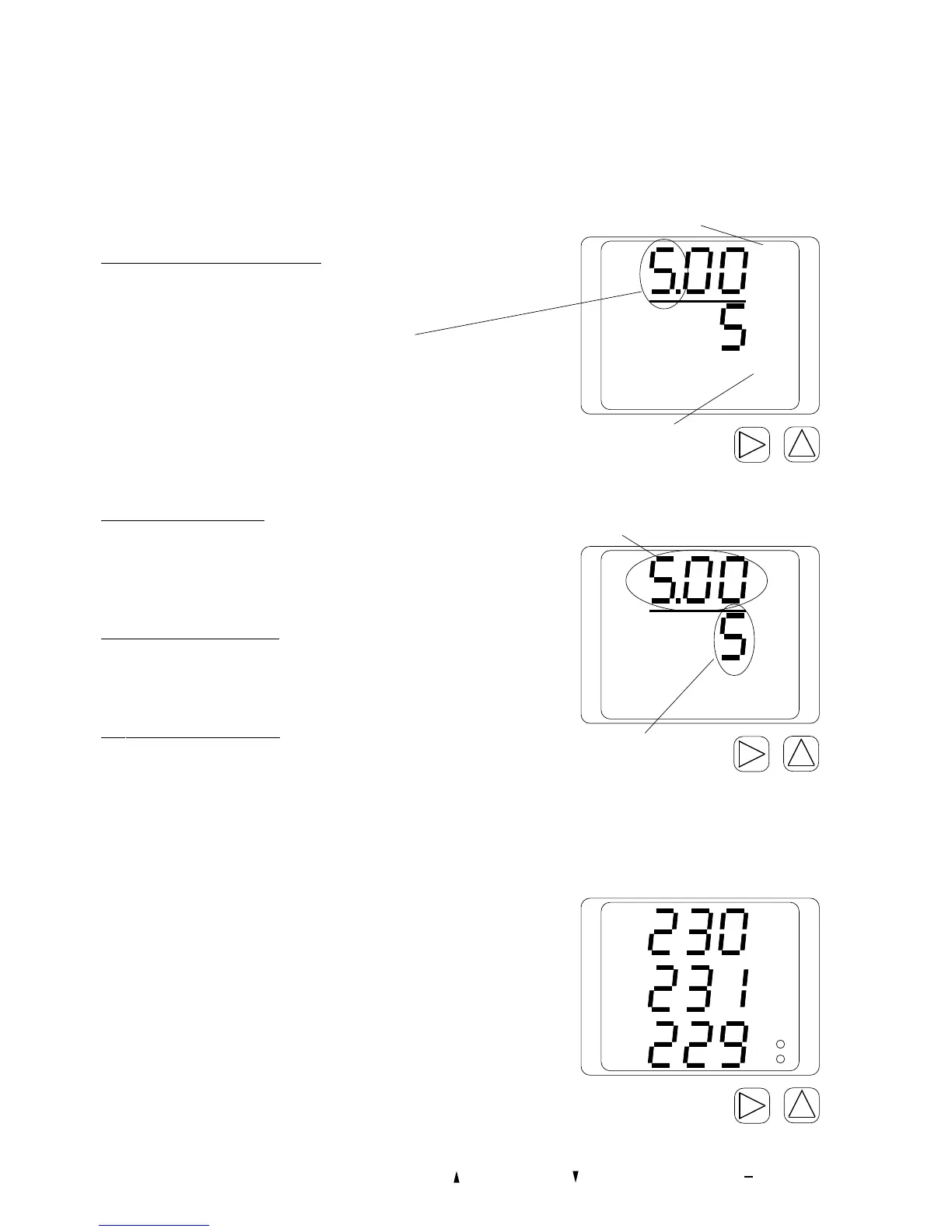

Programming of current transformer
Select current transformer menu:
Press both keys simultaneously for about 1 second. The symbols for
programming mode PRG and the current transformer CT appears.
Confirm with key 1.
The first cipher of primary current is flashing.
Change primary current:
Change the flashing cipher with key 2.
Select the next cipher to be changed with key 1.
The selected cipher is flashing.
If the whole number is flashing, the decimal point can be moved.
Change secondary current:
Only 1A or 5A can be set as secondary current.
Select secondary current with key 1.
Change cipher with key 2.
Leave programming mode:
Press both keys for about 1 second.
The current transformer setting is saved and you return to indication
menu.
Call up measured values
The measured values indications can only be called up, when the
symbol PRG for programming mode is not in the display.
With the keys 1 and 2 you can leave through the measured values.
When the device is delivered, all measured values you find in table 1
can be called up.
If you are in programming mode and do not press a key within 60
seconds, the device returns to indication mode automatically.
V
L1
L2
L3
K1
K2
1
2
PRG
k A
L1
L2
L3
CT
Primary current
Secondary current
12
Current transformer
symbol
Programming mode
PRG
k A
L1
L2
L3
CT
12
