janitza UMG 96S User Manual

Page 11
Version 2

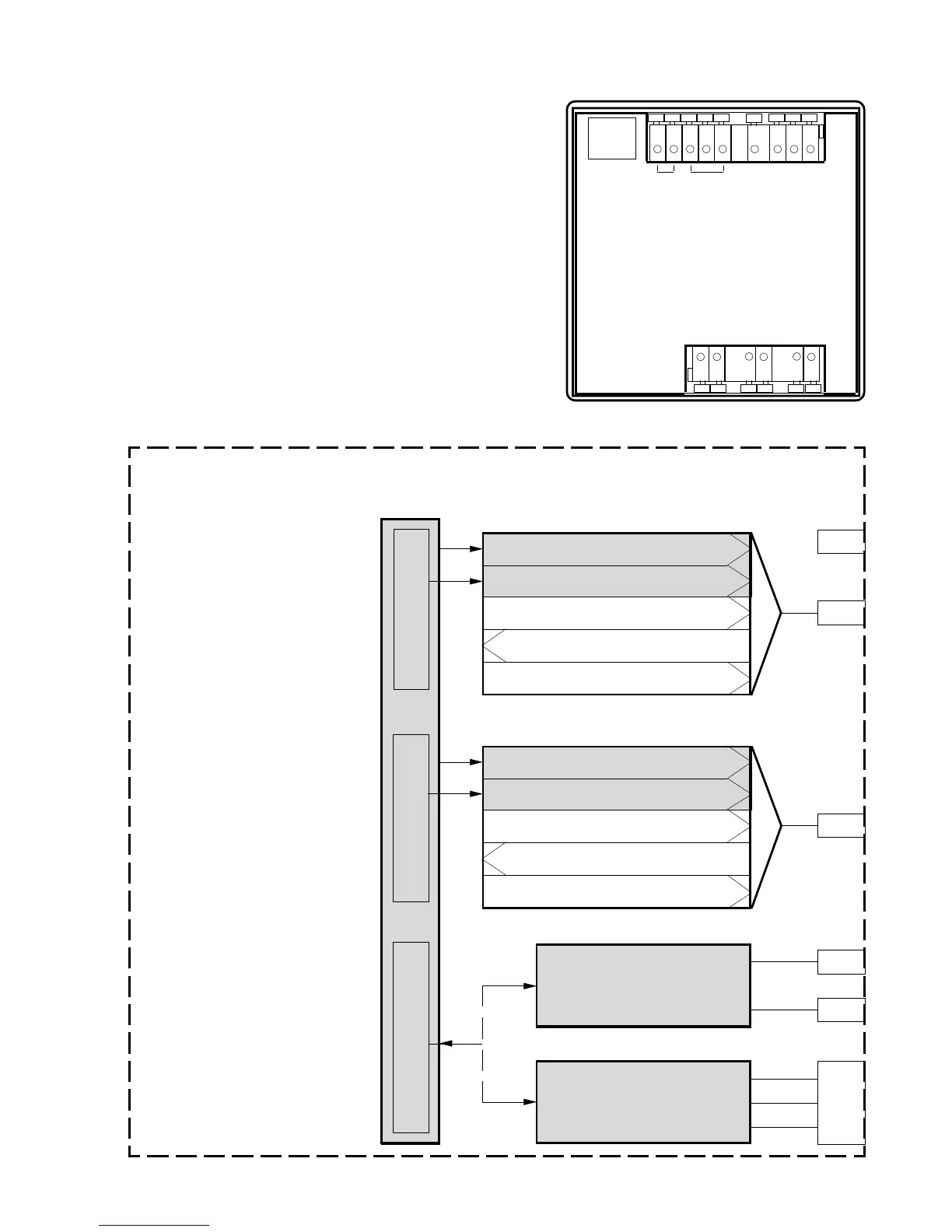

Version 2 contains the following functional
groups:
RS232 (MODBUS RTU)
RS485 (MODBUS RTU)
Input/Output
Pulse output 1 (Wp=real energy)
Pulse output 2 (Wq=reactive energy)
Digital output 1
Digital output 2
UMG96S
12
13
11
RJ11
Sleeve
14
15
TXD
GND
RXD
TXD
RXD
Input/Output 2 (003)
Pulse output Wq (003 = 0)
Digital output (003 = 1)
Analog output (003 = 2)
Digital input (003 = 3,5)
Profibus-Remote (003 = 4)
Input/Output 1 (002)
Pulse output Wp (002 = 0)
Digital output (002 = 1)
Analog output(002 = 2)
Digital input (002 = 3,5)
Profibus-Remote (002 = 4)
Comparator group 1
Comparator group 2
Basic PCB
RS485 (MODBUS RTU)
Interface
RS232 (MODBUS RTU)
Interface
Serial interface
R
S232
RS485
Current measurement
15
14
13 12
11
10
8
7 9
1
3 2
4
6
5
I / O
Measurement
and operating
voltage
Art.Nr.
52.13.005
52.13.006
52.13.007
52.13.008
