janitza UMG 96S User Manual

Page 10

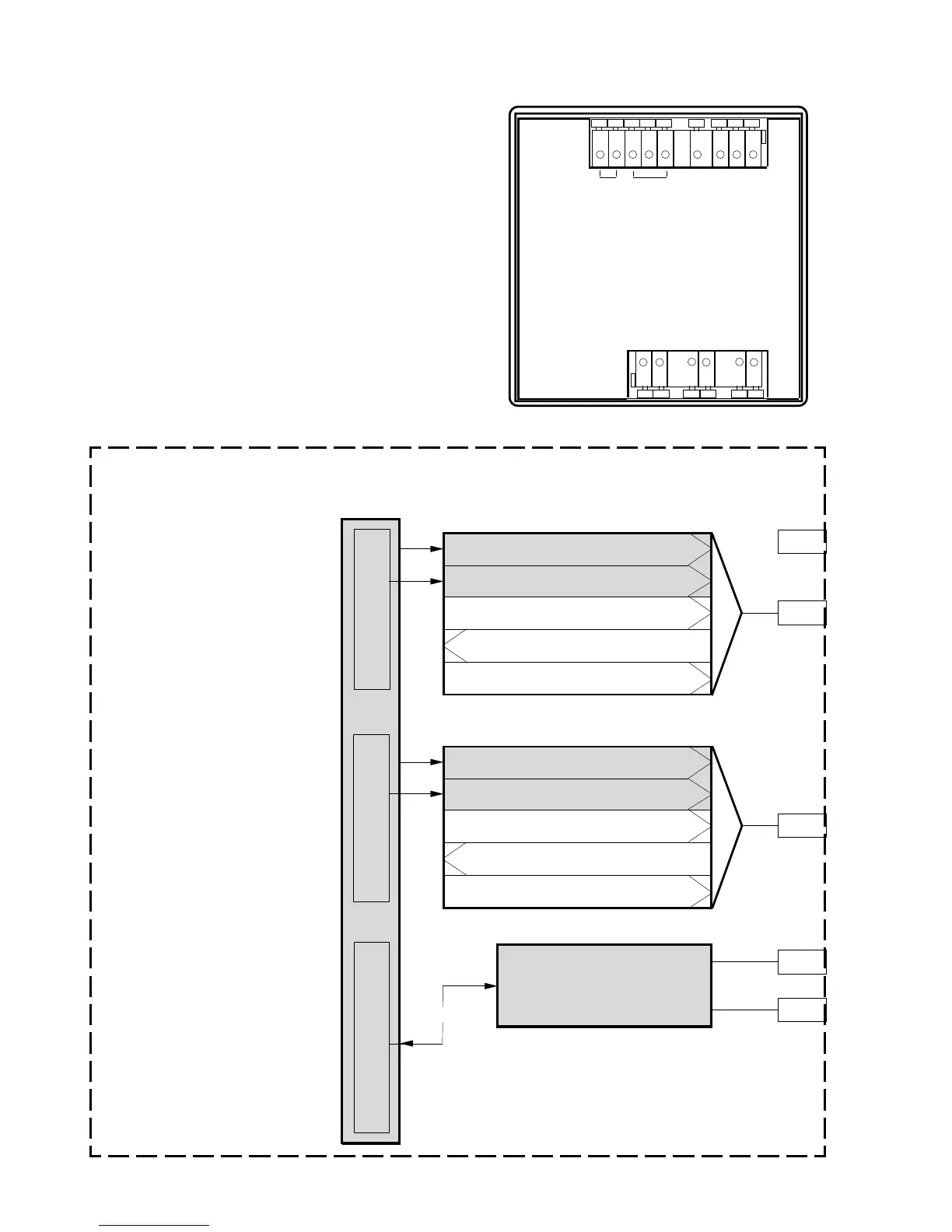

Device versions
The UMG96S can be delivered in different ver-
sions. The customer can assign a function to the
clamps 11, 12 and 13 of UMG96S.
Version 1
Version 1 contains the following functional
groups:
RS485 (MODBUS RTU)
Input/Output
Pulse output 1 (Wp=real energy)
Pulse output 2 (Wq=reactive energy)
Digital output 1
Digital output 2
UMG96S
12
13
11
14
15
TXD
RXD
Input/Output 2 (003)
Pulse output Wq (003 = 0)
Digital output (003 = 1)
Analog output (003 = 2)
Digital input (003 = 3,5)
Profibus-Remote (003 = 4)
Input/Output 1 (002)
Pulse output Wp (002 = 0)
Digital output (002 = 1)
Analog output(002 = 2)
Digital input (002 = 3,5)
Profibus-Remote (002 = 4)
Comparator group 1
Comparator group 2
RS485 (MODBUS RTU)
Interface
Serial Interface
Basic PCB
RS485
Current measurement
15
14
13 12
11
10
8
7 9
1
3 2
4
6
5
I / O
Measurement
and operating
voltage
Art.Nr.
52.13.001
52.13.002
52.13.003
52.13.004
