37
Mechanical Adjustment
MODEL: AirThread 2000D

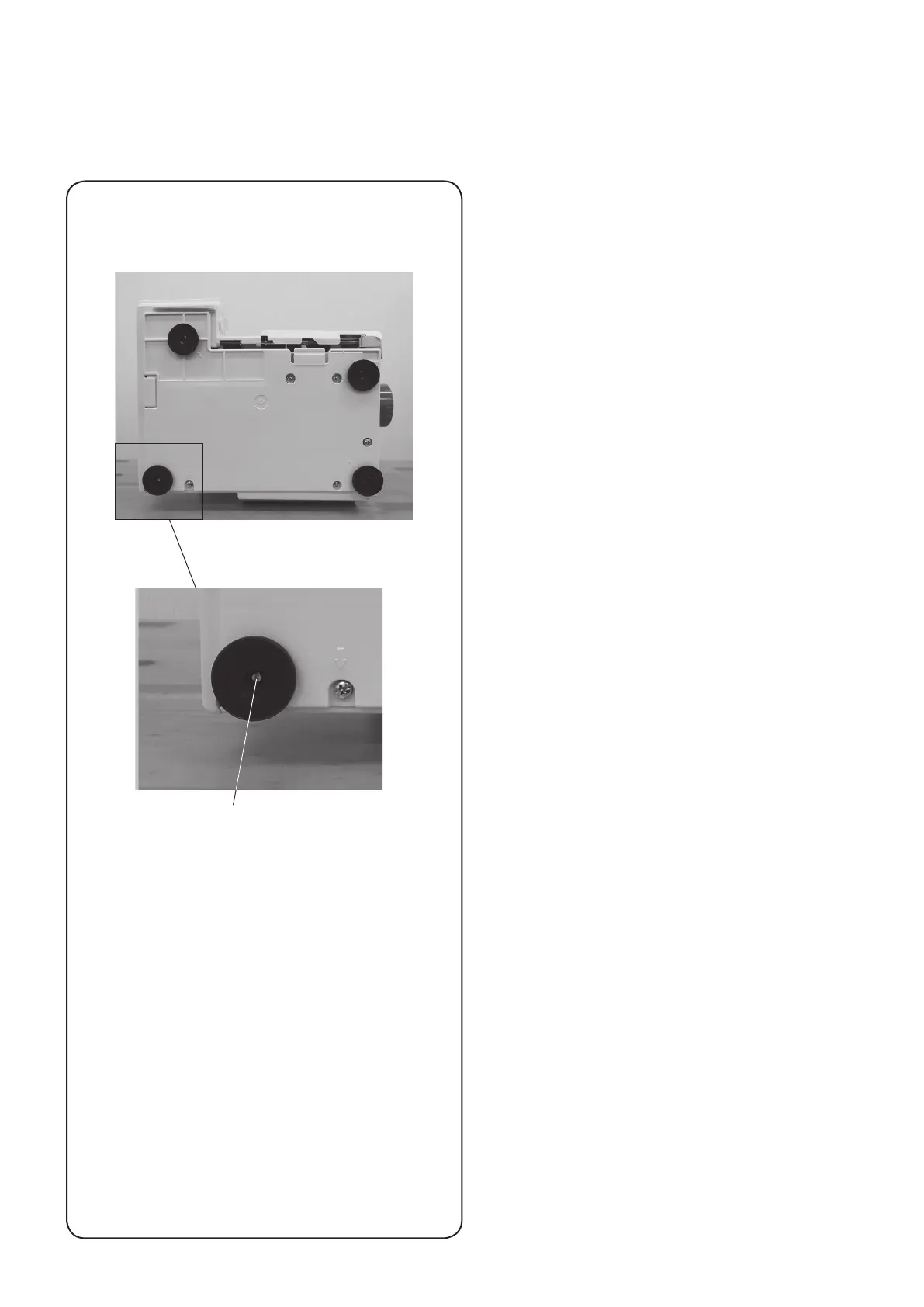

To adjust the height of the rubber sole (rear left)
The adjustable rubber sole (rear left) is 0.6 mm higher (above the level) than the other 3 rubber soles.
To check:
1. Place the machine with the rear cover down.
2. Insert a screwdriver into the slit of the adjusting screw
of the real left rubber sole. Tighten the screw and
loosen the screw by a quarter rotation.
The height should be 0.6 mm above the level of the
other 3 rubber soles.
3. Place the machine upright. Check if the 4 rubber soles
are level. Check the vibration of the machine while
running.
Adjusting screw
