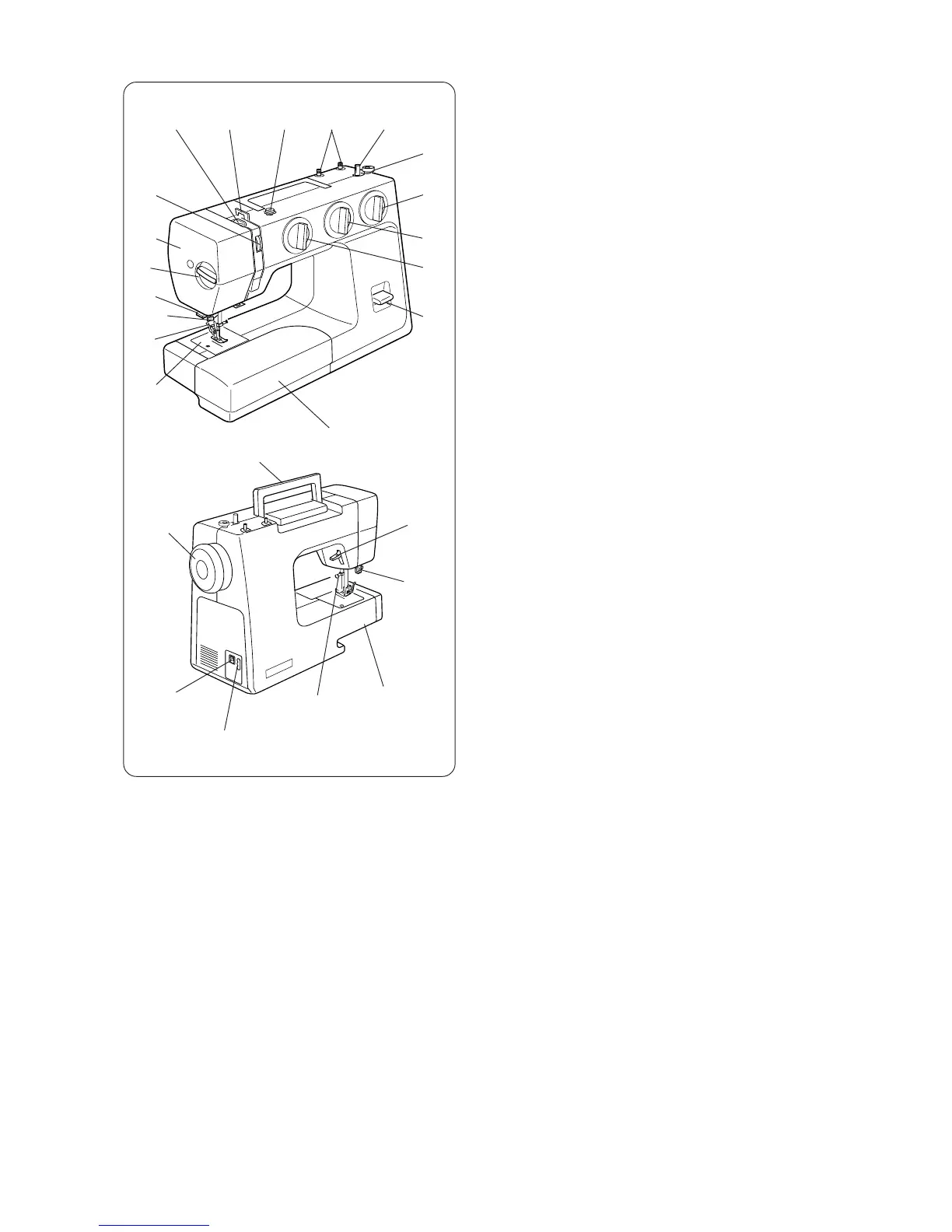

SECTION I ESSENTIAL PARTS
Names of Parts
q
Reverse stitch button
w Pattern selector dial
e Stitch length dial
r Stitch width dial
t Bobbin winder stopper
y Bobbin winder spindle
u Spool pins
i Bobbin winder thread guide
o Thread guide
!0 Thread take-up lever
!1 Thread tension dial
!2 Face plate
!3 Pressure ajusting dial
!4 Thread cutter
!5 Needle threader
!6 Presser foot holder
!7 Needle plate
!8 Extension table
!9 Carrying handle
@0 Handwheel
@1 Power switch
@2 Machine socket
@3 Needle clamp screw
@4 Free arm
@5 Presser foot lifter
@6 Buttonhole lever
!0 o
i
u
y
t
r
e
w
q
!1
!2
!3
!4
!5
!6
!7
@3
@4
!8
!9
@0
@1
@2
@5
@6
