43
III. DISMANTLING AND ASSEMBLING WITHOUT THE AID OF SPECIAL TOOLS
1. REMOVING THE FRONT WHEEL
Slacken the brake cable, unscrew the spindle nut and remove the spring washer.
Slacken the tightening screw on the L.H. slider bottom end. Remove the spindle
and the wheel.
When assembling after pushing home the spindle, putting the spring washer into
position (it must not be forgotten!) and having placed the lock nut depress and
release the front fork several times. Only then tighten the lock nut and L.H. slider
bottom end with the screw. Check the suspension once more. Fit the brake cable
and adjust the brake so as to allow free rotation of the wheel.

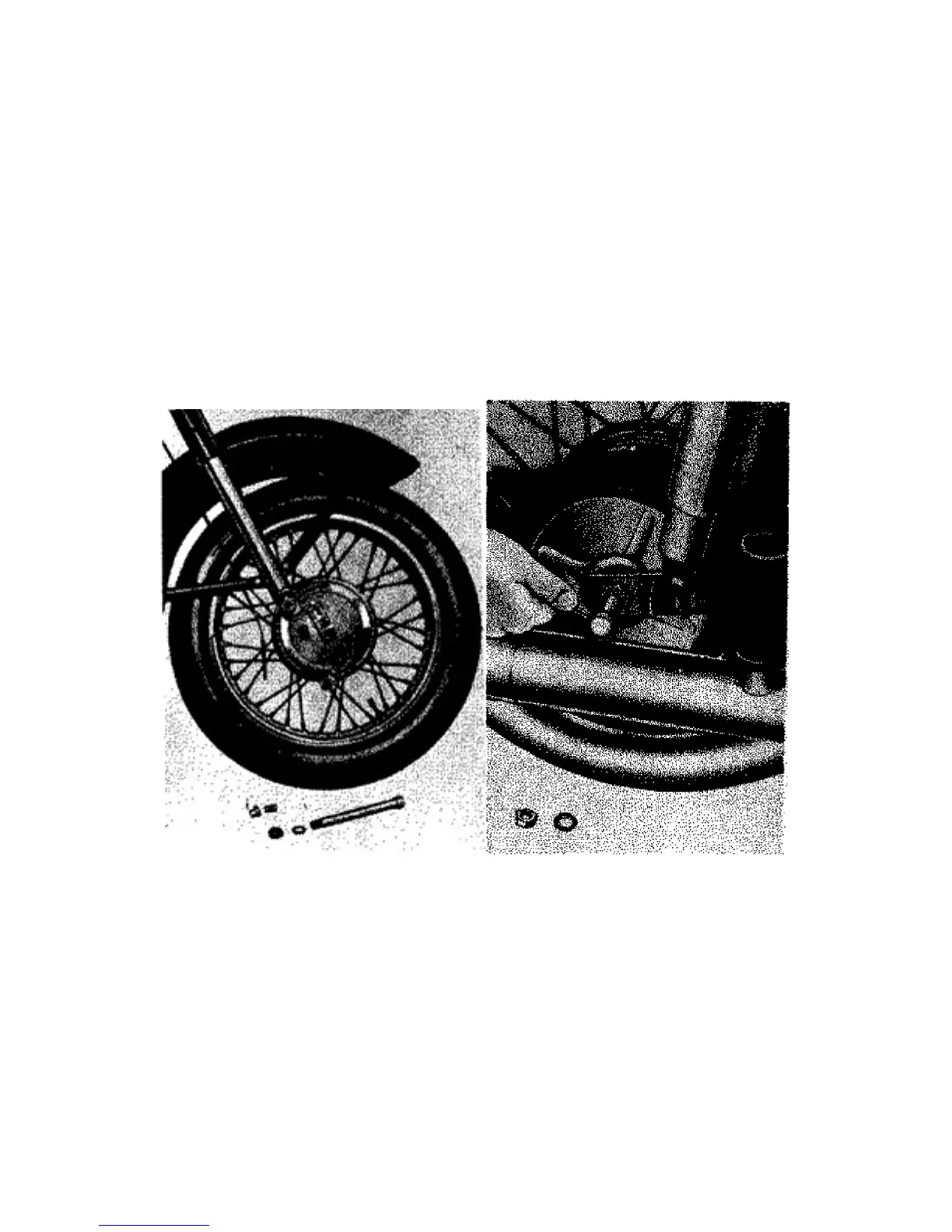

Fig. 24 Removing the front wheel Fig. 25 Taking out the rear wheel spindle
