Remove the top nacelle after releasing the catches inside the nacelle
and unscrewing the speedometer drive union nut.
Remove the bottom nacelle after removing the handlebars (see pars
12), disconnecting the leads and the clutch cable, unscrewin g th e
stee rin g h ea d nu t (41 ) an d un sc rew in g th e p lug screws (32).
Remove now the fork head lug and the bottom nacelle can be pushed
out.
II. DISMANTLING THE STEERING HEAD AND FORK LEGS
Remove first the top nacelle, handlebars, unscrew the nuts (41) and
(32) and release the fork head lug by tapping. By using a special box
spanner partly unscrew the nut holding the bearing cup. In this manner it
is possible to lubricate the top.

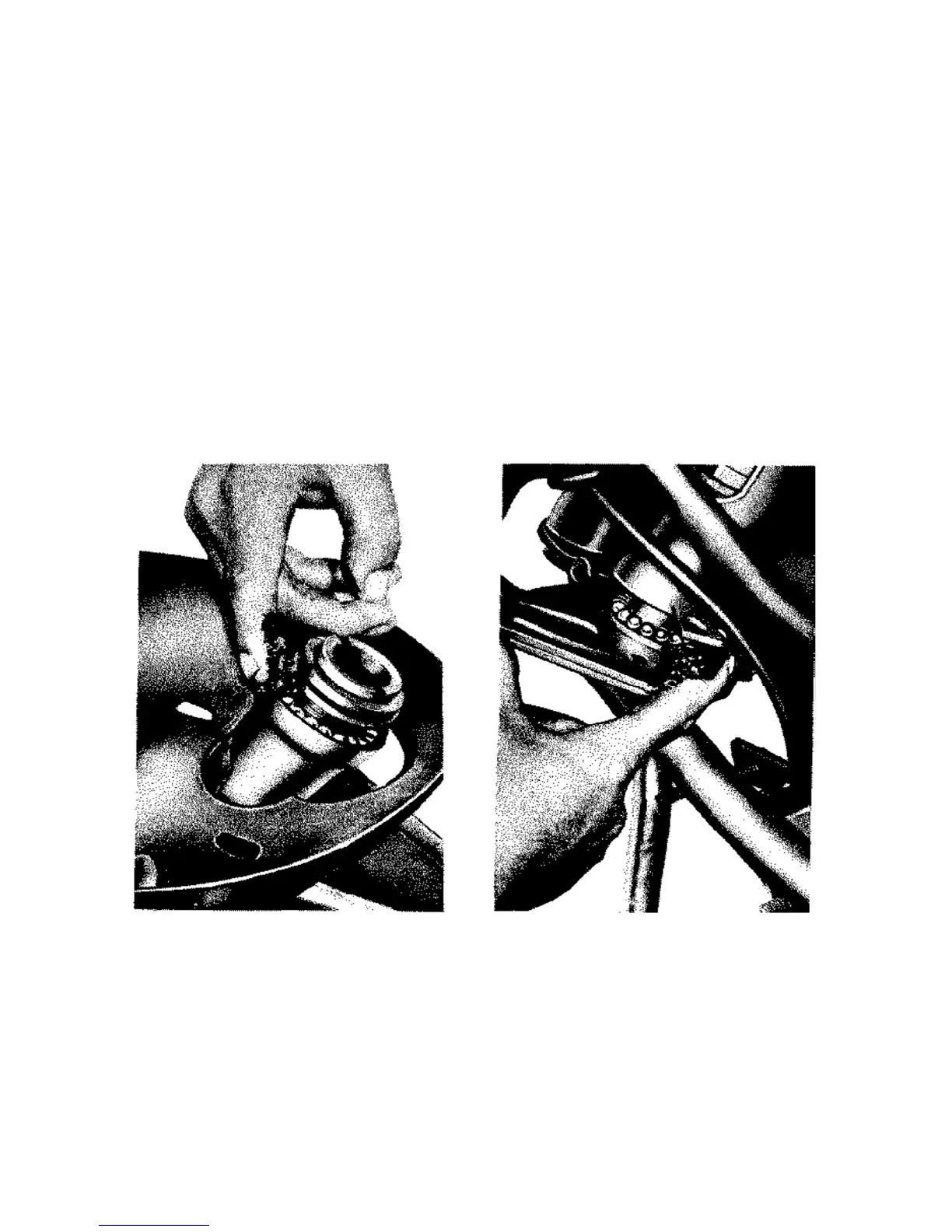

Fig. 35 Lubricating the steering head Fig. 36 Lubricating the steering head
