58
8. REMOVING THE BATTERY
Open the L. H. side box and remove the fuse case from its holder thus
disconnecting one lead and disconnect the order lead (earthing + pole) by
unscrewing the nut (10) and pushing the washer off the earthing screw. Pull down
the securing strap and remove the battery.

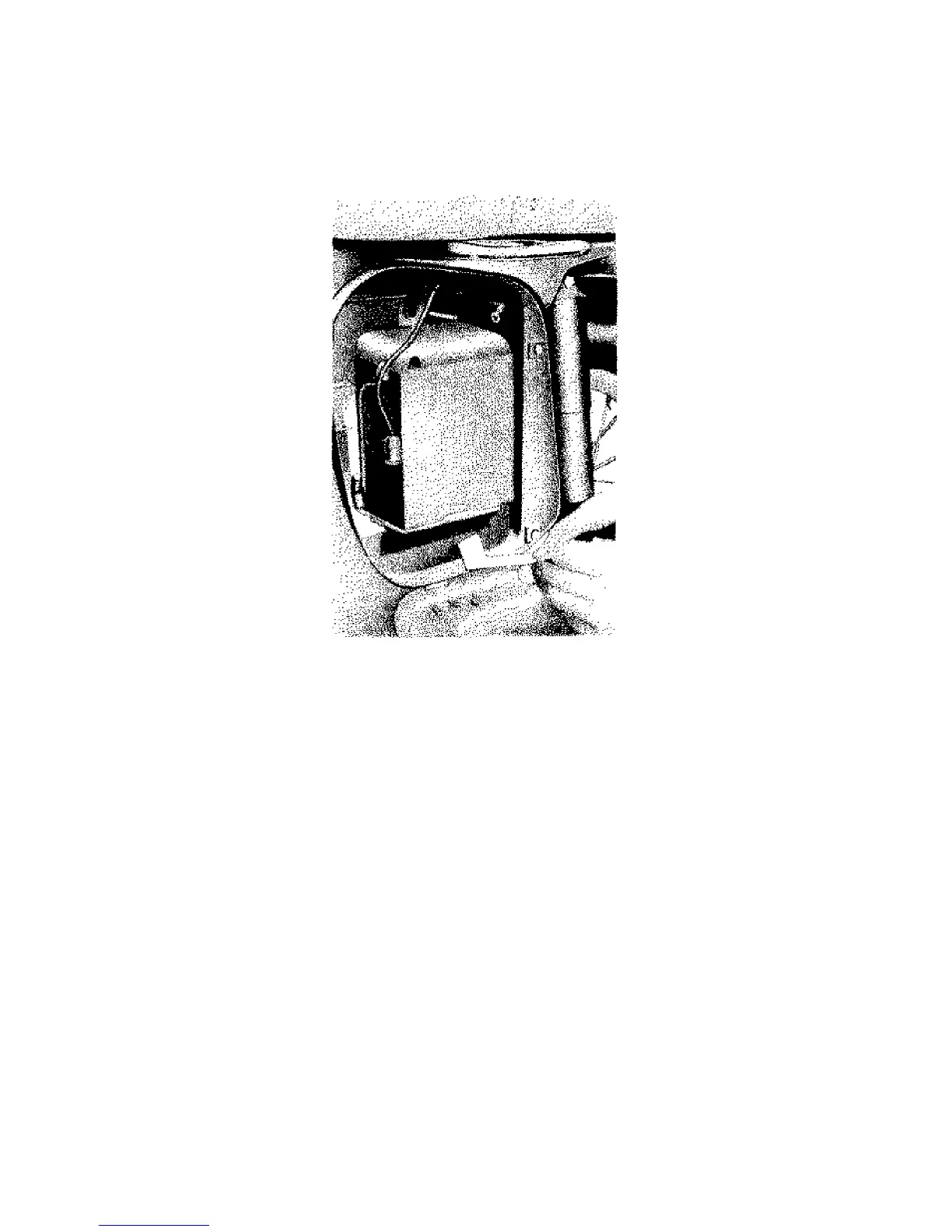

Fig. 41 Removing the battery
19. DISMANTLING THE SWITCH BOX
Dismantle the switch box only if absolutely necessary. Free and lift the headlamp
reflector and remove the speedometer head. After freeing the headlamp top
nacelle, the switch box located in it becomes accessible.
