49
6. REMOVING THE CYLINDER HEAD AND BARREL
Disconnect the fuel pipe (from the carburetter to the fuel tank) and remove the
Dual Seat and the fuel tank (for dismantling instructions refer to para 13 & 14).
Disconnect the Ignition coil and sparking plug leads and remove the H. T. Ignition
coil. Disconnect the exhaust pipe, unscrew the four nuts holding the cylinder
head to the cylinder barrel and remove the cylinder head. By means of the
kickstarter bring the pistons into the B.D.C, position and push the cylinder barrel
upwards.
Note: If it is difficult to remove the cylinder head lever it carefully by placing a
screwdriver between the cylinder head and cylinder fin at the spot where the fins
join. After dismantling cover up the crankcase opening to prevent dirt entering,

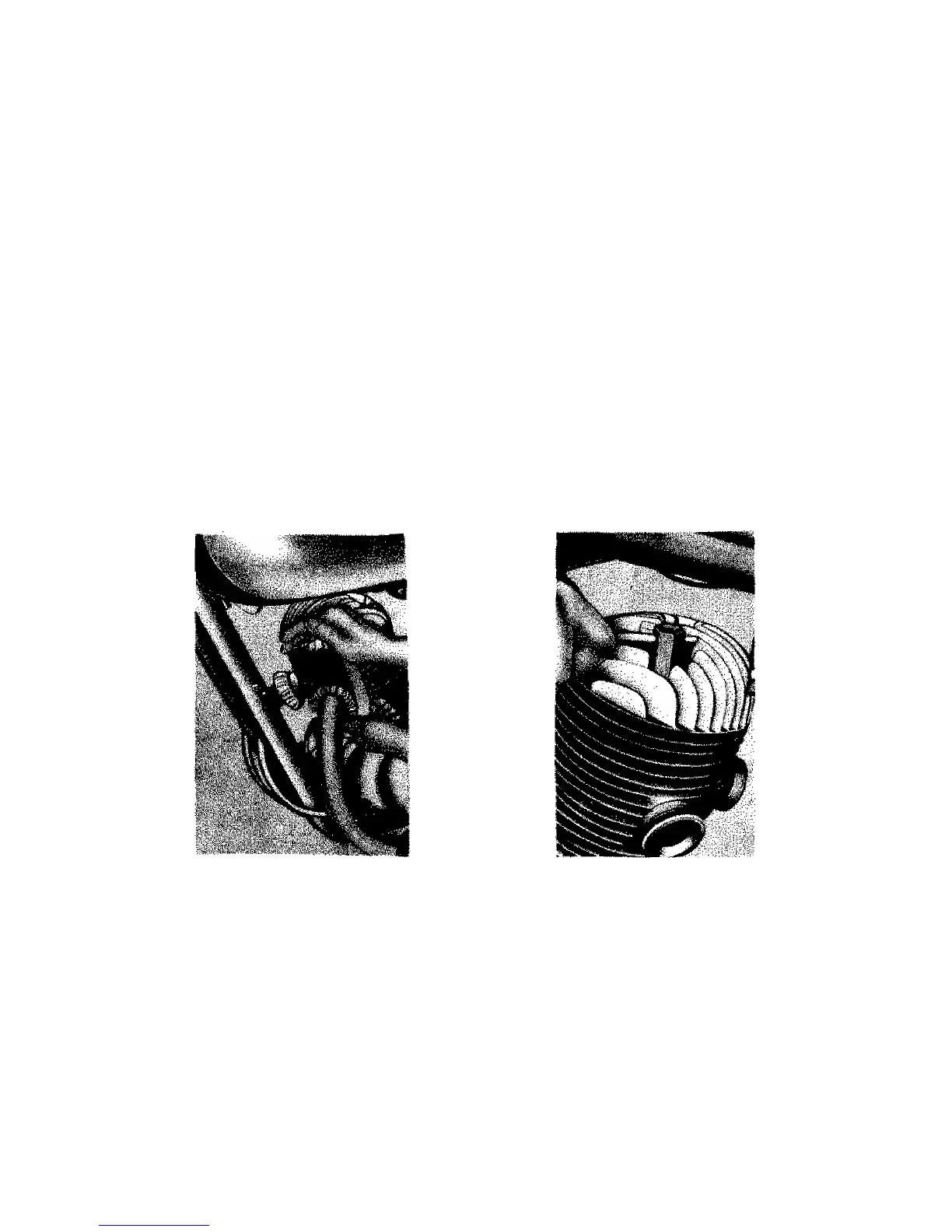

Fig. 30 Disconnecting the exhaust pipes Fig. 31 Removing the cylinder head
