54
bearing balls. Push the steering head column downwards and then the bottom
bearing can be lubricated. When completely dismantling the fork unscrew the nut
fully; unscrew the valves from the fork tube top portion; slacken and remove the
steering lug and stem pinch bolts, and push out one after the other the fork legs
and the steering head column,
To remove the front suspension dampers from fork legs, unscrew the drain
plug '14' (Ref. Fig. 34) and top nut '1' (after removal of top nacelle) and pull
out the entire damper unit from top of the fork tube '3'.
When refitting the damper unit into the fork tube ensure that the pin at
the bottom of the end-tube '15* is located correctly into the locating hole in
the slider bottom '12'. as otherwise the front suspension will become
inoperative.

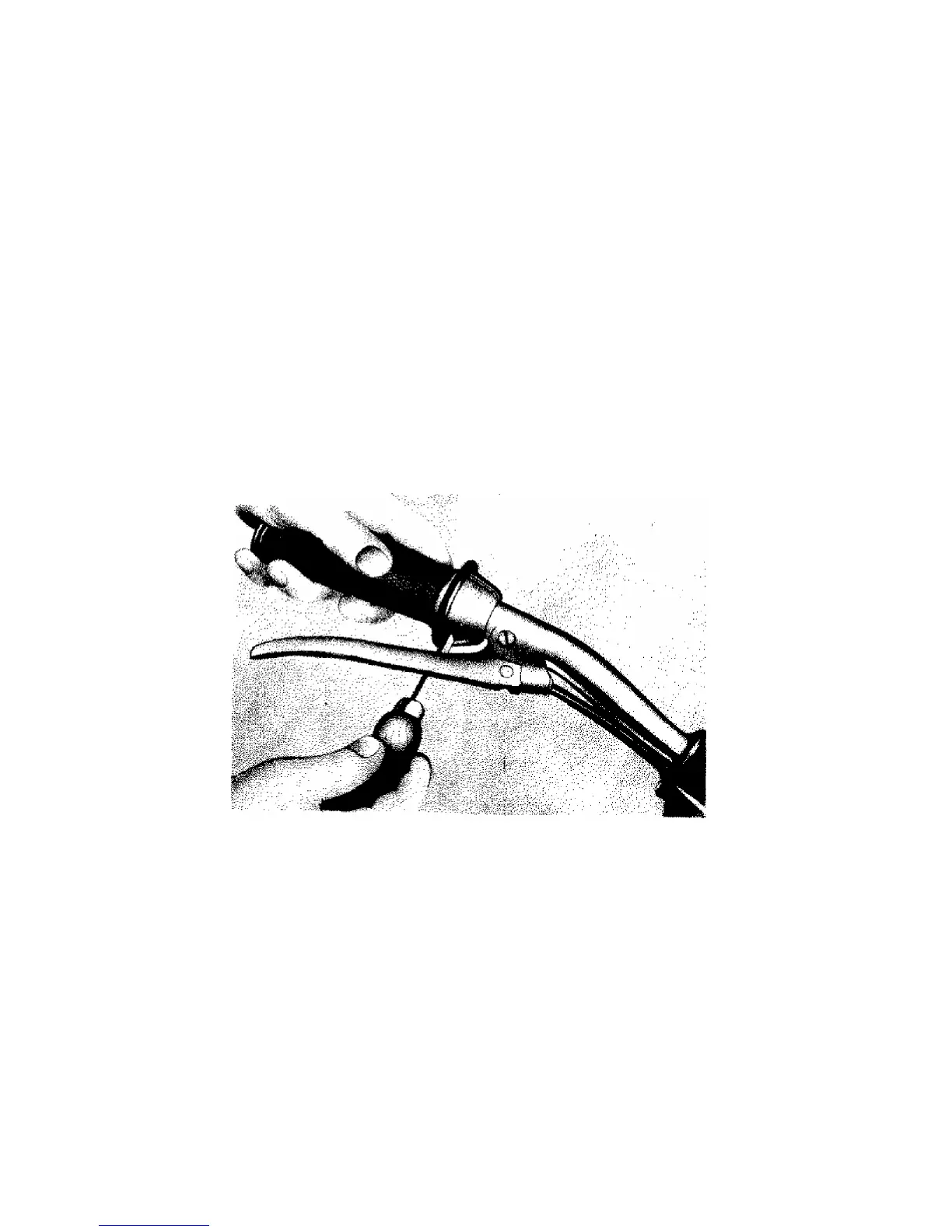

Fig. 37 Adjusting the twist grip
