44

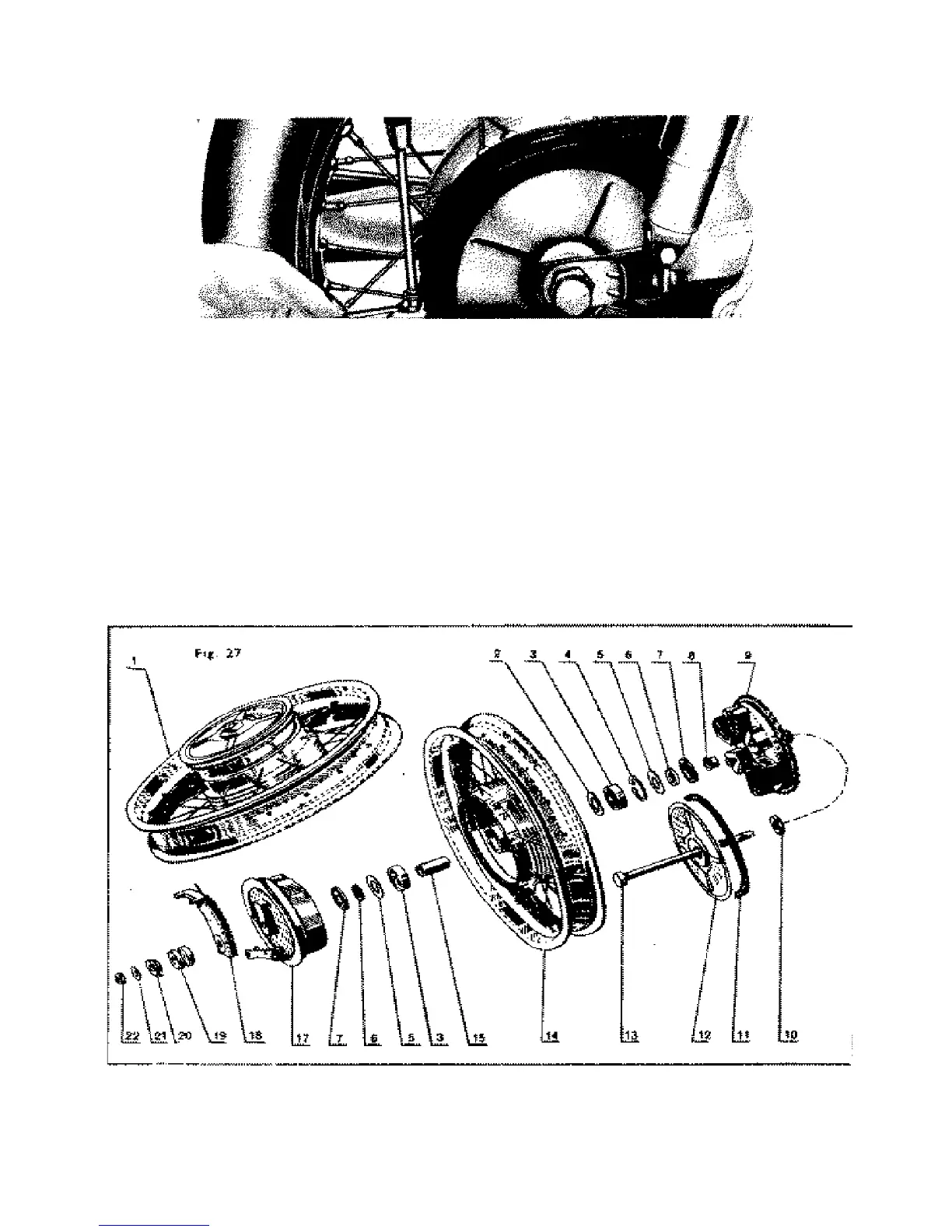

Fig. 26. Dismantling the chaincase
2. REMOVING THE REAR WHEEL
Release the rear brake cable, unscrew the spindle nut, remove the spring washer
and pull out the spindle to the right hand side. Remove the brake reaction bracket
on the L.H. side, slide the wheel off the rubber blocks (coupling of the chain wheel)
and inclining the motorcycle to one side remove the wheel.
To assemble the wheel reverse the above process. The brake-cable should be
adjusted so as to allow free rotation of the wheel.
Fig. 27. Rear wheel brake drum - exploded view
