Jaylor Owner Manual -14- 5000 Series Truck Mount Models
10. SAFETY SIGN LOCATIONS
The types of safety signs and typical locations on the equipment are shown in the illustrations that follow.
Good safety requires that you familiarize yourself with the various safety signs, the type of warning and the
area of particular function related to that area which requires your SAFETY AWARENESS.
Think SAFETY! Work SAFELY!
Safety Sign Decal Locations

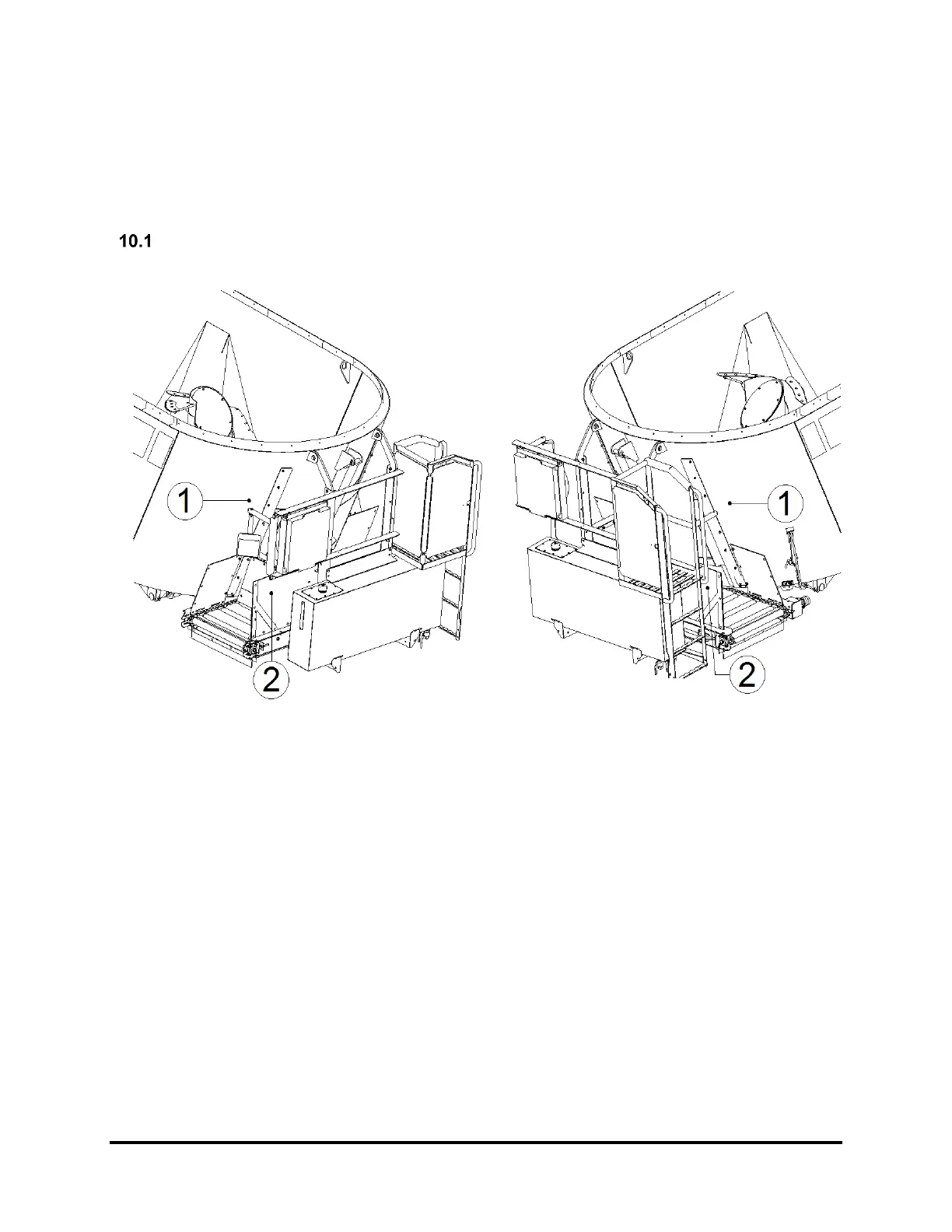

Figure 2 - Standard Safety Sign Locations
1. ‘Danger’ Rotating Auger Hazard and Pinch Point (Figure 3)*
2. i. ‘Warning’ Rotating Part Hazard (Figure 4)
ii. ‘Warning’ High Pressure Fluid Hazard (Figure 5)**
*This decal will always be located near every unloading door on the machine no matter the configuration
**Also located on both sides of truck near the pump assembly
