Jay-Lor 5425TM - Figure 18 - Grease Points on Truck Mount Mixer

AAA-055-00188
Jaylor Owner Manual -44- 5000 Series Truck Mount Models

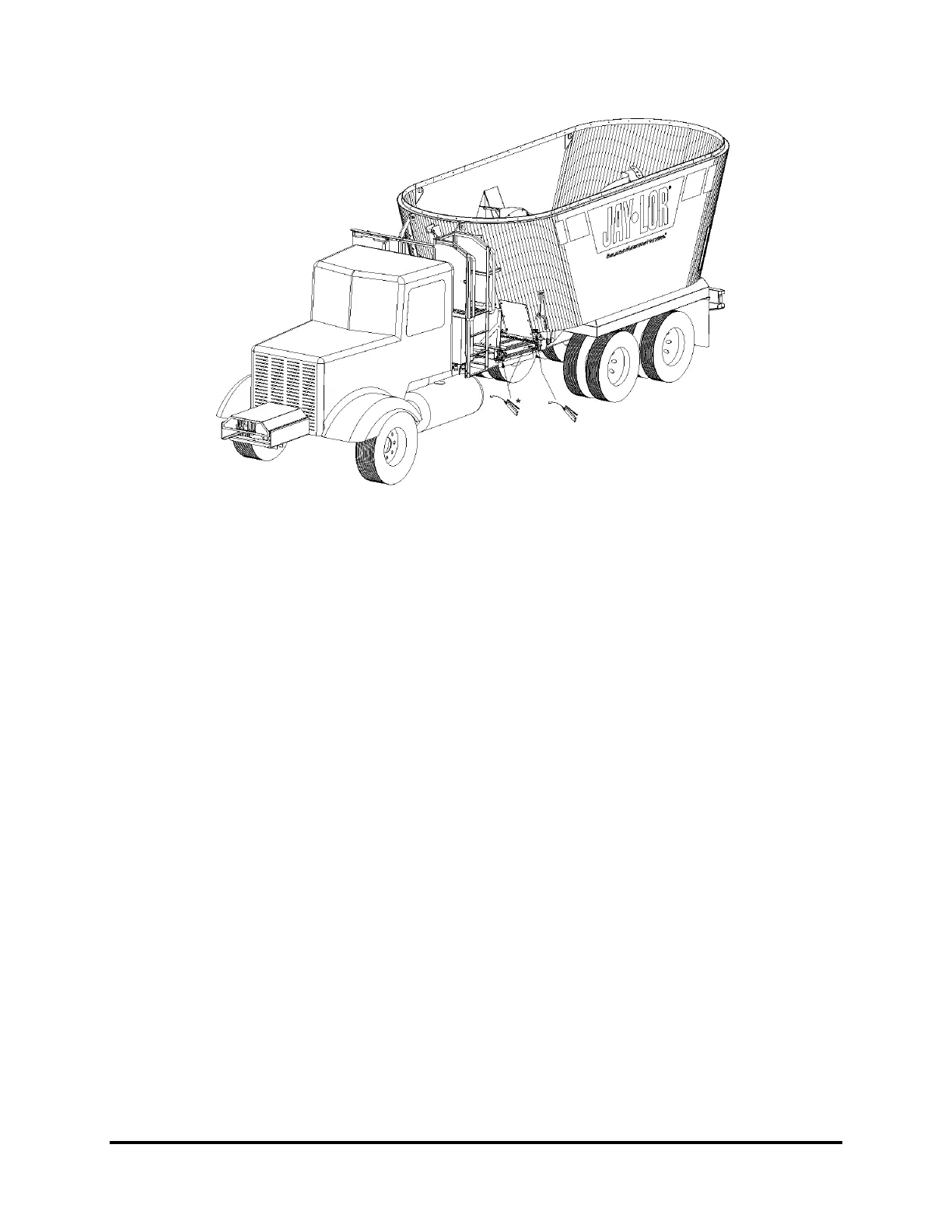

Figure 18 - Grease Points on Truck Mount Mixer
* there are two bearings opposite the two in view for a total of four bearings
When creating a maintenance schedule please keep in mind:
• When greasing the gearbox through the grease line mounted underneath the mixing chamber in the
front left corner be sure to inspect the integrity of the line. If it is split, cracked and/or disconnected
replace the line immediately
