Jaylor Owner Manual -50- 5000 Series Truck Mount Models
15. Add additional hydraulic oil to the reservoir through the breather port until the oil level gauge on the
side of the reservoir indicates that it is full.
16. Re-install the breather cap.
17. Start the truck engine and allow the pumps to operate in neutral for 5 minutes to allow the system
to fill with oil and purge any air.
18. Engage the pumps after 5 minutes. Check for hydraulic leaks and verify proper operation of the
machine.

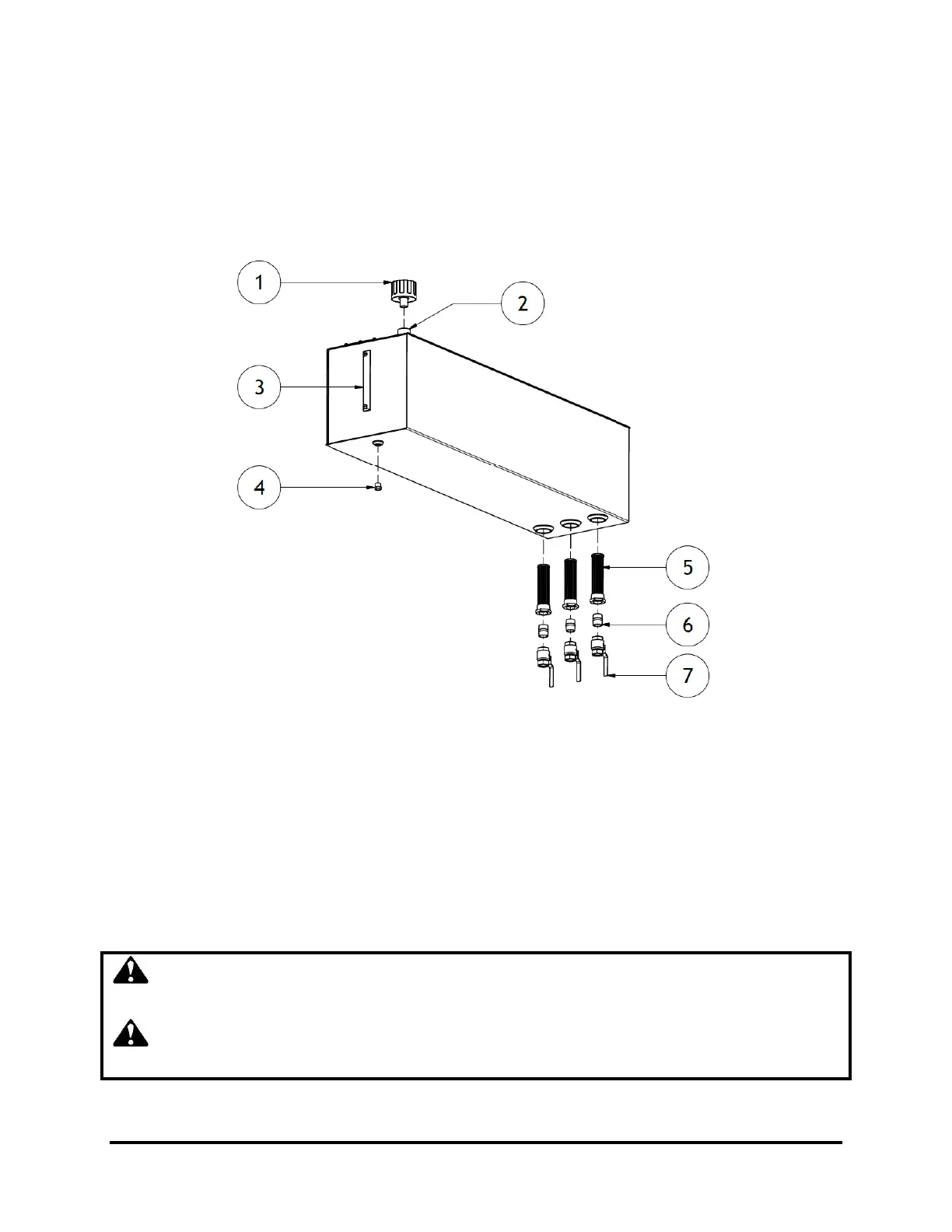

Figure 23 - Hydraulic Oil Reservoir
1. Breather Cap
2. Breather / Fill Port
3. Oil Level and Oil Thermometer
4. Drain Plug
5. Supply Line Strainers
6. Supply Line Fittings
7. Supply Line Valves
IMPORTANT: Presence of debris or contaminants in the reservoir indicates a potential failure or
deterioration of a system component, contact your Jaylor dealer or distributor immediately.
IMPORTANT: Excessive amounts of air in the hydraulic system can cause instability and cavitation
of the hydraulic system.
