Jaylor Owner Manual -23- 5000 Series Truck Mount Models
Control Console and Joystick
The control console for the mixer is located inside the truck cab. The joystick is where the augers can be
independently switched on and off and where all doors are raised and lowered. The control console
consists of temperature and pressure warning lights as well as independent speed controls for the augers.
Figure 9 depicts the layout of the console for proper operation of the mixer.

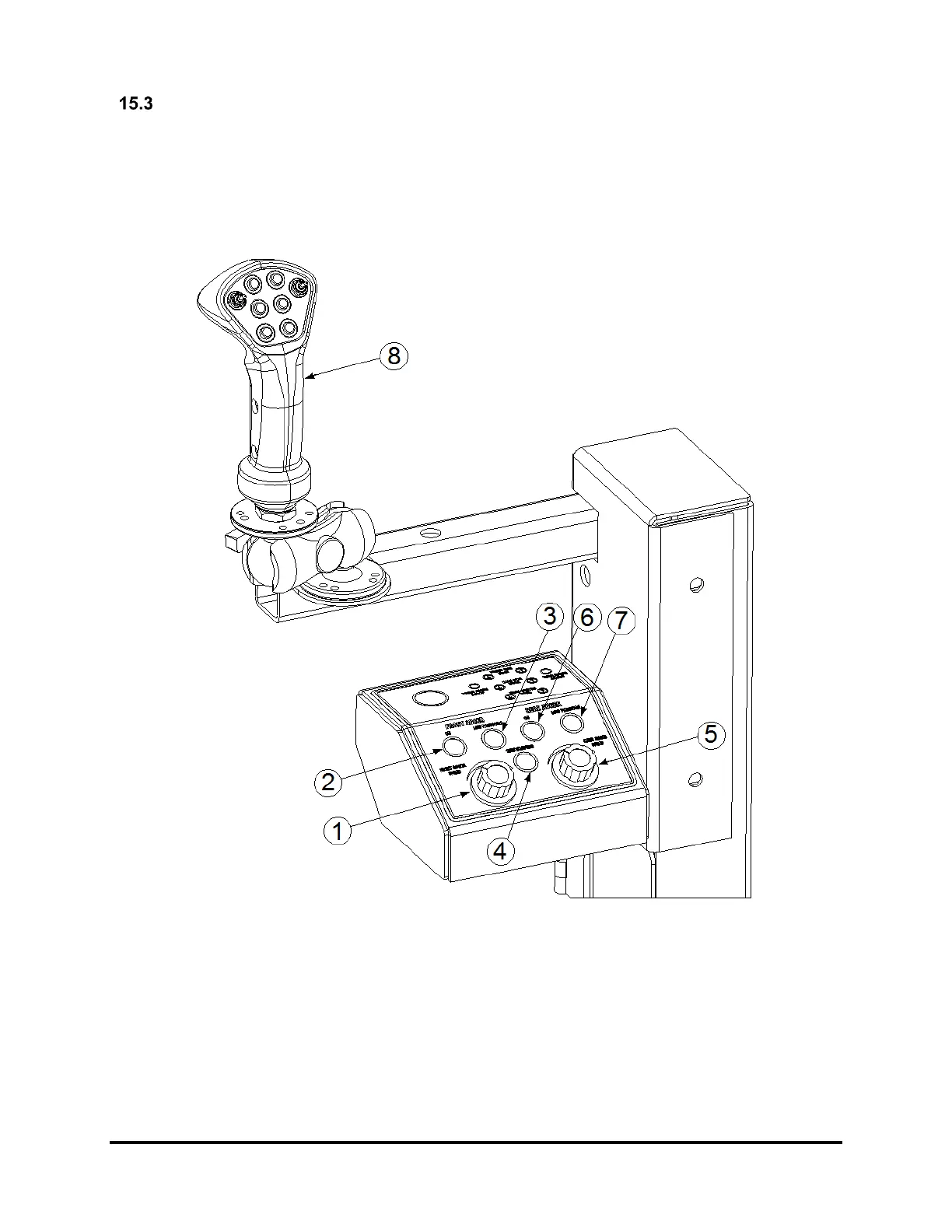

Figure 9 - Standard Control Console
1. Front Auger Speed Control
2. Front Auger ON Indicator Light
3. Front Auger Low Pressure Warning Light
4. System Overheating Warning Light
5. Rear Auger Speed Control
6. Rear Auger ON Indicator Light
7. Rear Auger Low Pressure Warning Light
8. Joystick Control (on applicable configurations)
