Jay-Lor 5425TM - Restrictor Blades; Figure 8 - Restrictor Blades

AAA-055-00188
Jaylor Owner Manual -22- 5000 Series Truck Mount Models
Restrictor Blades
• Located at the front-left and rear-right corners of the mixing chamber the restrictor blades can be
locked “IN” to increase cutting aggressiveness or “OUT” to reduce cutting aggressiveness. Proper
blade position is determined by the operator’s preference.

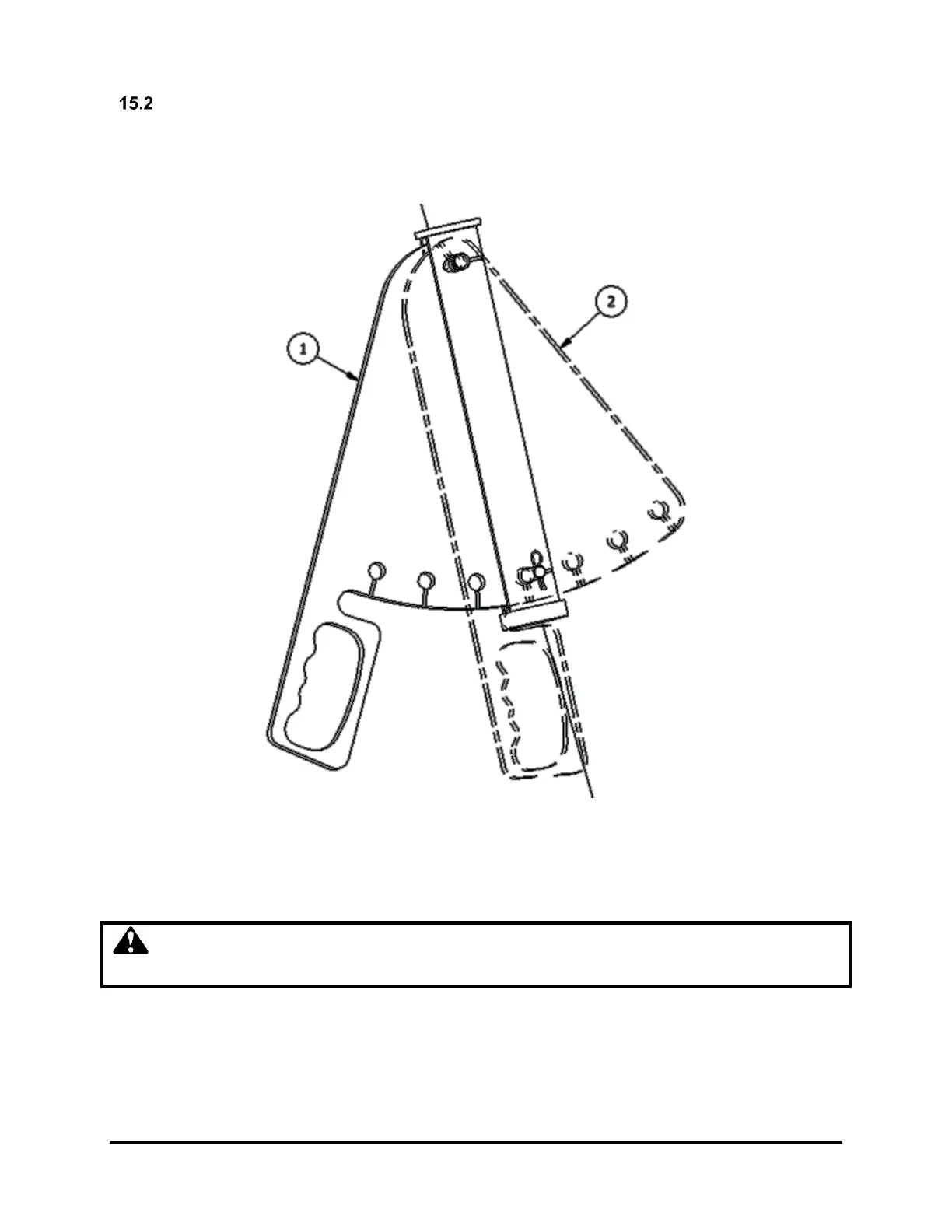

Figure 8 - Restrictor Blades
1. “OUT” Position
2. “IN” Position
IMPORTANT: Position the Restrictor Blades in the ‘IN’ (retracted) position during transportation of
the machine to reduce overall width.
