Jaylor Owner Manual -24- 5000 Series Truck Mount Models
16. DOOR CONFIGURATIONS
Front Center Discharge
The front discharge door is controlled hydraulically from the control console in the truck cab. The door is
opened to allow feed out of the mixing chamber onto the conveyor. The door, on all models, excluding
low-profile, can be raised up to a maximum of 32 inches (81 cm) in height.

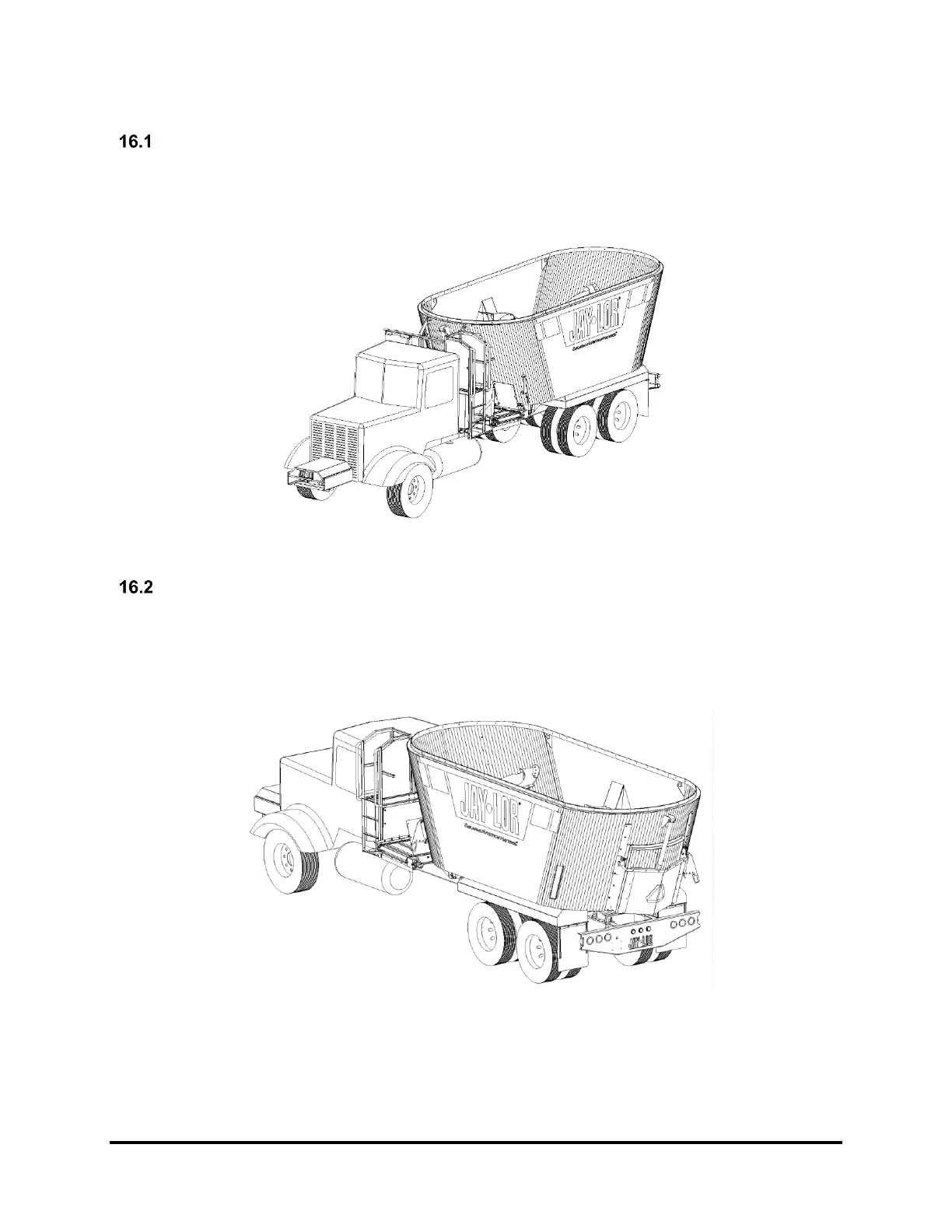

Figure 10 - Front Door Configuration
Rear Door Discharge
The rear discharge door is controlled hydraulically from the control console in the truck cab. On most
units, the rear door option is equipped in addition to the front discharge door option. The door, on all
models, excluding low-profile, can be raised up to a maximum of 32 inches (81 cm) in height.
Figure 11 - Rear Door Configuration
