The Trifold Sofa oers very similar features to the traditional hide-a-bed. The following
illustrations detail converting the sofa into a bed.
The dinette is designed to seat up to four adults. Depending on your model, there may be
a storage area in the dinette bench. To access this storage, remove all the cushions and lift
up on the bottom seat support.
. The dinette seats that are
secured with screws contain factory installed equipment and should only be accessed by a
qualied service technician.
Your motor home may be equipped with one of the following dinette styles that can be
converted into a bed.
Remove all the cushions from the booth dinette. Lift up the tabletop and remove the
detachable table legs. Place the tabletop on the ledges provided between the booth dinette
benches. Lay the seat back cushions against the back of the dinette bench. Lay the dinette
seat bottom cushions in between the seat back cushions. The area where the cushions meet
should be slightly raised. Push the raised cushion ends down gently as the cushions are
designed to t snugly. Reverse this process when converting back to the booth dinette.

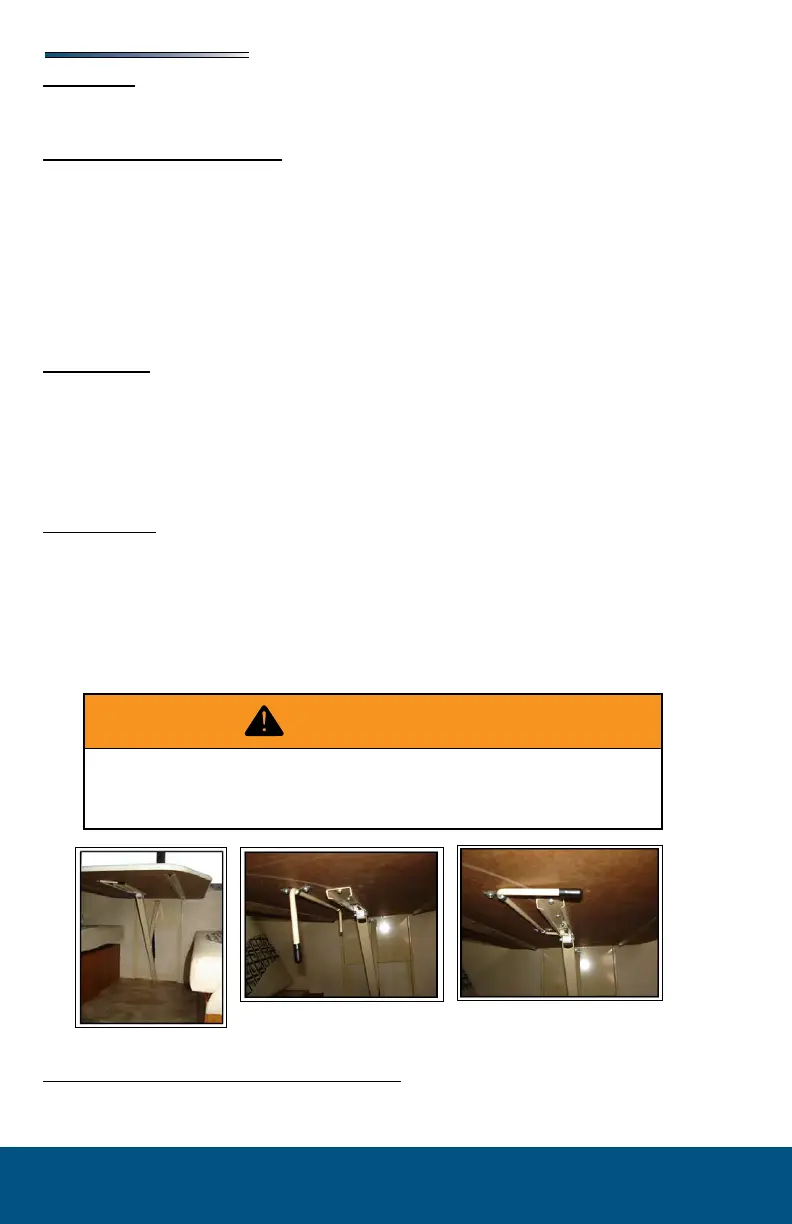

Remove all the cushions from the dinette. Locate the locking mechanism rod under the table
top. This locking mechanism is designed to keep the table from collapsing into the bed
conguration. Turn this rod so it moves out of the channel and points down toward the oor.
Push the dinette table down toward the oor to form the platform for the bed. Arrange the
cushions to form a mattress for sleeping. To convert back to a dinette, remove the cushions,
pull the table back up as high as it will go, and turn the rod underneath back to the locked
position.
Two free standing chairs and two folding chairs are included in the Free Standing Table/
chair Package (if so equipped). When traveling in the motor home, it is recommended the
Make certain the rod underneath the table is in the locked position before
using then the table in the dinette position. Failure to secure the table in the
locked position may result in injury or property damage.
