45

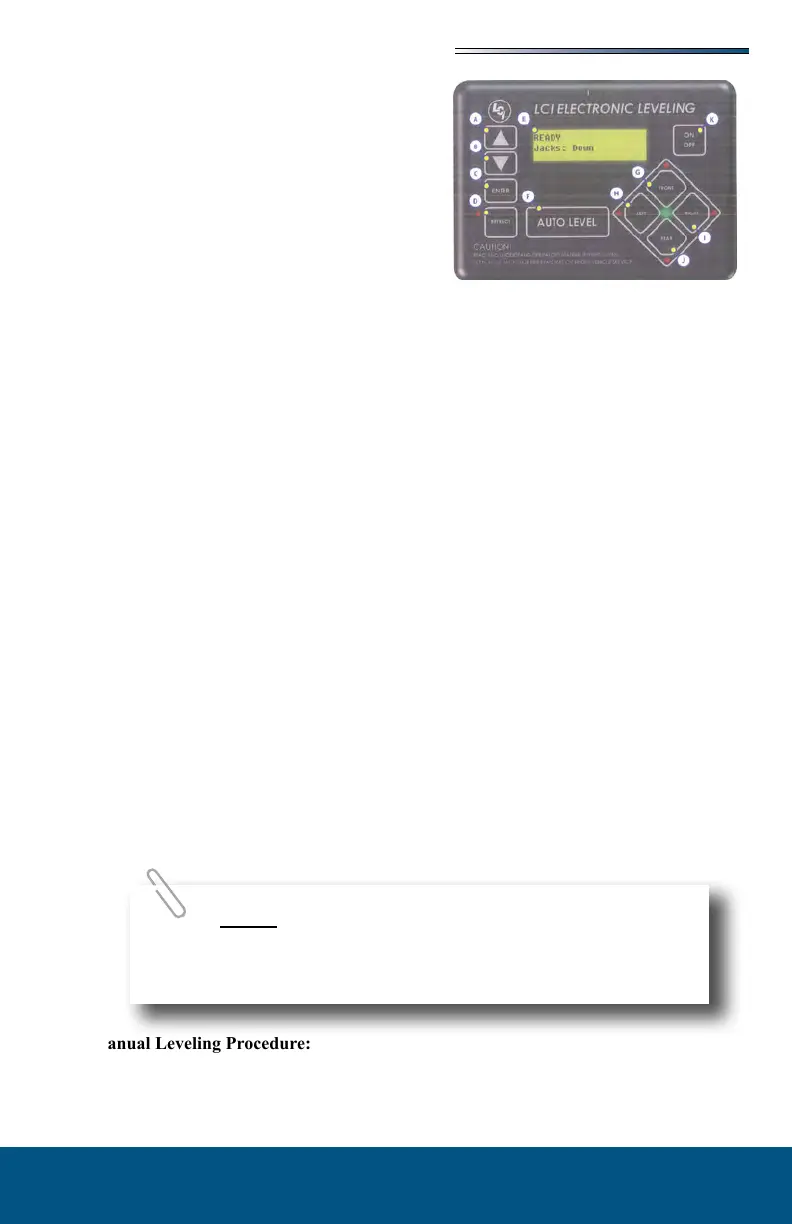

The control unit is typically located inside the
entrance door.
: scrolls up through the menu on
LCD
: scrolls down through the menu
on LCD
: activates modes and procedures
indicated on LCD
: places leveling system into retract
mode. Press and hold down for (1) second to initiate auto retract
: displays procedures and results
: places leveling system into auto level mode
: activates both front jacks in manual mode
: activates left rear jack in manual mode
: activates right rear jack in manual mode
: activates both rear jacks in manual mode
: turns leveling system on and o
Before auto-leveling features are available, a Zero Point MUST be set. This is the point to
which the system will return to when auto leveling is initiated.
● Place a carpenter’s level in the center of the coach. This will aid in determining
when coach is level.
● Before setting the Zero Point, rst run a manual leveling sequence. (Refer to
manual leveling procedure below).
● After manually leveling the coach, activate the Zero Point conguration mode,
which is enabled by performing the following steps.
1. Turn the touchpad OFF.
2. Press the FRONT button 5 times.
3. Press the REAR button 5 times.
4. An alarm will sound and display will show “ZERO POINT CALIBRATION”.
5. Press ENTER to set the Zero Point. (Press POWER to exit).
6. Screen displays PLEASE WAIT.
7. Alarm will sound and screen displays “ZERO POINT SUCCESSFUL”.
8. Control will then turn OFF.
When leveling your coach it should be leveled from front to rear rst, followed by leveling
side to side. The coach requires 9.5V DC to perform manual leveling.
If your motor home has air bag suspension: The leveling
control will automatically program for air bag control. The option will
not be preset if no dump valve coil resistance is detected.
