The city water connection inlet is located in the Uni-Dock utility center. Use a non-toxic
drinking water hose dedicated only to supplying fresh water. To prevent contamination,
keep the non-toxic drinking water hose from coming into contact with the ground. Install
the city water connection inlet cap when the fresh water connection is not being used.
The fresh water connection should be disconnected (i.e., the non-toxic drinking hose
disconnected) when the recreation vehicle is unattended for any
amount of time. If something would happen to the water system,
this may help limit water damage to a smaller area.

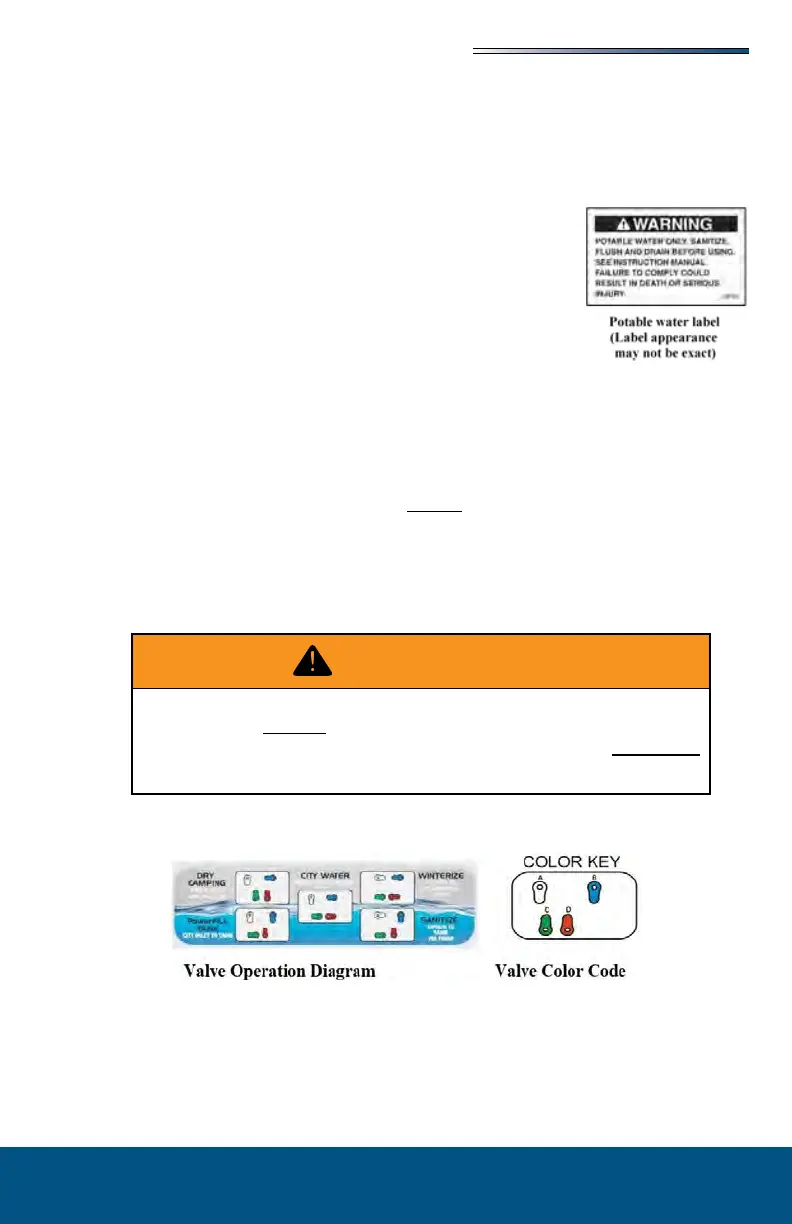

Do not remove the potable water label.
Receives water from water inlet on the front
panel.
Sideways: Water goes to pump inlet.
Downward: Water goes into the blue handled diverter.
Receives water from the white handle valve/water inlet on the front panel.
Sideways: Water goes to or comes from the fresh water tank.
Downward: Water goes out to the xtures (cold).
Receives water from the cold water supply.
Sideways: Water goes to hot water xtures without going through hot water heater.
Upwards: Water goes to hot water heater.
: Receives water from the pump.
Sideways: Water goes to fresh water tank.
Upwards: Water goes to xtures.
The following information details the functions of the utility center water valves as displayed
on the valve operation label.
1. Connect the fresh water hose to the City water connection inlet on the utility center.
2. Set the color coded valves to POWER FILL TANK setting:
(A) White handle pointing down
(B) Blue handle pointing down
(C) Green handle pointing left
A check valve is located inside the city water connection inlet on the
utility center.
It will cause
damage to the valve function and the inlet will leak water.
