Scissor style arms that do not require vertical ground supports.
Adjustable arms with ( 6 ) position pitch adjustment.
Worm gear driver motor eliminating the need for travel locks.
Single switch operation, 12V motorized awning.
The longitude arms have 6 pitch adjustment settings. The awning can be extended and
retracted in any of these positions without resetting the pitch.

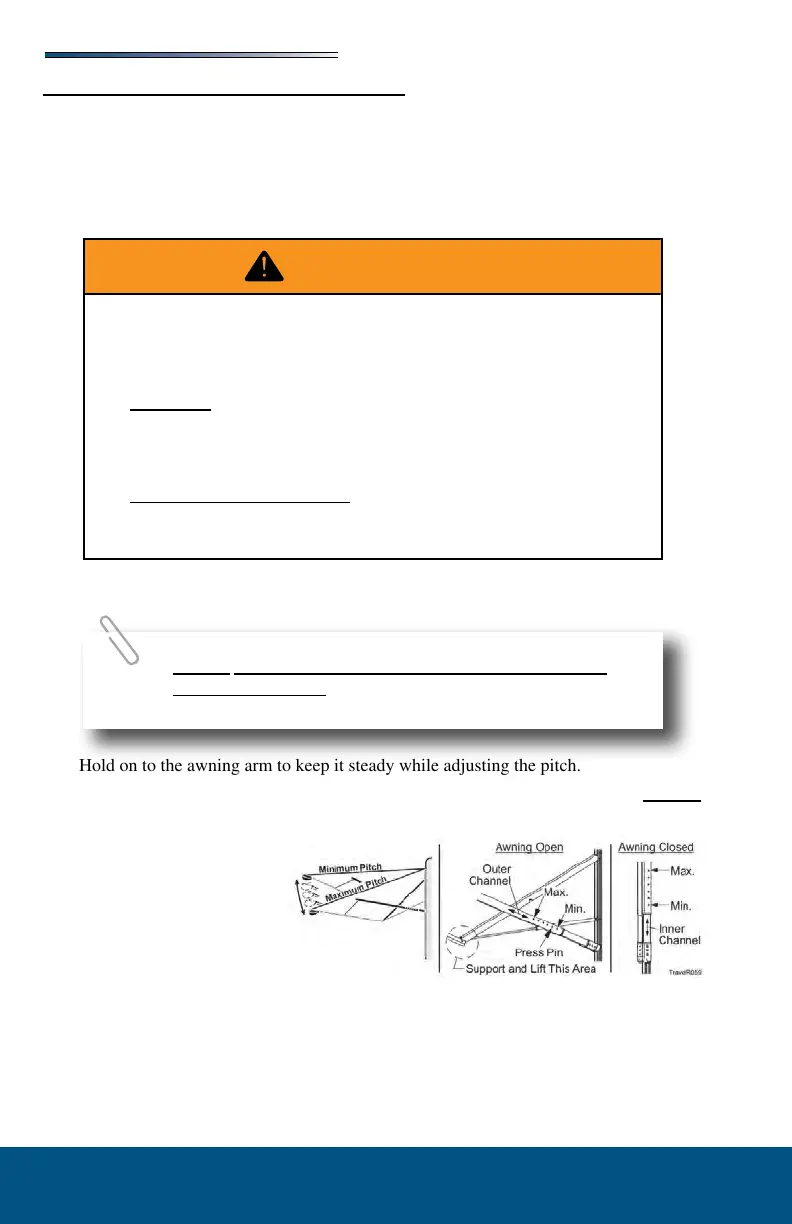

1. Hold on to the awning arm to keep it steady while adjusting the pitch.
2. Press in the pitch adjustment pins located on the scissor arm.
3. Slide the scissor arm to the
desired set hole – towards
the coach for a lower pitch
and away from the coach
for a higher pitch.
Operating the awning repeatedly over a short time period may cause the circuit to sense
an overheat condition and shut o the motor. If this occurs, wait approximately 15
minutes to allow the motor to cool then operate the awning in normal fashion.
Normal operation time is 28-35 seconds to extend or retract. If the power supply is on
the low side of the acceptable voltage range (10VDC– 14VDC) the awning will move
slower.
Do not set the individual arm pitch at more than three (3) positions
dierent between the left and right arms. Damage to the arms and the
canopy can occur if the awning is retracted when the arms are set at more
than three (3) positions dierence.
The arms must be set at an equal pitch.
Damage to the arms and canopy can occur if the awning is retracted with
the arms uneven.
