The initial graph looks like the one shown on the left. The 8 fixtures are
mounted in one line.
Select one of the functions (e.g. T-LIN) by pressing the corresponding
softkey. Enter the size of the radiation angle (e.g. size: +70) with the
right encoder wheel. The line shown on the the left changes until it
reaches the angle shown on the right.

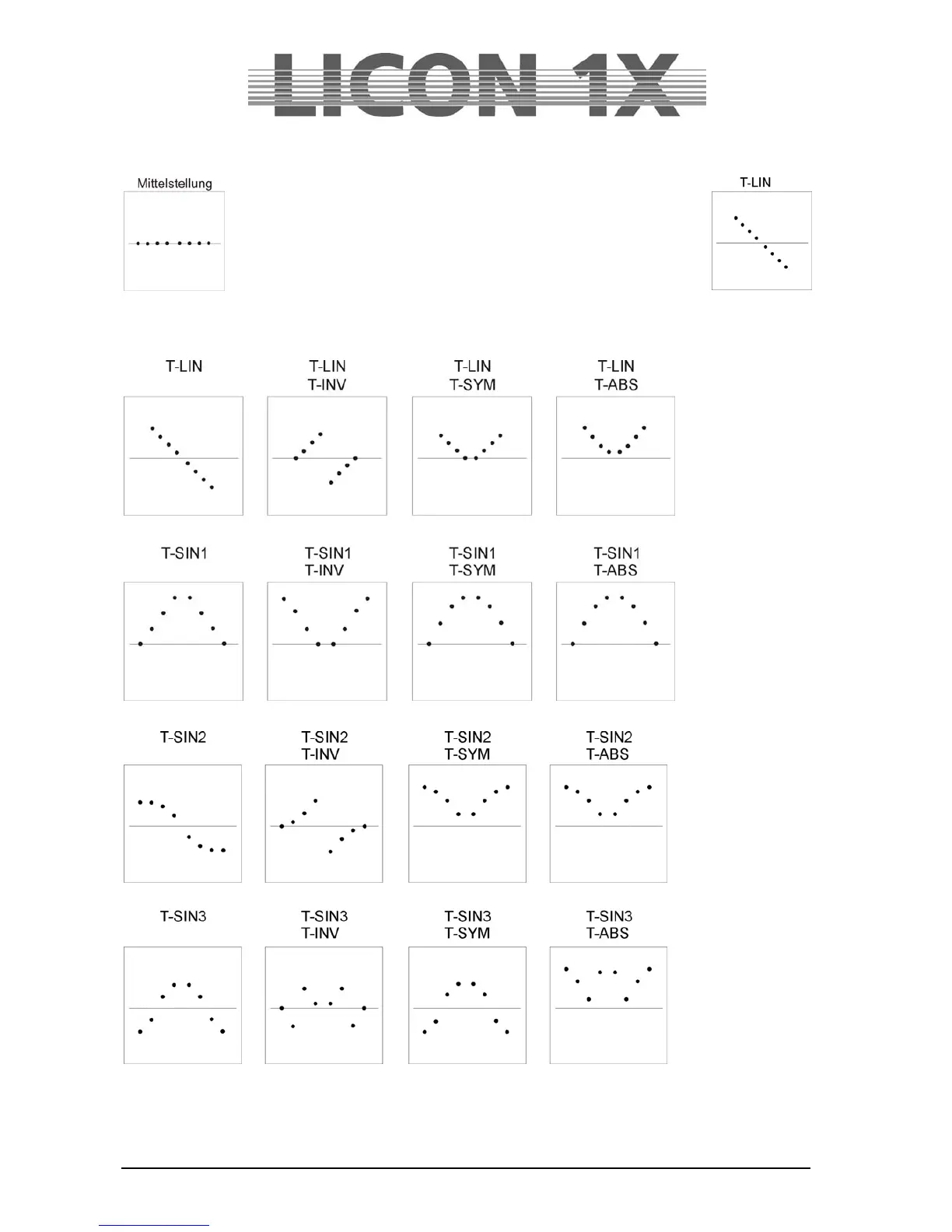

The following graphs will show all fan functions possible that can be created with 8 fixtures and the basic
setting of the size at +70. Above the graphs, the designation of the currently active function is displayed.
To Next Page
