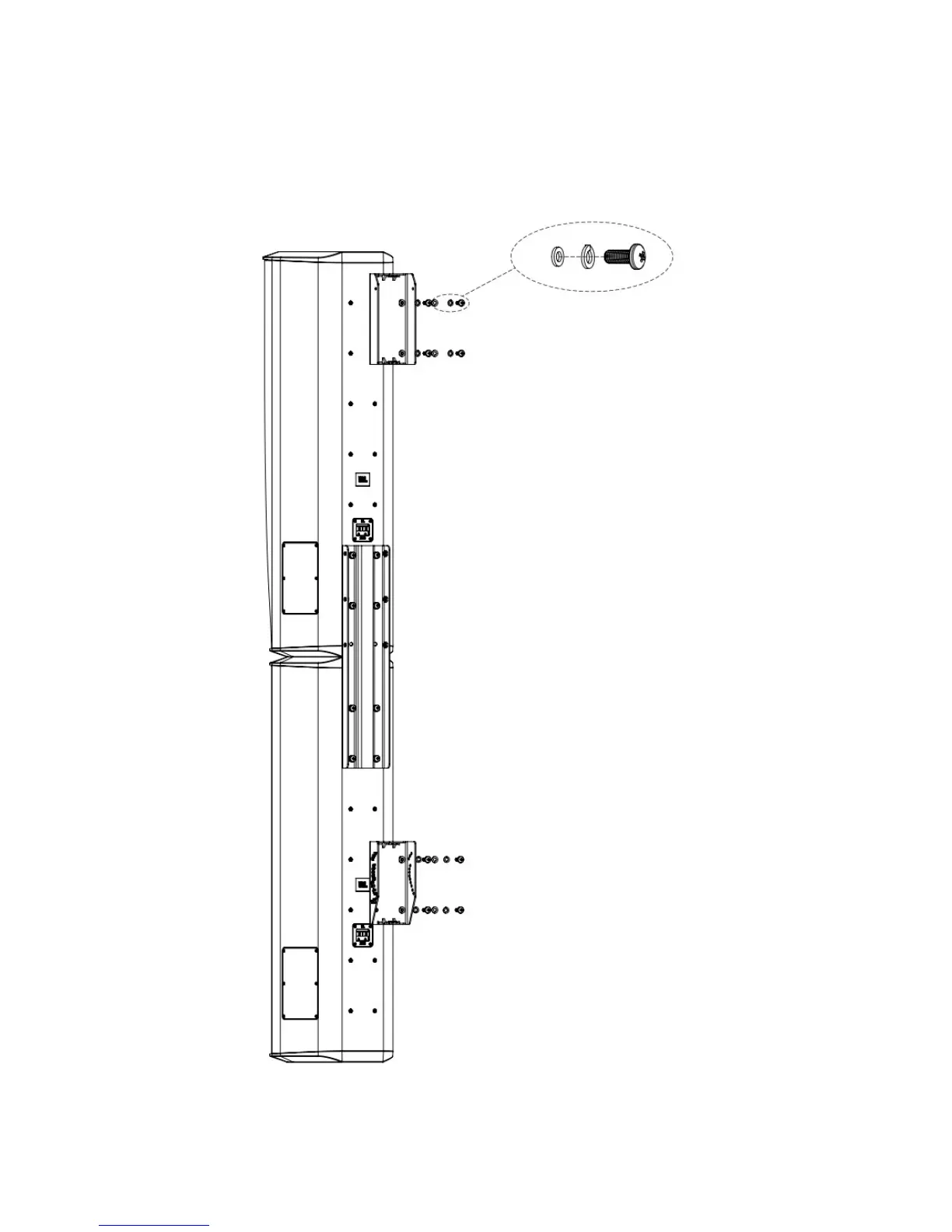

Option 4b) CBT1000+1000E System with Up-Tilt Capability

(No Horizontal Swivel/Pan)

8 PLACES:

M8 x 20 mm

PAN HEAD

BOLT

M8 SPLIT

LOCK WASHER

M8

FLAT WASHER

Up-tilt range 0° to +5.25°
