B. Wiring Diagrams for 3000 Series Screen Systems:
Figure 33A shows proper amplier/loudspeaker hookup for the models 3677 and 3678, both operating in
a single-amplier mode. The model 3678 is also congured to operate in biamplied mode, as shown at Figure
33B. Note that this change requires removing four jumpers from the terminal strips of the dividing network.
C. Wiring diagrams for 4000 Series Screen Systems:
Figure 34A shows the correct method for wiring the components of the 4675C, and Figure 34B shows
the correct method for wiring the 4670D. The 4675C-4(8)LF combination is always biamplied, either using the
THX electronic dividing network or one of the input options on the power amplier. The correct wiring, with polarity
adjustment, is shown in Figure 34C.

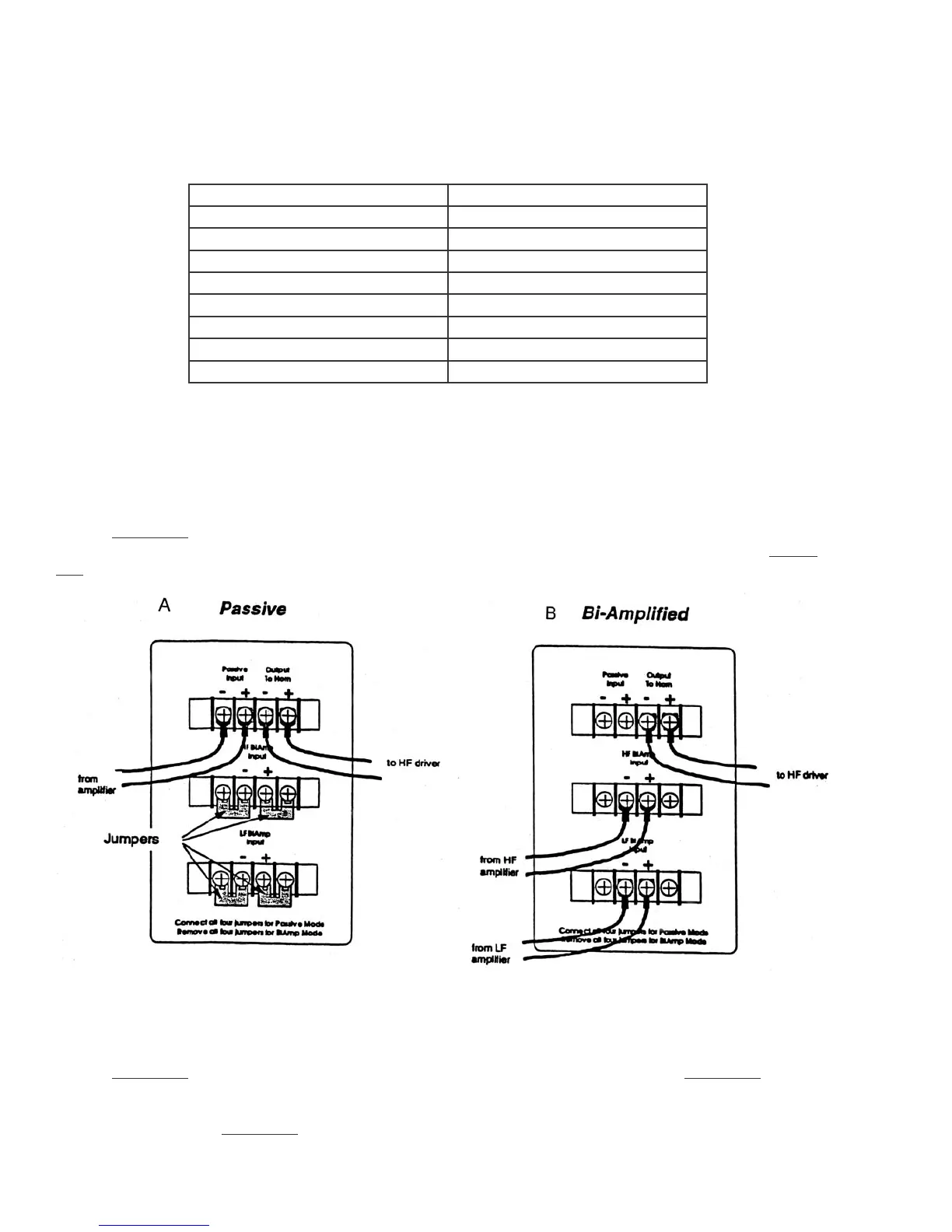

Figure 33: Wiring diagrams for 3000 Series. Passive network operation (A); biamplied operation of 3678 (B).
3000-Series All positive
4000-Series
4670D Positive
4675C Positive
4675C-4(8)LF Negative
5000-Series All negative
4600-Series subwoofers All positive
Surround systems All positive
ScreenArray systems All positive
