7
Solution A: Rack Mounting an Amplifier and CST-2120 Transformer Module
To install an amplifier and a CST-2120 transformer module in your cabinet system, refer to
Figure 2.2.3 and follow the steps below:
1. Align two modules side by side, with the front panel towards the same direction.
2. Connect them with the flat bracket.
3. Attach an angle bracket to each side of the amplifier assembly with screws.
4. Install the amplifier assembly into the cabinet. For details of installation in the chassis
of the cabinet, refer to the user guide of your cabinet.

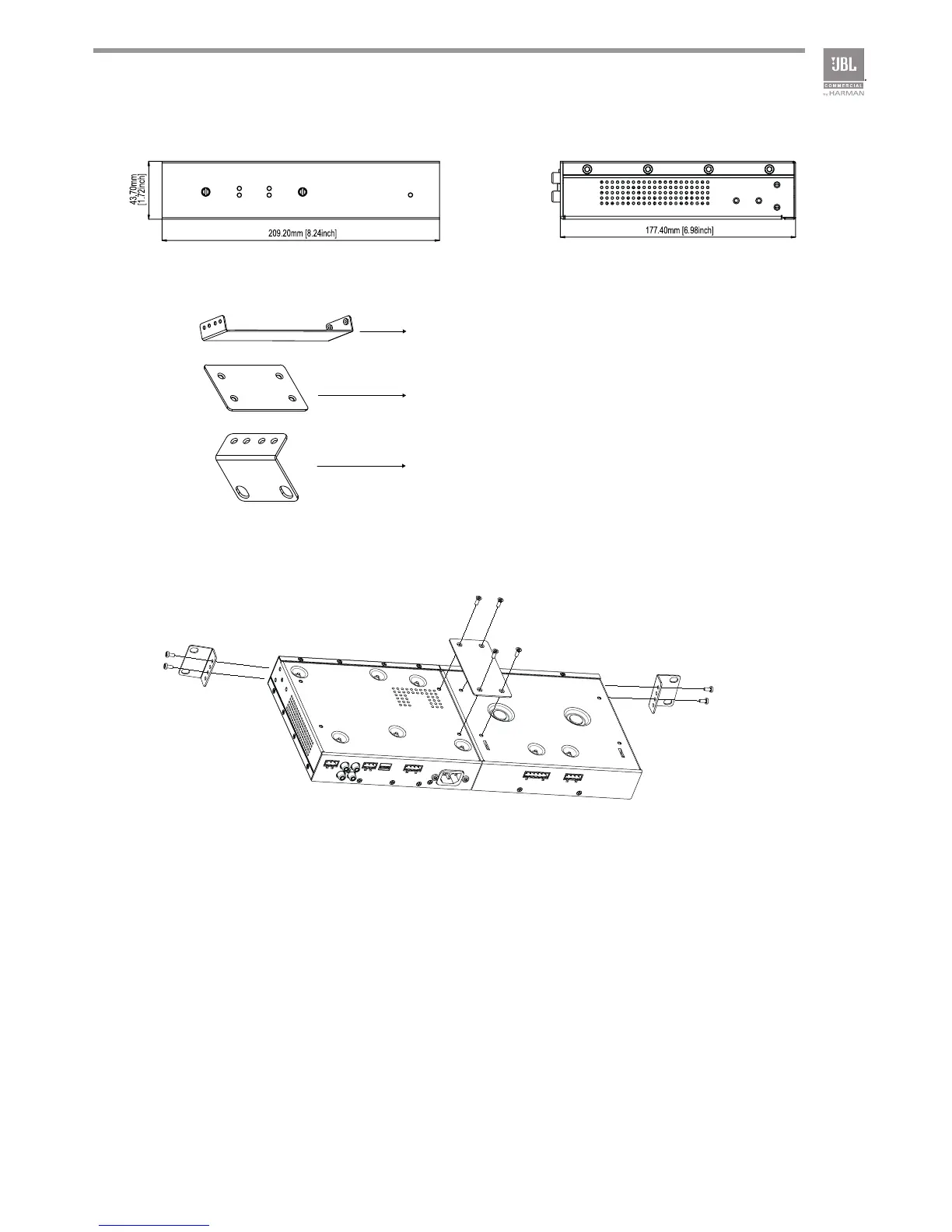

Figure 2.2.1 Dimensions
Figure 2.2.2 Rack Mounting Kit
Figure 2.2.3 Rack mounting an amplifier and CST-2120 Transformer Module
long angle bracket
flat bracket
angle bracket
Unit: mm/inches

Other manuals for JBL CSA-2120

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the JBL CSA-2120 and is the answer not in the manual?

JBL CSA-2120 Specifications

General IconGeneral
Output Power (two channels at 1 kHz power, THD+N<0.5%):4 Ohms 120 W 8 Ohms 120 W
Frequency Response (1 watt into 4 or 8 Ohms):+1/-1 dB
Load Impedance:Rated for 4 or 8 Ohms
Sensitivity (8 Ohms load):1.4 Vrms
Signal to Noise Ratio (below rated 8-Ohm power at 1 kHz, A weighted):>100 dB
Crosstalk (Rated into 8 Ohms):70 dB below rated from 20 Hz to 1 kHz; 50 dB below rated at 20 kHz
Input Impedance (nominal):Balanced: 20 k Ohms Unbalanced: 10 k Ohms
Maximum Input Signal:+20 dBu typical
AC Line Voltage and Frequency Confgi urations Available:100-240 V, 50/60 Hz
Auto-Standby:Go into auto-standby: 1 hour Recovery time: < 1 ms Recovery threshold: -60dBu
Operating Temperature:0° C to 40° C at 95% relative humidity (non-condensing)
Weight and Dimensions IconWeight and Dimensions
Dimensions (W x H x D) :8.2” x 1.7 x 7” (209 mm x 44 mm x 178 mm)
Net Weight:1 kg (2.1 lbs)
Shipping Weight:1.5 kg (3.4 lbs)
