Solution B: Rack Mounting Single Ampliﬁer

To install single ampliﬁer in your cabinet system, refer to Figure 2.2.4 and follow the steps

below:

1. Attach the long angle bracket to one side of the ampliﬁer that you need to reserve as

dummy module with screws.

2. Attach an angle bracket to the side of the long angle bracket.

3. Attach an angle bracket to another side of the ampliﬁer with screws.

4. Install the ampliﬁer assembly into the cabinet. For details of installation in the chassis

of the cabinet, refer to the user guide of your cabinet.

Solution C: Wall Mounting

To install the ampliﬁer to wall, refer to Figure 2.2.5 and follow the steps below:

1. Attach two angle brackets to both sides of the ampliﬁer with screws.

2. Install the ampliﬁer assembly to a ﬂat and stable place on the wall with enough clear-

ance for heat dissipation.

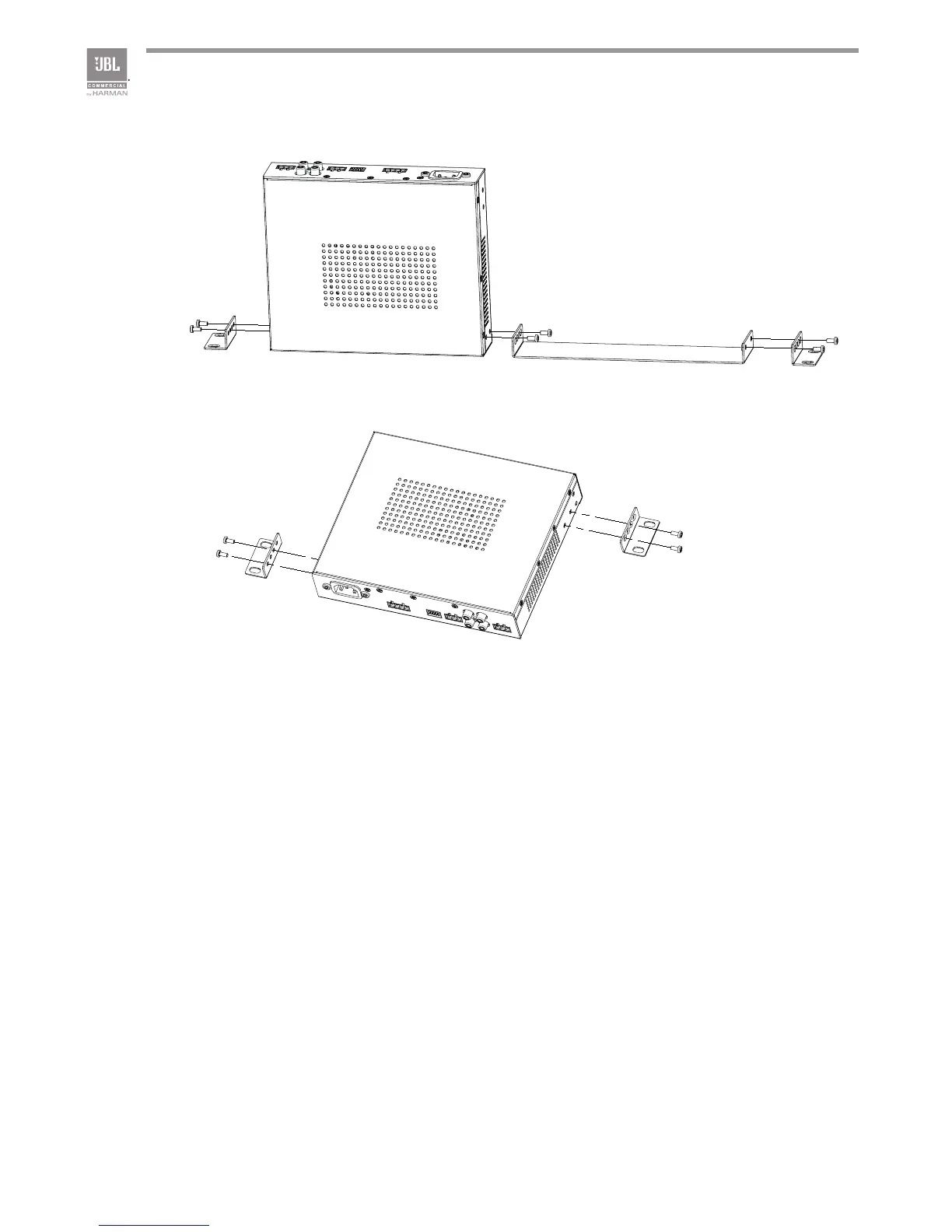

Figure 2.2.4 Rack Mounting Single Ampliﬁer

Figure 2.2.5 Wall Mounting
