JBL MS-8 Service Manual

CONNeCTiONs
Aux
input
To
headphone
output

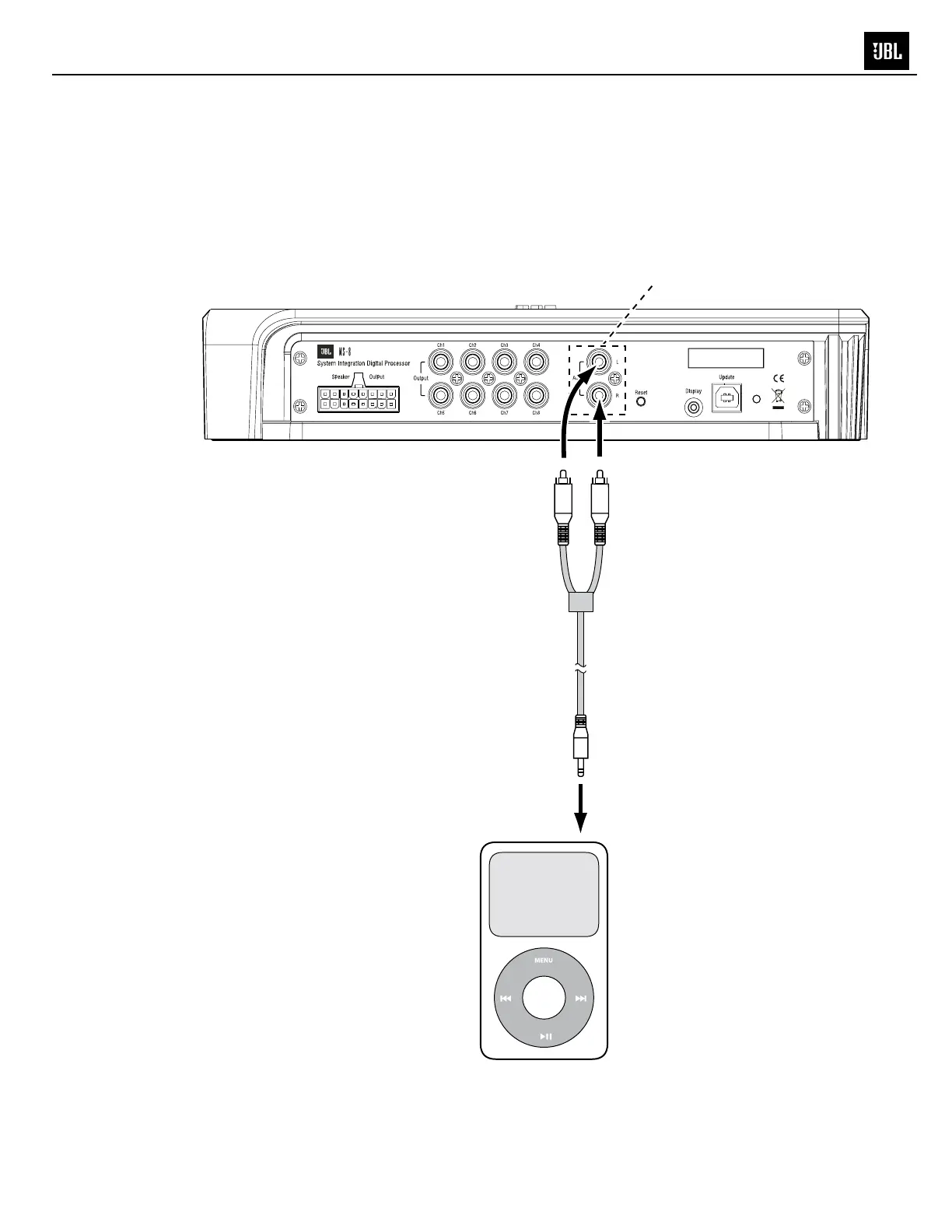

Aux input: If you will be using a portable music player or CD player as an auxiliary audio-source unit,
connect its line or headphone output to the MS-8's Aux input using a cable that terminates in stereo
RCA audio connections. You can switch between the MS-8's Head Unit inputs and Aux input in the
MS-8's Input Selection menu. See Main Menu, on page 35.
10
CONNECTIONS
MS-8
9

JBL MS-8 Specifications

General

Amplifier class	-
Frequency range	20 - 20000 Hz
Audio output channels	5.1 channels
Peak power per channel	30 W
Signal-to-Noise Ratio (SNR)	85 dB
Total Harmonic Distortion (THD)	- %
RMS power output per channel (4 Ohm)	18 W
DC-in jack	Yes
Purpose	Car
Product color	Black, White
Connectivity technology	Wired
Built-in display	No
