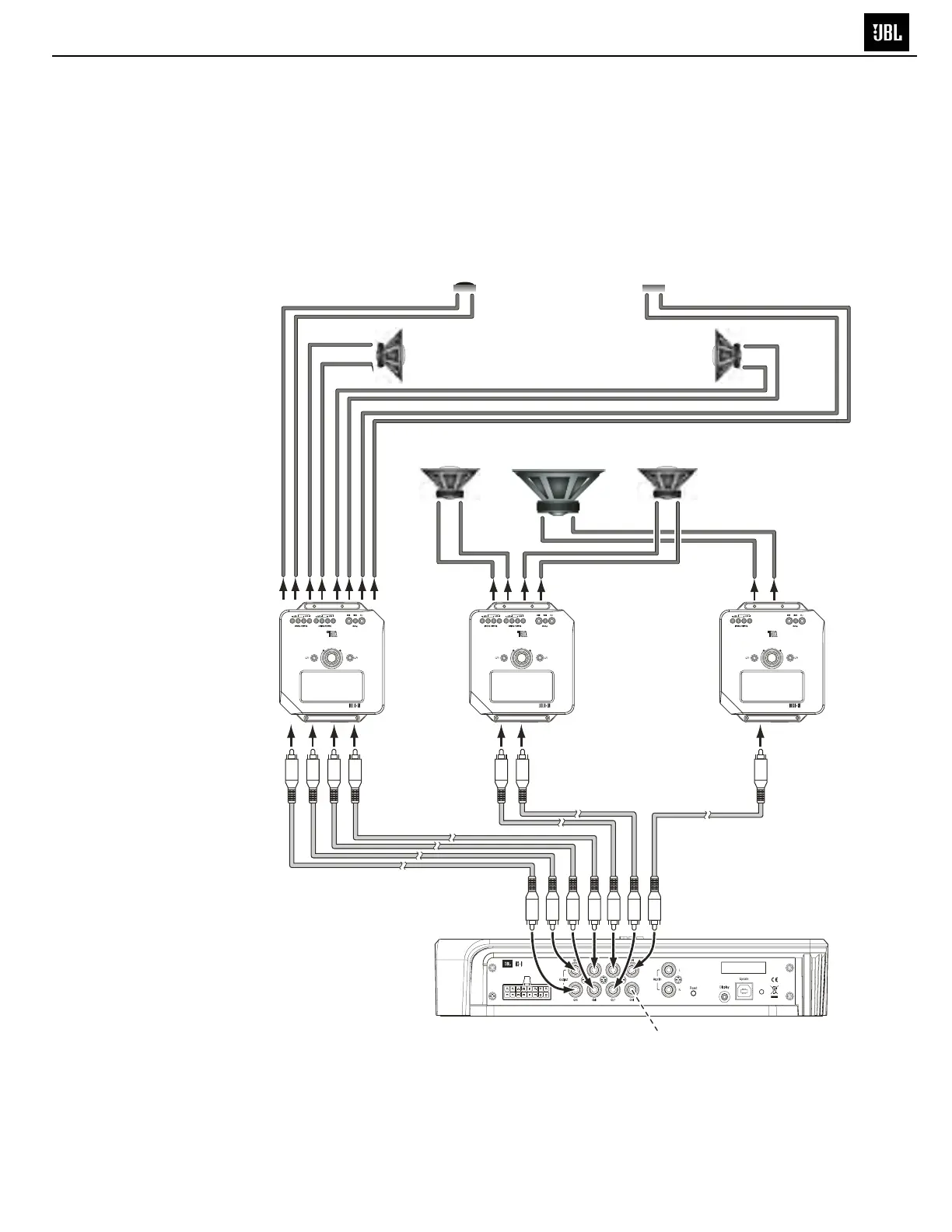

Left front
(tweeter)
Left front
(midrange)
Left rear
(coaxial)
Front
speaker
amplifier
Rear
speaker
amplifier
Subwoofer
amplifier
RCA
audio cables
MS-8 main unit
Ch. 8 is unused
in this example
Right rear
(coaxial)
Subwoofer
Right front
(midrange)
Right front
(tweeter)
Vehicle
Speaker
System
CONNeCTiONs
Line Outputs
If you’ll be using additional outboard power ampliers to drive your system’s speakers, connect their inputs to
the MS-8’s line-output connectors. You can power some of the system’s speakers by the MS-8’s ampliers
and some by outboard ampliers, but you should use only one connection type per output. For example,
Output Channel 1 may use the MS-8’s amplier OR an outboard amplier, but not both. Be sure to use the
chart above to note which speakers you have connected to which of the MS-8’s channels.
14
CONNECTIONS
MS-8
13

JBL MS-8 Specifications

General

Amplifier class	-
Frequency range	20 - 20000 Hz
Audio output channels	5.1 channels
Peak power per channel	30 W
Signal-to-Noise Ratio (SNR)	85 dB
Total Harmonic Distortion (THD)	- %
RMS power output per channel (4 Ohm)	18 W
DC-in jack	Yes
Purpose	Car
Product color	Black, White
Connectivity technology	Wired
Built-in display	No
