JBL MS-8 Service Manual

eCTiONs
NOTE: You can power some of the system's speakers by the MS-8's ampliers and some by outboard
ampliers, but you should use only one connection type per output. For example, output channel 1 may use the
MS-8's amplifer OR an outboard amplier, but not both. Be sure to use the chart above to note which speakers
are connected to which MS-8 channels.
+ –
+
+
–
–
+
+
+
–
–
– + –

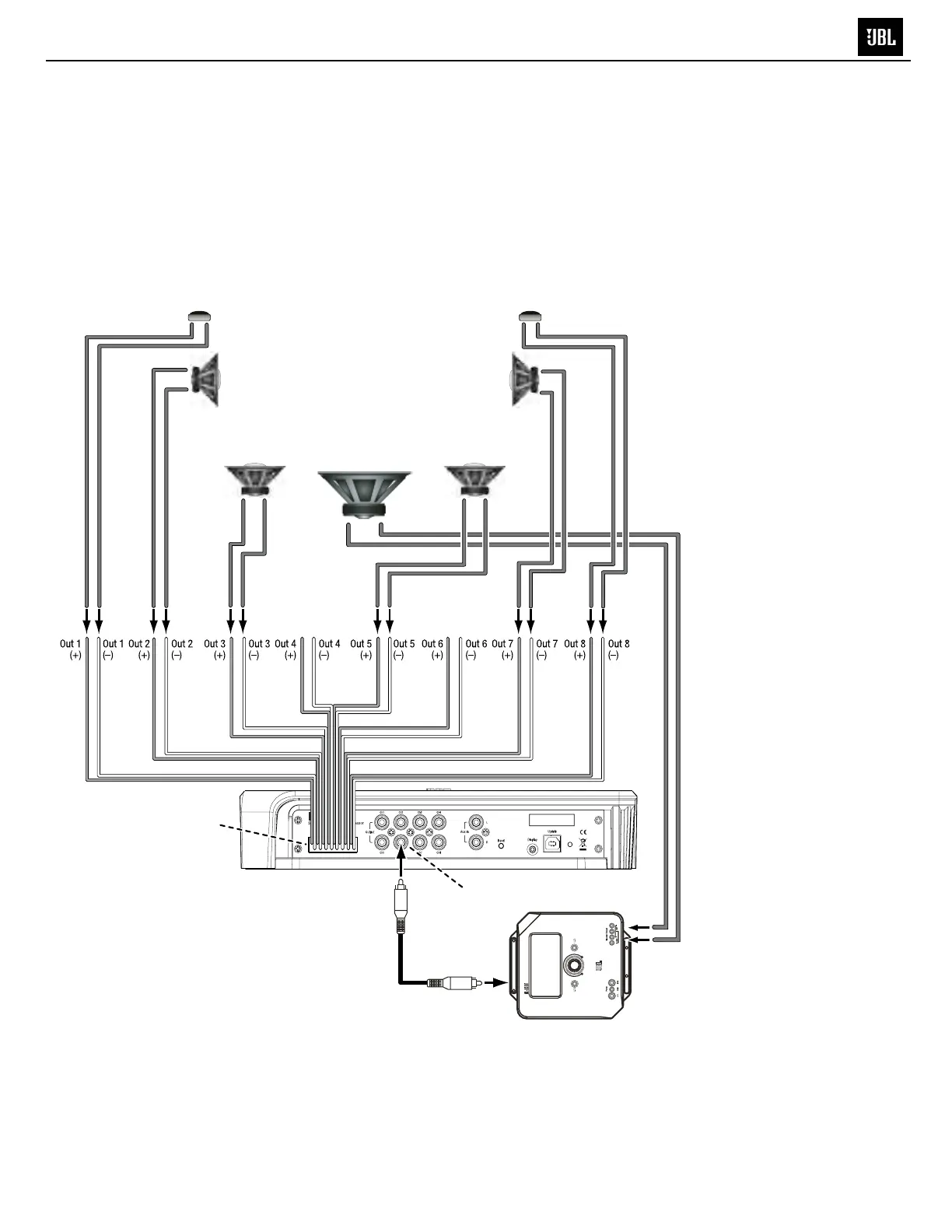

Left front
(Tweeter)
Left front
(midrange)
Left rear
(coaxial)
Not
used
Speaker output
wiring harness
Subwoofer
amplifier
Line output
#6
Not
used
Right rear
(coaxial)
Subwoofer
Right front
(midrange)
Right front
(Tweeter)
Vehicle
Speaker
System
13
CONNECTIONS
MS-8
12

JBL MS-8 Specifications

General

Amplifier class	-
Frequency range	20 - 20000 Hz
Audio output channels	5.1 channels
Peak power per channel	30 W
Signal-to-Noise Ratio (SNR)	85 dB
Total Harmonic Distortion (THD)	- %
RMS power output per channel (4 Ohm)	18 W
DC-in jack	Yes
Purpose	Car
Product color	Black, White
Connectivity technology	Wired
Built-in display	No
