Item Part Number Description Qty

1 W-DB-800010015 Lens 1

2 W-SG-0002-0111 Top cover 1

3 W-MK-0009-0101 Input Board Plate 1

4 W-SR-MS80-0425 SUB Heatsink A 1

5 W-ZA-B00120100 IC Bracket A 2

6 W-MK-0010-0101 Output Board 1

7 W-LS1AM0300607 Screw PM3*6 8

8 W-XG-0005-0101 Bottom 1

9 W-LS1BM0040081 Screw BM4*8 3

10 W-LS1AY0401201 Screw PM4*12 4

11 W-JD-B40600515 Thermally conductive Pad 3

12 W-ZA-H00010101 Bracket 2

13 W-LS1KM0040071 Screw KM4*7 8

14 W-LS1AJ0301001 Screw PA3*10 9

15 W-ZA-B00130100 IC Bracket B 1

16 W-SR-MS80-0325 SUB Heatsink B 1

17 W-LS1BE0301607 Screw BM3*16 6

18 W-LS1AY0300601 Screw PM3*6 9

19 W-ZL-10002A-35 LED Spacer 1

20 Main PCB 1

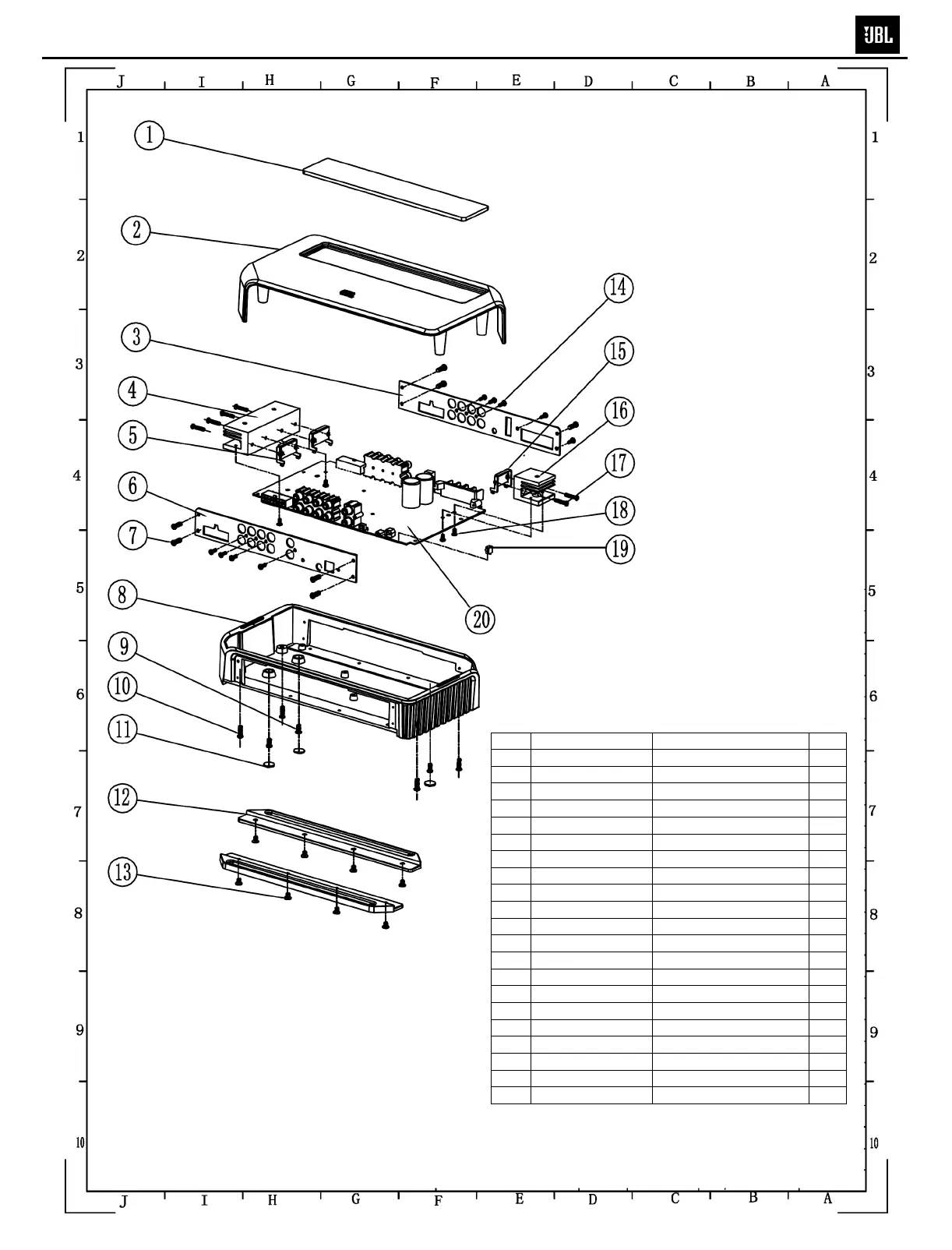

MS-8 EXPLODED VIEW

NOT SHOWN W-1601-253G-01FuseDIP 25A/32V LittleFuse

MS-8
