64Mb: x32 SDRAM

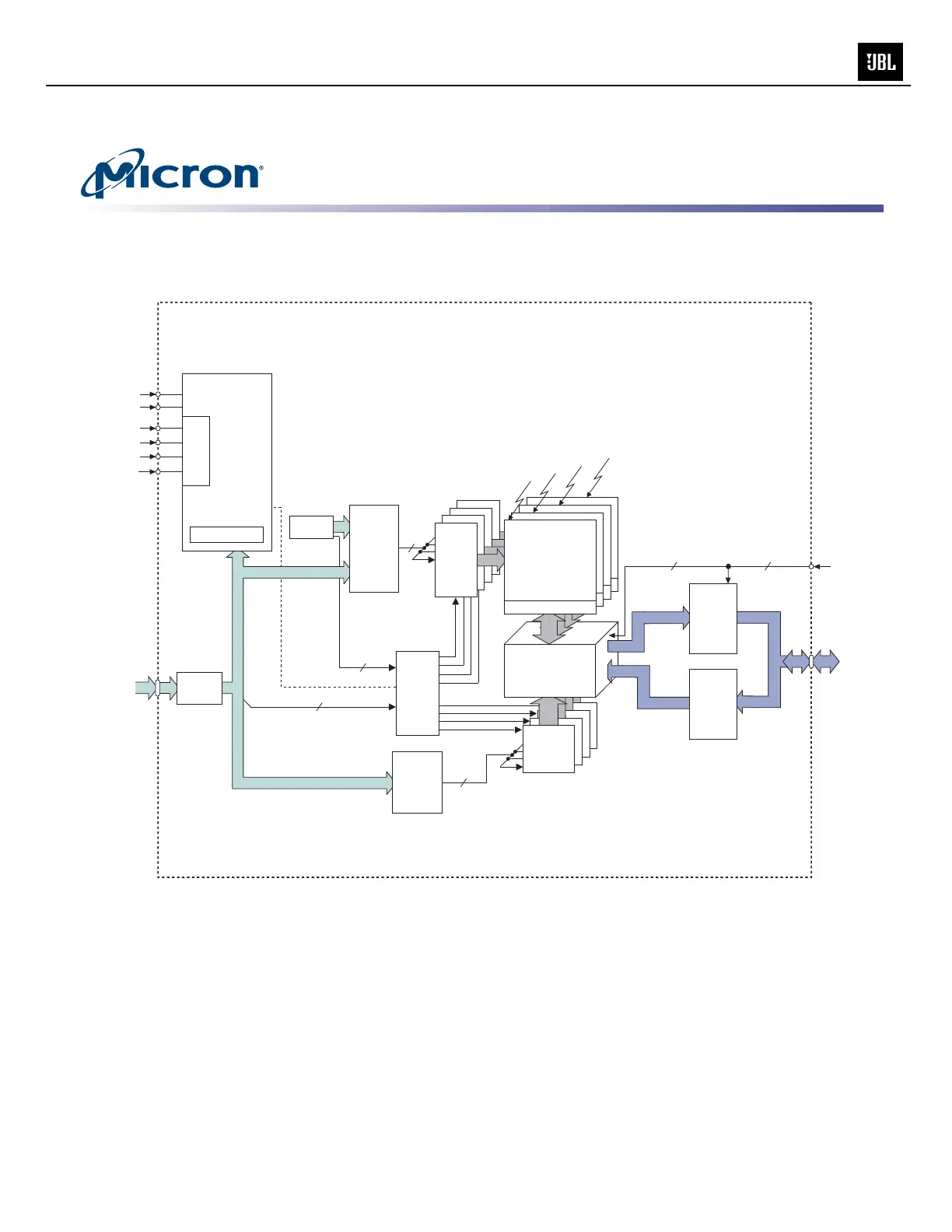

Functional Block Diagram
Functional Block Diagram
Figure 1: 2 Meg x 32 SDRAM
11
RAS#
CAS#
CLK
CS#
WE#
CKE
8
A0–A10,
BA0, BA1
DQM0–
DQM3
13
256
(x32)
8192
I/O GATING
DQM MASK LOGIC
READ DATA LATCH
WRITE DRIVERS
COLUMN
DECODER
BANK0
MEMORY
ARRAY
(2,048 x 256 x 32)
BANK 0
ROW-
ADDRESS
LATCH
&
DECODER
2048
SENSE AMPLIFIERS
BANK
CONTROL
LOGIC
DQ0–
DQ31
32
32
DATA
INPUT
REGISTER
DATA
OUTPUT
REGISTER
32
BANK 1
BANK 0
BANK 2
BANK 3
11
8
2
4 4
2
REFRESH
COUNTER
11
11
MODE REGISTER
CONTROL
LOGIC
COMMAND
DECODE
ROW-
ADDRESS
MUX
ADDRESS
REGISTER
COLUMN-
ADDRESS
COUNTER/
LATCH
MS-8
38

JBL MS-8 Specifications

General

Amplifier class	-
Frequency range	20 - 20000 Hz
Audio output channels	5.1 channels
Peak power per channel	30 W
Signal-to-Noise Ratio (SNR)	85 dB
Total Harmonic Distortion (THD)	- %
RMS power output per channel (4 Ohm)	18 W
DC-in jack	Yes
Purpose	Car
Product color	Black, White
Connectivity technology	Wired
Built-in display	No
