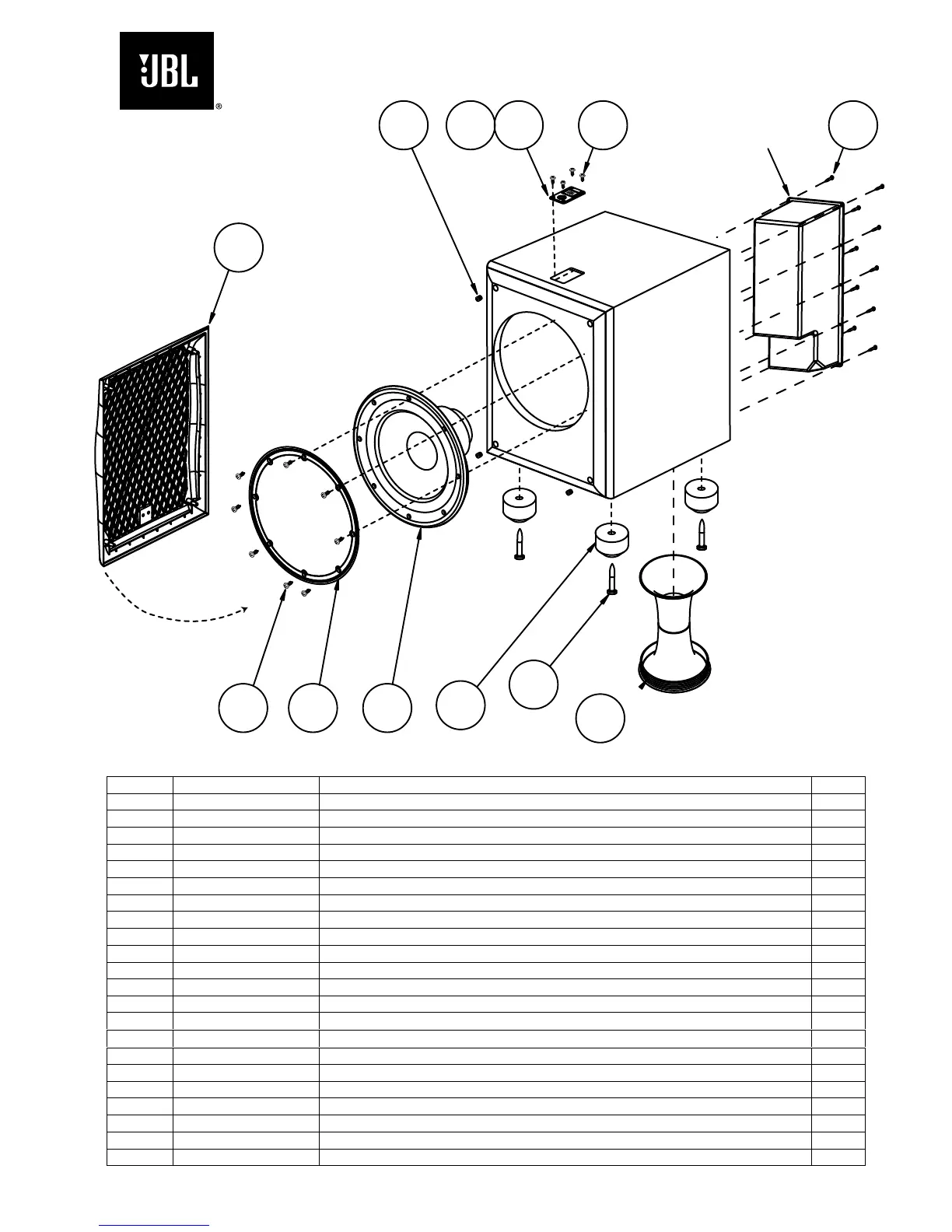

JBL Northridge E-Series E150P - E150 P Exploded View

Ref# Part Number Description Qty
1 350883-001 MANUAL, OWNER-E150P/E250P 1
2 350884-002 CARTON,MASTER-E150P (BEECH MODEL) 1
350884-001 CARTON,MASTER-E150P (BLACK MODEL) 1
350884-003 CARTON,MASTER-E150P (CHERRY MODEL) 1
3 350885-001 PAD,END,TOP-E150P 1
4 350885-002 PAD,END,BOT-E150P 1
5 338381-001 WARRANTY CARD,1/5YR,JBL 1
6 351348-001 PLATE,LED/LOGO-E150P/E250P 1
7 338125-002 ASY,LED-E150P/E250P 1
8 336486-001 ASY,FOOT,PLSTC- E150P 4
9 763-31110-40 SCREW, 8 X 2 1/2,TR,PH,PB,BLK ZINC,LCS (FOOT) 4
10 908302-012 SCREW, PB,HXS,#6x.75,ZINC (LOGO PLATE) 4
11 903802-016 SCREW, PB,HXS,#8x1",ZINC (WOOFER) 8
12 338127-002
ASY, WOOFER,10" DCR 5.8 Ω
1
13 336804-001 ASY, PORT TUBE 1
14 351219-001 ASY, GRILLE, BLK, FRNT 1
15 333249-003 CUP,GRILLE,TITANIUM, (BEECH MODEL) (CHERRY MODEL) 4
333249-001 CUP,GRILLE (BLACK MODEL) 4
16 351242-001 RING,TRIM,10"-E150P 1
17 903401-012 SCREW, 6 X 3/4,PAN,PH,PB,BLK ZINC,LCS (AMPLIFIER) 10
13
12
16
15
7
6
10
17
14
11
9
8
Amplifier – Not for Sale
E150P
Exploded View
11
