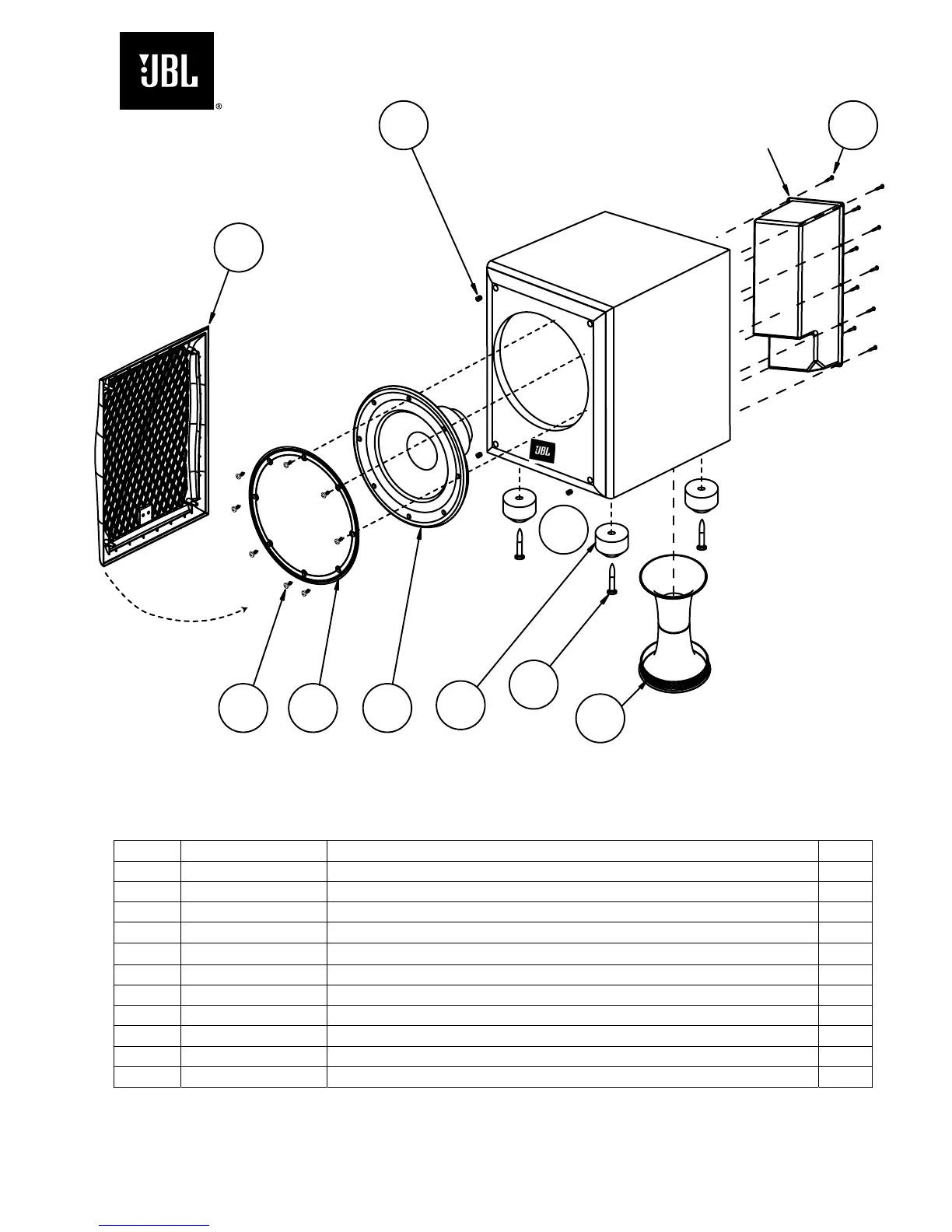

JBL Northridge E-Series E150P - P10 SW Exploded View

Amplifier – Not for Sale
Ref# Part Number Description Qty
1 336486-001 ASY,FOOT,PLSTC 4
2 883-31110-40 SCREW, 8 X 2 1/2,TR,PH,PB,BLK ZINC,LCS (FOOT) 4
3 903802-016 SCREW, PB,HXS,#8x1",ZINC (WOOFER) 8
4 338127-002
ASY, WOOFER,10" DCR 5.8 Ω
1
5 336804-001 ASY, PORT TUBE 1
6 351219-004 ASY, GRILLE, BLK, FRNT 1
7 333249-001 CUP,GRILLE 4
8 351242-001 RING,TRIM,10" 1
9 882-41110-12 SCREW, 6 X 3/4,PAN,PH,PB,BLK ZINC,LCS (AMPLIFIER) 10
10 361872-001 JBL LOGO 1
1
2
3
4
5
6
7
8
9
10
P10SW EXPLODED VIEW
