Section 1 General Information
9803/9330
Section 1
4-6
Issue 1
Operation

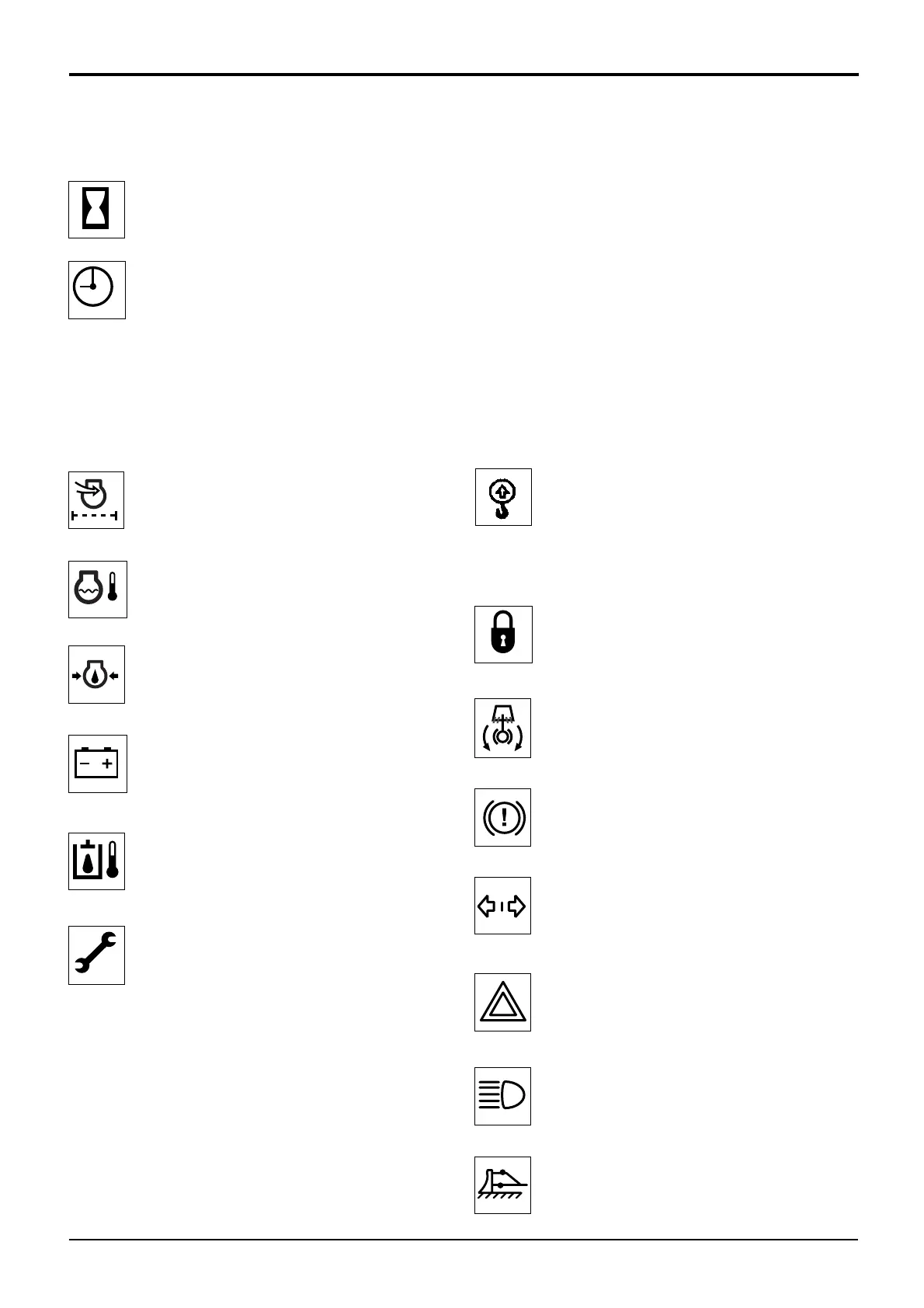

LCD Display Icons
Indication Lamps
EMS Panel (cont’d)
High Engine Coolant Temperature (WARNING
LAMP)
Illuminates if the engine coolant temperature
rises too high.
Low Engine Oil Pressure (WARNING LAMP)
Illuminates if the engine oil pressure drops too
far. The light should go out when the engine is
started.
Charging System Fault (WARNING LAMP)
Illuminates when the battery voltage is low.
Engine Air Filter Blocked (WARNING LAMP)
Illuminates if the engine air filter is blocked.
Servo Isolator ON (Status Lamp)
Illuminates when the machine’s servo isolator is
engaged. Lower the lock lever or press the
isolator switch to disengage the isolator.
Slew Lock ON (Status Lamp)
Illuminates when the machine slew lock is
engaged. Press the slew lock switch to
disengage the slew lock.
High Hydraulic Oil Temperature (WARNING
LAMP)
Illuminates if the hydraulic fluid temperature rises
too high.
Service Required (Status Lamp)
If illuminated contact your JCB dealer. Note that
this will first light at 20 hours before the next
service interval is due and will be accompanied
by the ‘SERVICE RQD’ message on the monitor.
Pressing ‘ACK’ will cancel the message but the
LED will stay illuminated. If the service is not
carried out within 20 hours of the specified
interval, you can still cancel the message but the
LED will flash until the service has been
performed.
Lifting Overload (Optional) (Status Lamp)
Illuminates if the safe working load of the
machine is exceeded (if this feature is activated
on the Facia Panel by means of the Overload
Caution button). This feature is only available
when Hose Burst Check Valves are installed.
Dozer Mode Indicator (Status Lamp)
Not used.
Main Beam Indicator (Status Lamp)
Not used.
Hazard Warning Lamps Indicator (Status Lamp)
Not used.
Direction Indicator (Status Lamp)
Not used.
Brake Pressure Low (WARNING LAMP)
Not used.
!
CAUTION
All the warning lights should go out when the engine is
started. Rectify any faults immediately.
4-2-1-4
Indicates that machine hours are displayed top
left of the display. This icon flashes while the
engine is running.
Indicates the time.
