Maintenance
Fuel System
106 9831/7750-1 106
6. Replace the pre-filter. Refer to Figure 60.
7. Make sure that the filter is fitted the correct way round. There may be an arrow on the filter body to indicate
the direction of flow.
8. Tighten the pipe clips. Do not overtighten the pipe clips.
9. Make sure that any spilled fuel is cleaned up.
10. Bleed the fuel system.
Refer to: Bleed (Page 103).
11. Run the engine and make sure that there are no fuel leaks.

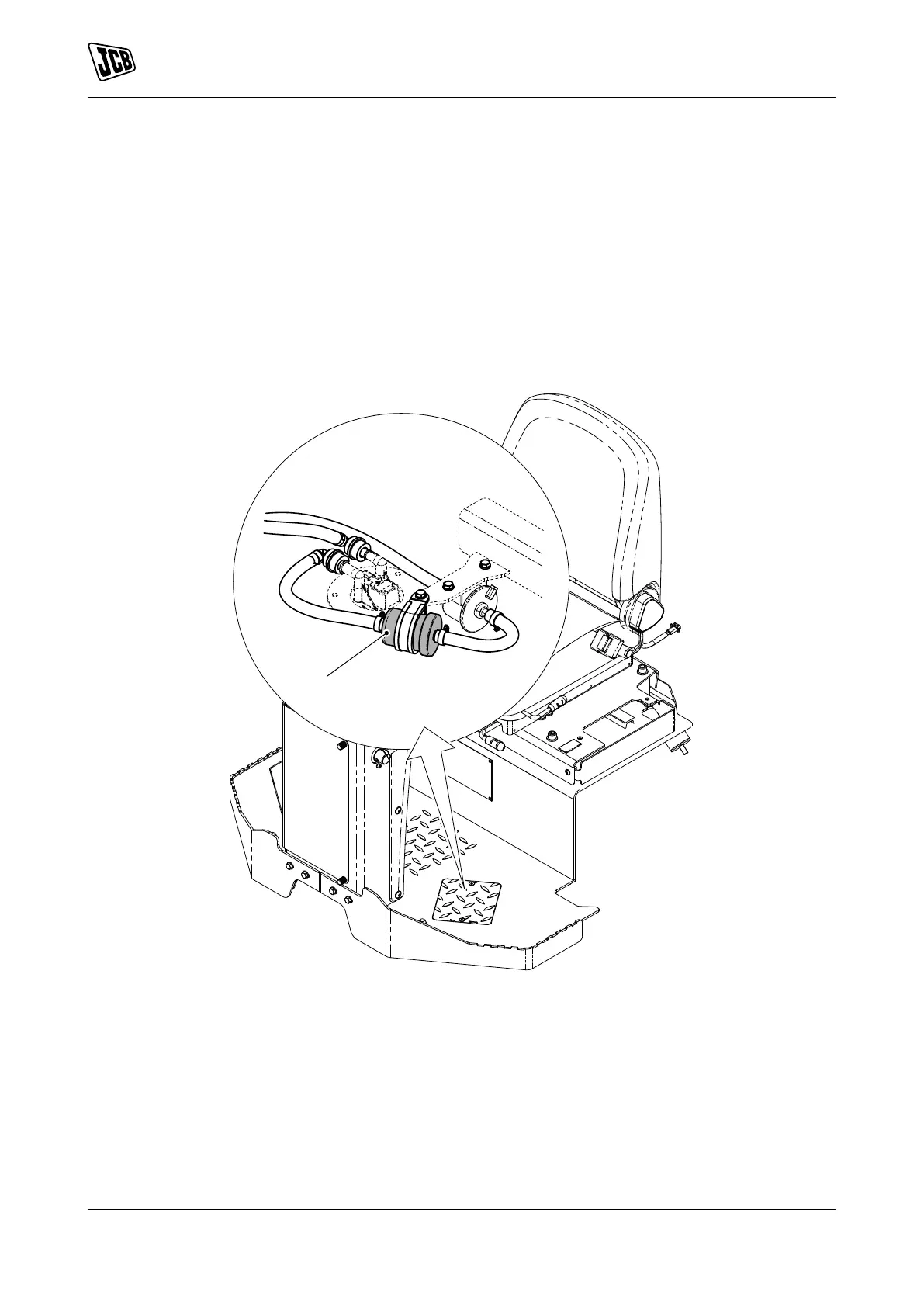

Figure 60.
A Pre-filter
Fuel Filter
Replace
1. Make the machine safe.
Refer to: Maintenance Positions (Page 87).
2. Open the engine cover to get access to the fuel filter.
3. Clean the outside of the filter housing and around the filter head.
