Operation
Slopes
49 9831/7750-1 49
Slopes
General
WARNING Make sure that you have been trained and are familiar with the use of machines on slopes, and
understand the adverse affects that slopes and site conditions can have on stability. Never use the machine
on a slope if you do not understand the recommended practices for the use of machines in such applications.
WARNING If the machine starts to roll over, you can be crushed if you try to leave the machine. If the
machine starts to roll over, do not try and jump from the machine. Stay in the machine, with your seat belt
fastened.
Definition of Gradeability
The gradeability of a roller is the gradient angle of a firm, hard and level roadway on which a roller of standard
specification, with it's longitudinal axis pointing in the incline direction, can start in the forward and reverse
directions by means of it's own propulsion and then travel further for a short period.
Definition of Permissible Gradient
The permissible gradient when the machine is being used as intended is that gradient of a firm, hard and level
roadway on which the roller with its longitudinal axis pointing in the incline direction can be accelerated or
braked without any danger and can be reliably held at standstill by means of a parking brake which can be
actuated from the operator's stand. It may, however, be limited further by the permissible longitudinal inclination.
Longitudinal Slopes
This slope angle has been measured on a hard flat surface with the machine stationary, the steering in the
straight ahead position, with all tanks full and without vibration.
Loose ground, steering of the machine, vibration on, machine speed and changes to the centre of gravity could
cause the machine to tip at smaller slope angles than those specified here.

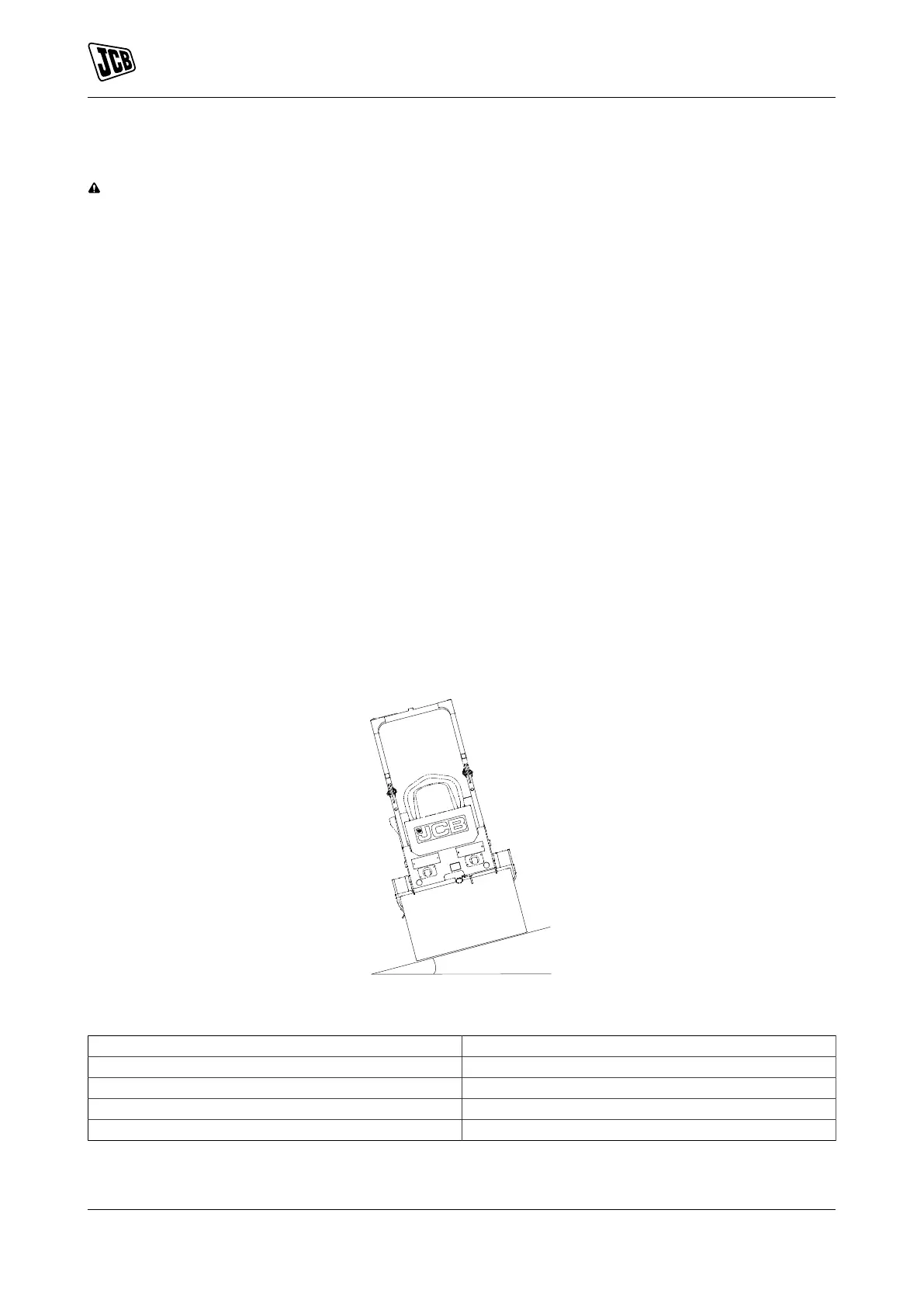

Figure 26.
A Maximum Slope Angle
Table 6.
Model Maximum Slope Angle
CT260-100 18 °
CT260-120 22 °
CT160-80 16 °
CT160-100 20 °
