Technical Data
Electrical System
142 9831/7750-1 142
Electrical System
General
Table 33.
Item Specification
Battery voltage/system voltage 12 V
Battery 62Ah and 610 CCA
Battery dimension (length x width x height) 240 mm x 175 mm x 175 mm
Fuses
Primary Fuses

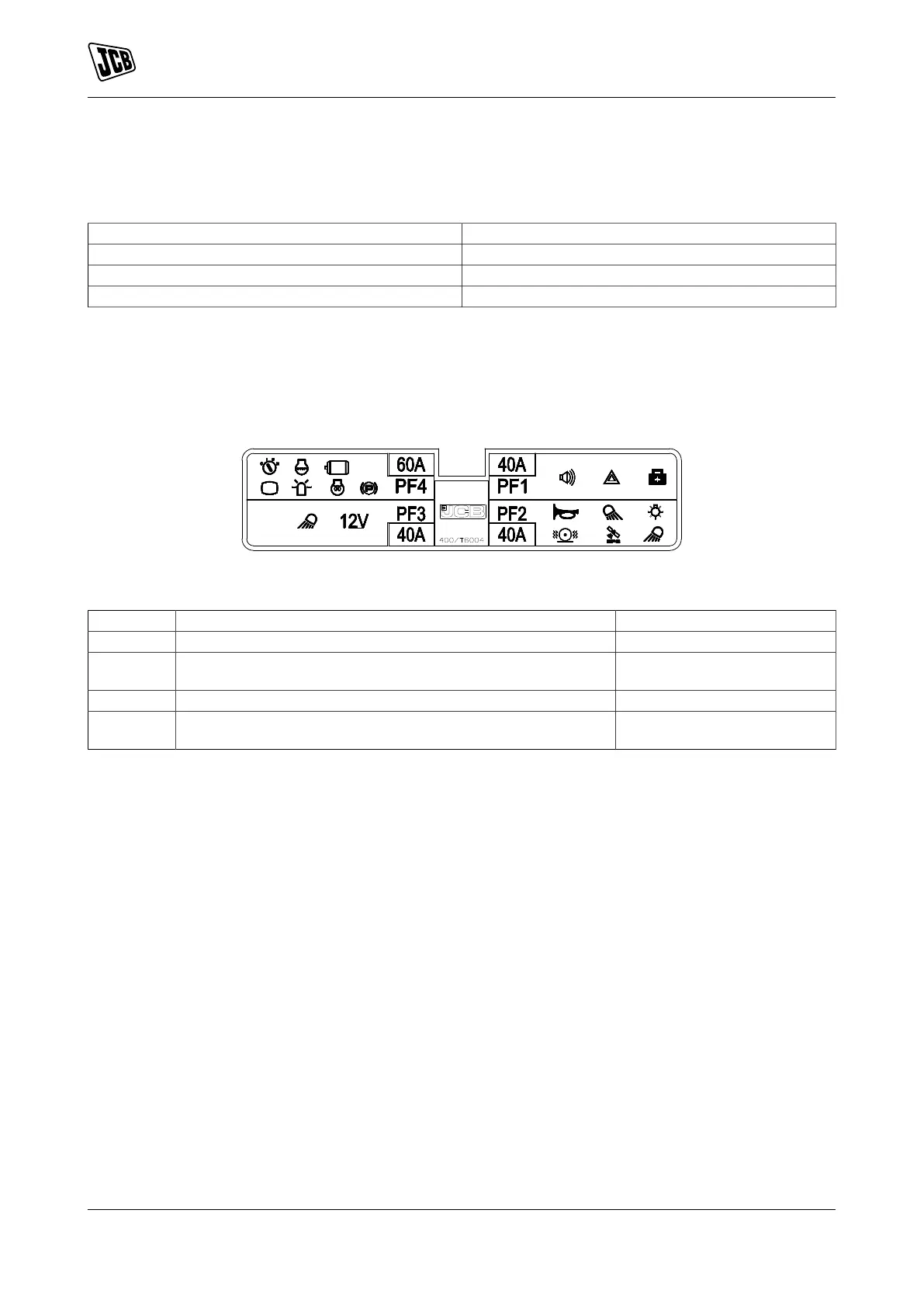

Figure 79.
Table 34.
Fuse No. Circuits Protected Rating
PF1 Buzzer, Hazard, and Diagnostic 40 A
PF2 Horn, Front and rear worklights, Road light, Vibration, and
Livelink
40 A
PF3 Front worklight and Power socket 40 A
PF4 Alternator, Ignition relay, E-stop, Instrument panel, Beacon,
Parkbrake, and Pre-heat
60 A
