Drum
114 9831/7750-1 114
Figure 64.
A
B
C
E
E
F
E
E
F
D
D
F
E
E

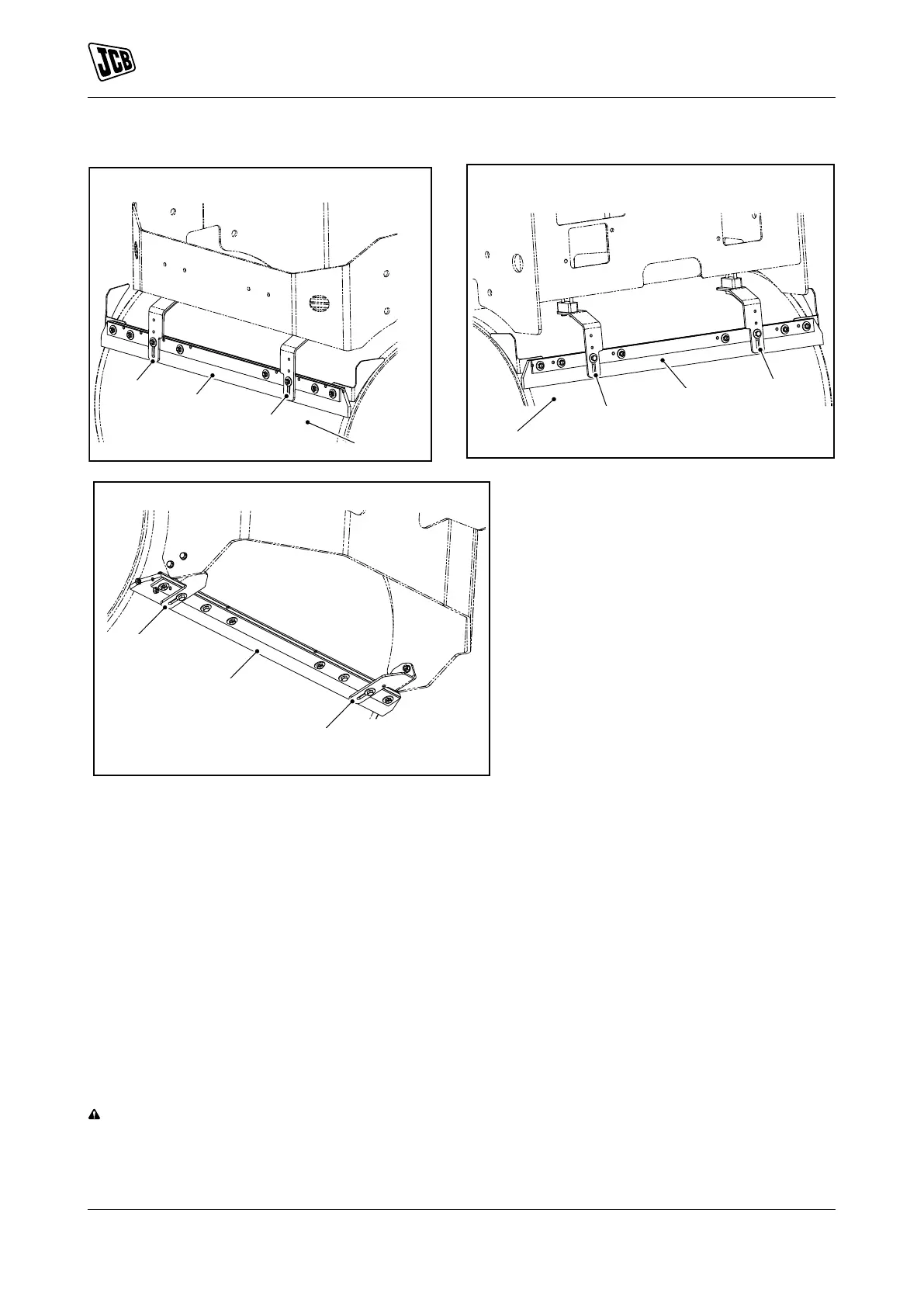

A Front side scraper B Rear side scraper
C Bottom side scraper D Drum
E Fasteners F Scraper
Clean
Clean
Make the machine safe. Refer to: Maintenance Positions (Page 87).
Remove the dirt and debris with the clean water.
Sprinkler System
Water Tank
Check (Level)
CAUTION Antifreeze can be harmful. Obey the manufacturer's instructions when handling full strength or
diluted antifreeze.
The sprinkler water tank level indicator gauge and filler cap are located at the right hand side of the operator
seat. Make sure to use the antifreeze in the water tank while operating the machine in extremely cold climate.
