Operation
Working with the Drum
52 9831/7750-1 52

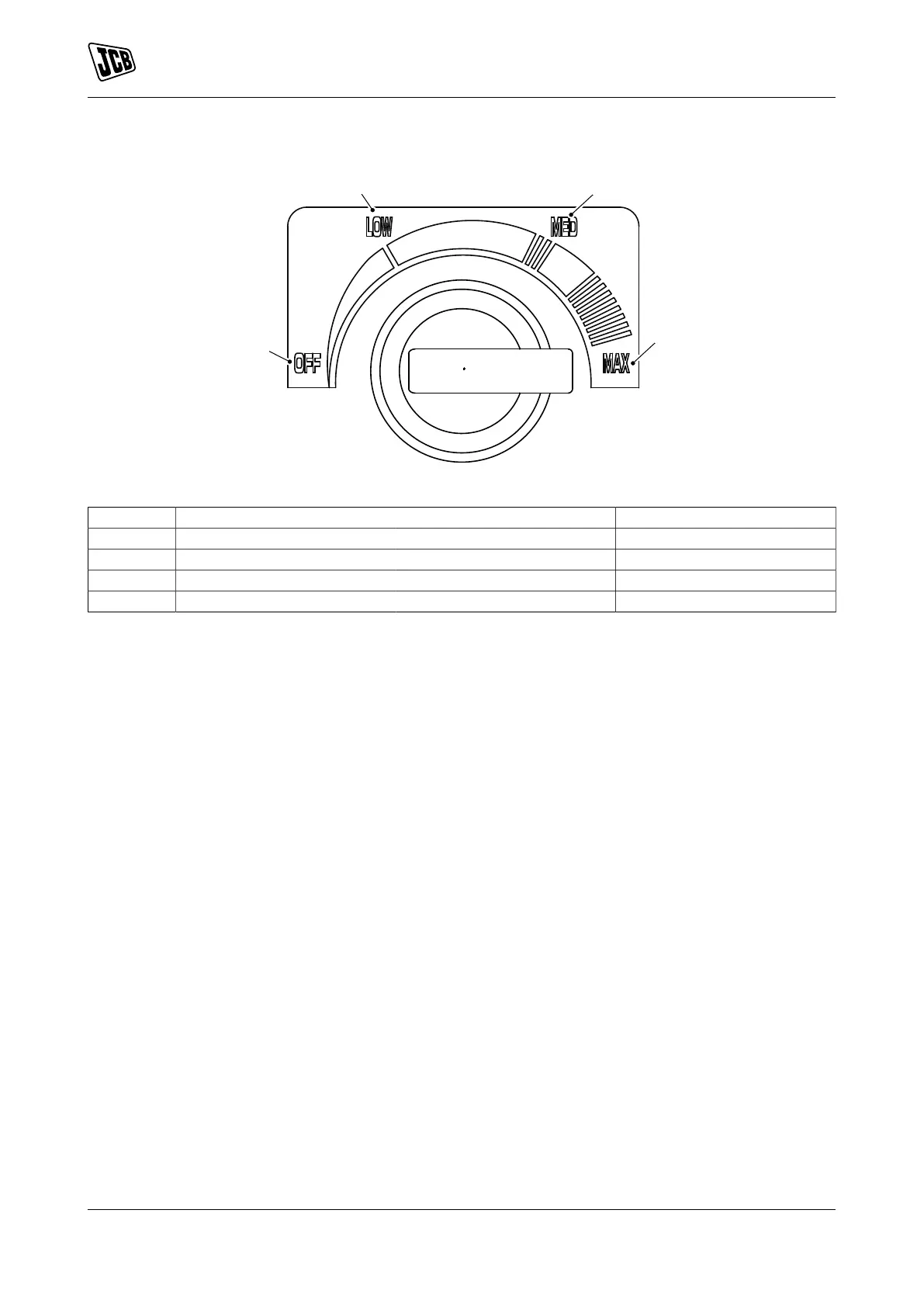

Figure 29.
Table 7.
Item Switch Position On Time (sec) Off Time (sec)
A Off position 0 % 100 %
B Low position 33 % ( 4 s) 67 % ( 8 s)
C Medium position 50 % ( 6 s) 50 % ( 6 s)
D Maximum position 100 % 0 %
Operating the Sprinklers and Scrapers
1. Make sure that ignition switch is turn to on position.
2. Set the sprinkler control switch to the required position. Refer to Figure 29.
3. To stop the sprinklers, set the sprinkler control switch to the off position.
4. When rolling asphalt the scrapers and sprinklers should be used simultaneously.
5. When rolling earth the scrapers and sprinklers should not be used.
