Operation
Lifting the Machine
61
9831/7750-1
61

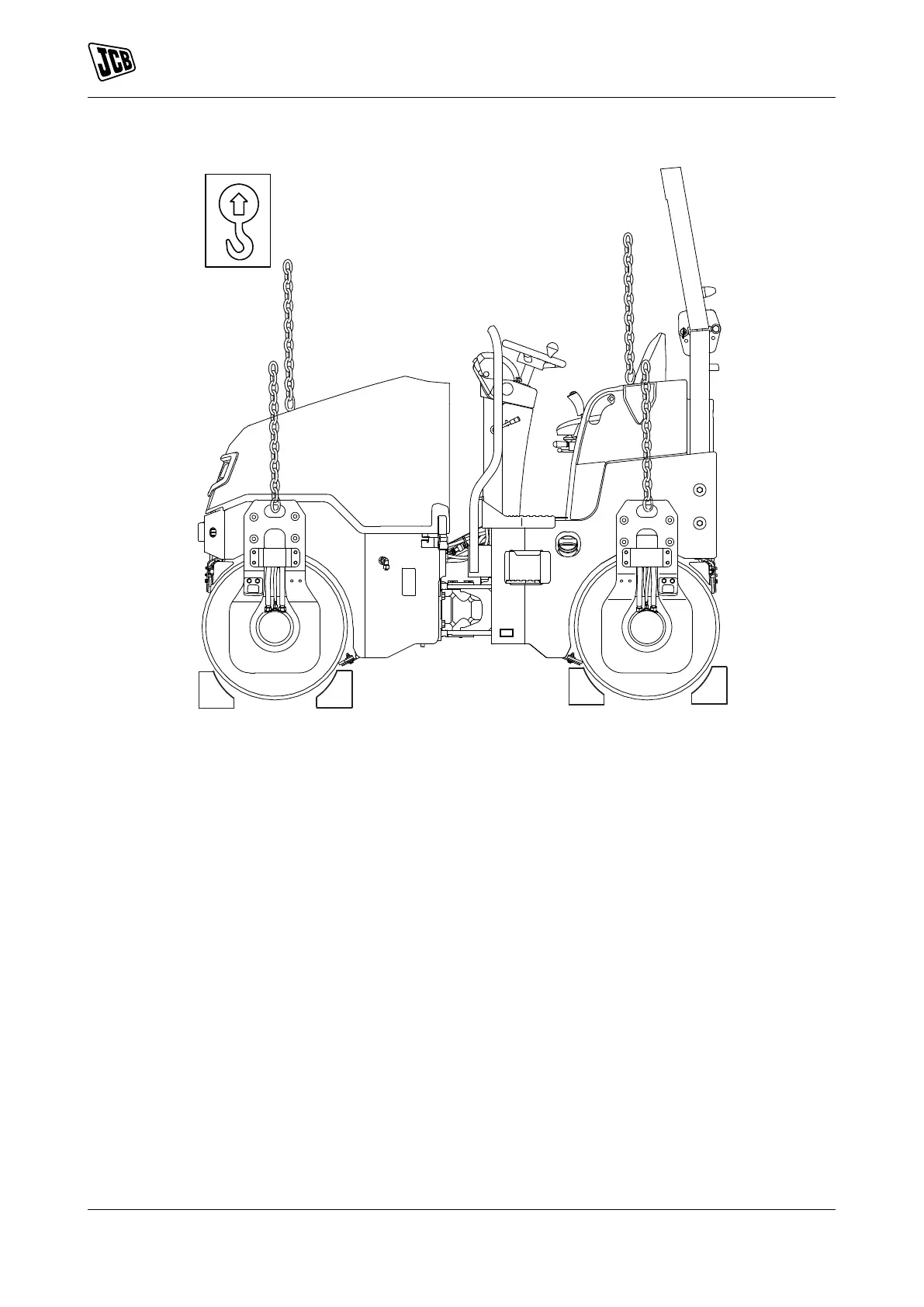

Figure 40.
A
A
Lifting label
9.
The correct lift-point position is identified on the machine by a label.
10.
Lift the
machine
slightly
to
check
the
balance
of
the machine
and
the
installation
of
the
lifting
equipment.
If the machine does not
lift horizontally
, adjust the length of the slings. Proceed slowly
and evenly until the
lift is complete.
1
1.
Keep the machine horizontal during the lift.
70
72
