jcb JS210 Service Manual

20 - 3
Section E
Hydraulics
9803/6400
Section E
20 - 3
Issue 3*

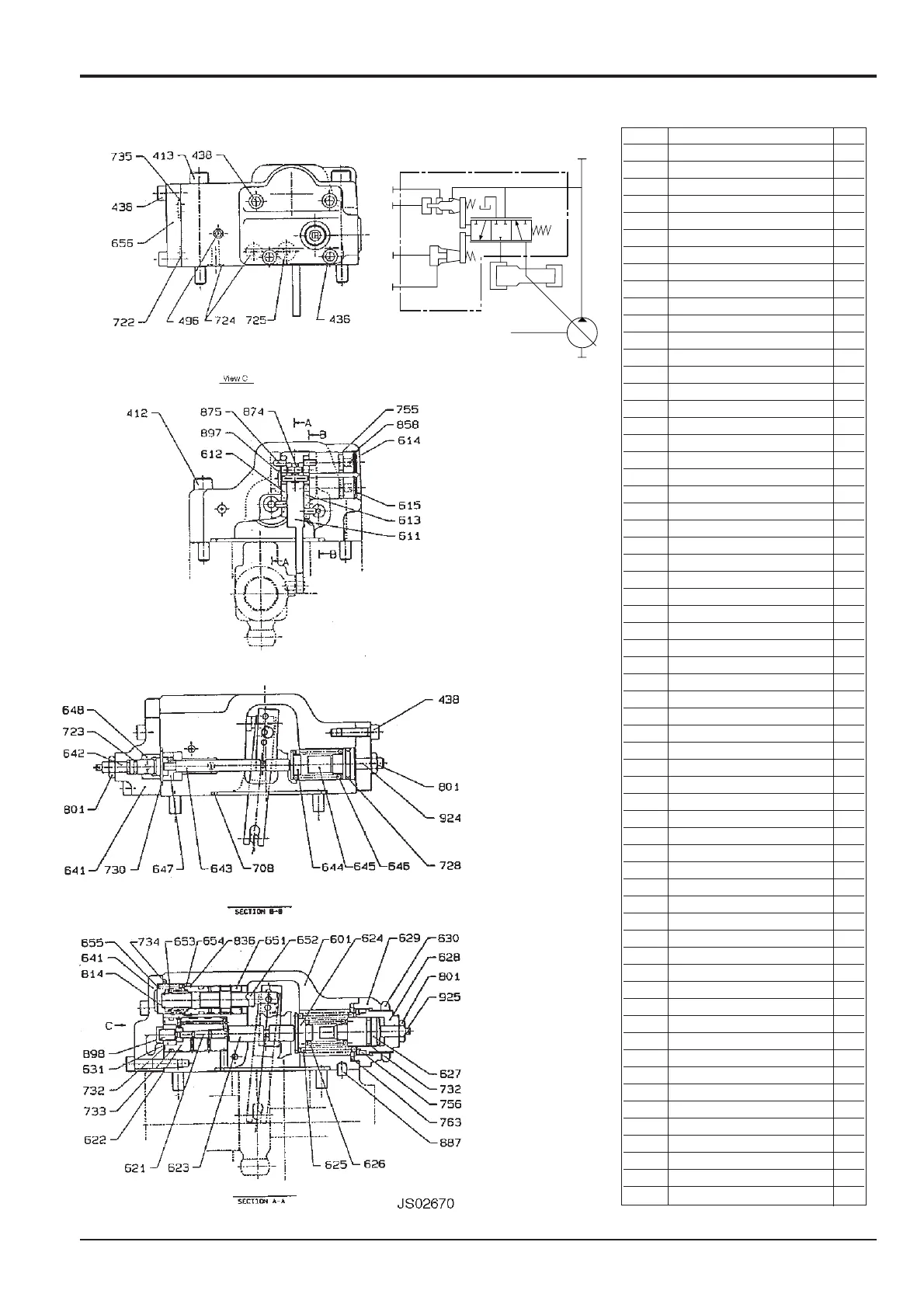

Regulator JS200. JS240
D
*
KR3G-9C12
P
P
P
P
B
A
JS0
Section Part Name Q’ty
925 Adjust screw 1
924 Hexagonal socket lock screw 1
898 Pin 1
897 Pin 1
887 Pin 1
875 Pin 4
874 Pin 1
858 Locking ring 2
836 Lock pin 1
814 Stop ring 1
801 Hexagon nut 3
763 O-ring 1
756 O-ring 1
755 O-ring 2
735 O-ring 1
734 O-ring 1
733 O-ring 1
732 O-ring 2
730 O-ring 1
728 O-ring 1
725 O-ring 1
724 O-ring 9
723 O-ring 1
722 O-ring 3
703 O-ring 1
856 Blind cover 1
655 Set spring 1
854 Return spring 1
853 Spring base 1
852 Spool 1
851 Sleeve 1
848 Piston (QMC) 1
647 Stopper 1
646 Pilot spring 1
645 Adjust ring (Q) 1
644 Spring base (Q) 1
643 Pilot piston 1
642 Adjust screw (QMC) 1
641 Pilot cover 1
631 Pf Sleeve 1
630 Lock nut 1
629 Cover (C) 1
628 Adjust screw (C) 1
627 Adjust ring (C) 1
626 Inner spring 1
625 Outer spring 1
624 Spring base (C) 1
623 Compen rod 1
622 Piston case 1
621 Compen piston 1
615 Adjust plug 1
614 Fulcrum plug 1
613 Lever (2) 1
612 Lever (1) 11
611 Feedback lever
601 Casing 1
496 - 5
438 Hexagonal socket head bolt 10
436 Hexagon socket head bolt 2
413 Hexagon socket head bolt 2
412 Hexagon socket head bolt 2
- Regulator sub 1
