jcb JS210 Service Manual

4 - 4
Attachments (continued)
Bucket Ram Installations JS200, JS200LC
Dipper and Dipper Link Installation JS200,
JS200LC
Section B
Body & Framework
9803/6400
Section B
4 - 4
Issue 2*

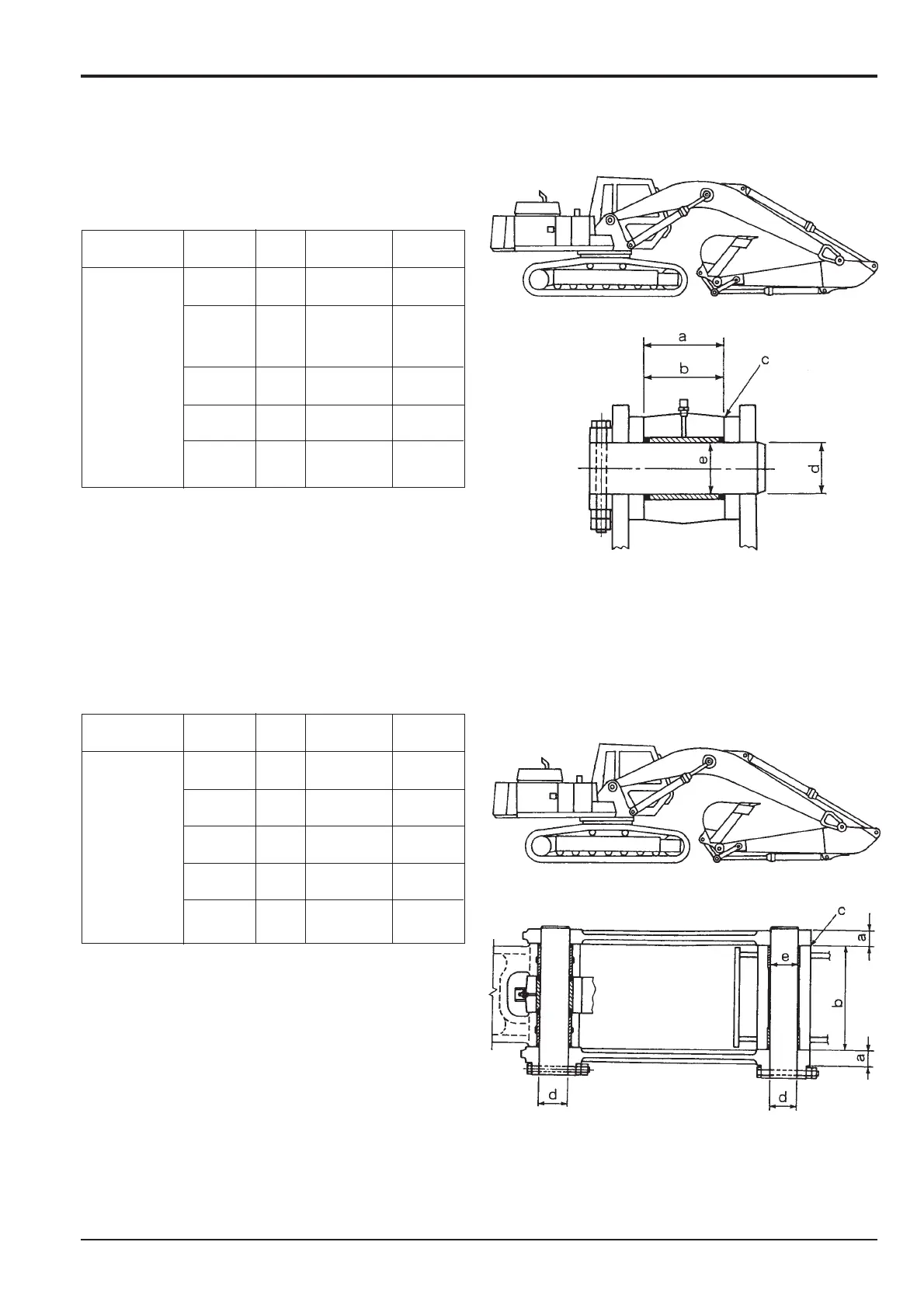

Maintenance Specifications
*
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
7. Bucket Ram Dipper a 101 107
installation
Bucket
ram b 100 98
(eye end)
Clearance c 0.5-3.0
Pin d ø75 ø74
Bushing e ø75 ø76.5
(bucket ram)
Shim for
adjustment
KRV1176
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
8. Dipper and Dipper Link a 46 43
Dipper
link installation
Dipper b 280 278
Clearance c 1.0-1.5
Pin d ø75 ø74
Bushing e ø75 ø76.5
(Dipper)
Shim for
adjustment
KHV0169
