7 - 3
Checking the Shoe Plate
1. Prepare the Machine
a. Position the machine on level ground. Run it
backwards and forwards several times. Stop after
running it forwards.
b. Stop the engine and remove the starter key.
2. Checking the Shoe Bolts A
Check to see if any are loose or damaged.

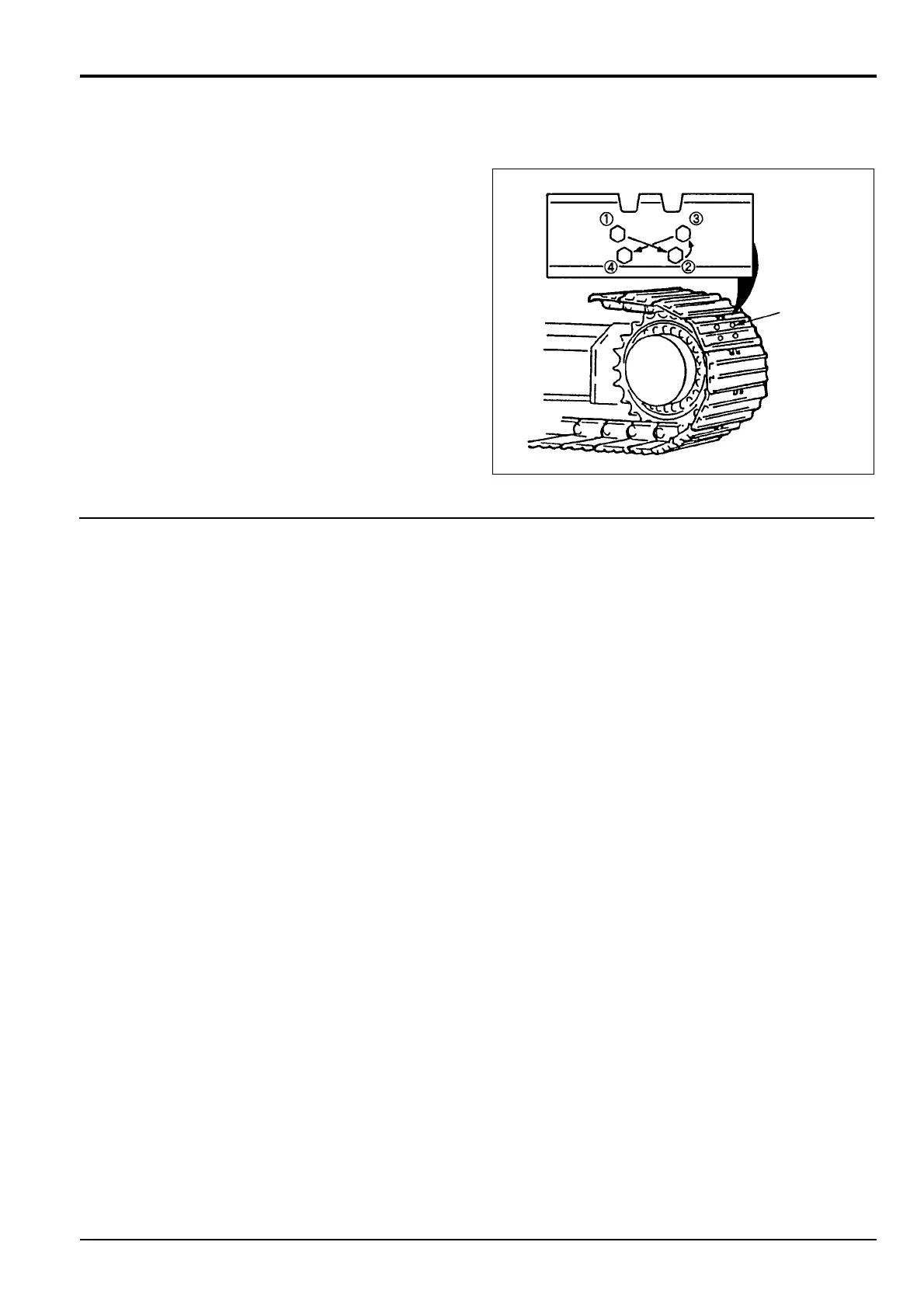

3. Tightening the Shoe Bolts A
Tighten the Shoe bolts A in the sequence shown to the
correct torque. See Bolt Torque Specifications.
Checking the Rollers and Idler Wheels for
Oil Leaks
1. Prepare the Machine
See Checking/Adjusting the Track Tension, step 1.
2. Look for Oil Leaks
Check the top and bottom rollers and the idler wheels for
oil leaks.
!!
CAUTION
Do not run the machine if you discover oil leaks in the
top or bottom rollers or idler wheels. Failure to rectify
such leaks could cause damage to the machine.
8-3-4-6/1
3. Lower the Track
See Checking/Adjusting the Track Tension, step 4.
4. Repeat for the Opposite Track
Slew the boom to the other side and repeat steps 1 to 3
above.
Section 3
Routine Maintenance
9803/6400
Section 3
7 - 3
Issue 2*
Tracks and Running Gear (continued)
